Hotel Fire-Rated Door

The hotel series is a single-leaf fire door built for guest floors, tested and marked at 20, 45, 60 and 90 minutes.

HOTEL FIRE DOOR SERIES · application scenes

Fire doors for guest floors

A guest-floor door is a working door and a life-safety component in the same panel. This series is drawn as a single-leaf fire door for hotel and apartment openings, where the leaf has to swing shut quietly behind a guest and still hold its rating in a fire. The catalogue marks the series at 20, 45, 60 and 90 minutes. Each unit arrives as a complete set: leaf, frame, closer and ironmongery specified together, so the assembly on site is the assembly that was tested.

The application line reads hotel and apartment, which is where the series is shown across the brochure.

20 / 45 / 60 / 90 minCatalogue fire ratings

B1 + honeycombFlame-retardant leaf build

5 standardsFire test compliance listed

STC 28~45 dBCatalogue sound rating, soundproof model

Key features

Four things it brings to the opening

01Single-leaf fire doorThe series is drawn as a single-leaf fire door for hotel and apartment openings, with the leaf, frame and ironmongery specified as one set.

02B1 flame-retardant leaf with a honeycomb coreBehind the face the catalogue describes a B1 flame-retardant board over a honeycomb core, a light sandwich that keeps a wide leaf straight.

03Fire-certified hardwareA concealed closer, a fire-certified viewer and a fire-certified electronic lock sit on the standard schedule with heavy-duty hinges and a latch.

04Accredited fire certificationCompliance is listed to AS 1905.1:2015, AS 1530.4:2014, EN 1634-1:2014+A1:2018 and CAN/ULCS104 with UL listing and the Intertek, CE, BS, IAS, FSC and HKAS marks.

Specification

The numbers, as published.

Values below are the published specification of the Hotel Fire-Rated Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Door type: Single-leaf fire door, per catalogue section drawings
Fire rating: 20 / 45 / 60 / 90 min, catalogue test labels
Leaf: Wooden leaf · laminate / HPL / wooden veneer
Frame: Timber frame standard · steel frame with wooden leaf on one model
Core: B1 flame-retardant board with a honeycomb core
Certification: AS 1905.1:2015 · AS 1530.4:2014 · EN 1634-1:2014+A1:2018 · CAN/ULCS104 · UL Listed
Ironmongery: Concealed closer · fire-certified viewer · fire-certified electronic lock · hinge · latch · lever
Sealing: Intumescent fireproof strip with an automatic door bottom
Application: Hotel guest rooms · apartment entries

Request the full dimensional pack

Gallery

More views of the series

Single-leaf hotel fire door with an electronic lock beside a suite bed and side lamp, design rendering — Guest-room fire door with an electronic lock, design rendering

Open wooden hotel fire door looking through to a suite interior with dark joinery, design rendering — Open guest-room fire door onto a suite interior, design rendering

Tall single-leaf hotel fire door with a room-number plate in a laid corridor, design rendering — Guest-room fire door with a room-number plate in a hotel corridor, design rendering

Blue single-leaf fire doors along a hotel corridor with a framed artwork, design rendering — Blue guest-room fire doors along a hotel corridor, design rendering

Configurations

Three ways to build the opening

Single leaf, timber frameThe standard guest-room door across the range, in laminate, HPL or wooden veneer.

Single leaf, steel frameOne model pairs the wooden leaf with a steel frame for openings that carry heavier traffic.

Soundproof buildOne model is drawn as a single-leaf soundproof fire door, listed by the catalogue at STC 28 to 45 dB.

Details

Close-up views

Exploded section of the fire door leaf showing the face skin, honeycomb core and edge band — Sectional build-up: face skin, honeycomb core and edge

Cutaway model of a wooden fire door leaf set into a steel frame with an intumescent edge — Sectional model: wooden leaf set into a steel frame

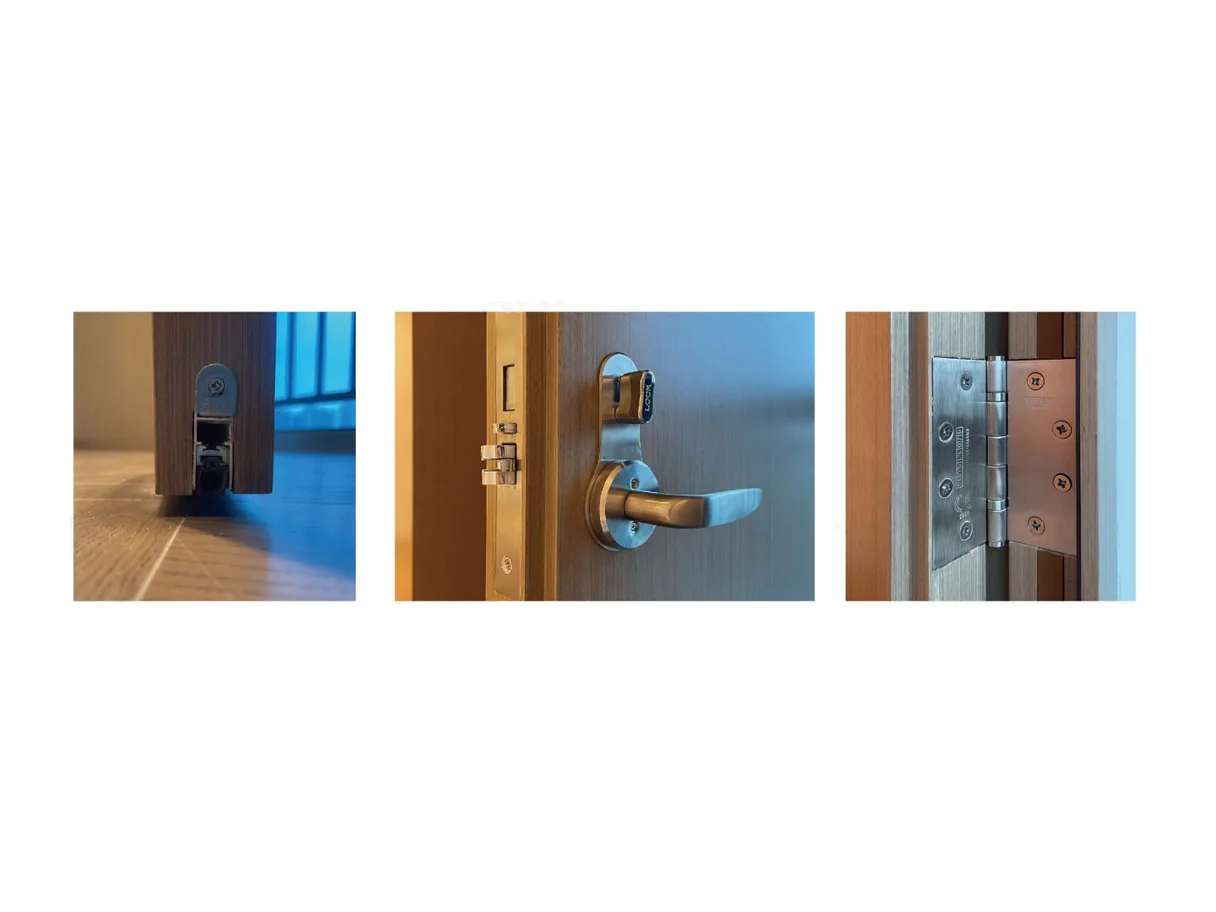

Fire door hardware close-ups showing a hinge, a lock case and a lever handle on timber — Door hardware: hinge, lock and lever set

Colours

Standard finishes

Light oakext / int
Natural oakext / int
Walnutext / int
Dust greyext / int
Charcoalext / int

Catalogue finish names; RAL equivalents and two-tone exterior/interior combinations are confirmed on request against physical swatches.

Leaf construction

The leaf is a wooden build. Finishes run to laminate, HPL and wooden veneer, with a solid-colour laminate and lacquer route offered on part of the range. Behind the face the catalogue names a B1 flame-retardant board over a honeycomb core, a light sandwich that keeps a wide leaf flat. One model in the range takes a steel frame under the same wooden leaf, which suits an opening where the frame has to hold a heavier door-stop load. Pockets for the hinges and the lock are cut in the factory, so the leaf hangs square on site.

Fire certification

The fire performance is carried by accredited test evidence. Compliance is listed to AS 1905.1:2015 and AS 1530.4:2014 for the Australian market, to EN 1634-1:2014+A1:2018 for Europe and to CAN/ULCS104 for North America, with UL listing alongside. The marks shown in the brochure include Intertek, CE, BS, IAS, FSC, HKAS and JAS-ANZ. Fire-rated labels across the frame and the leaf are marked 20, 45, 60 and 90 minutes. The certificate set travels as a scanned pack with the quotation.

Hardware and closing

Hotel traffic falls on the hardware, so the schedule is built around it. The catalogue shows a concealed closer at the head, a fire-certified viewer and a fire-certified electronic lock, with heavy-duty hinges, a latch and a lever handle on the standard list. Smoke and draught control are handled by an intumescent strip set into the frame and a fire-rated door bottom. The leaf hangs on three hinges in the drawings, which keeps a tall guest-room door from dropping at the lock stile.

Project supply

The hotel fire door ships on an OEM basis: private-label packing, project documentation and export-standard containers. A finished sample door and a cut profile go out before a project commits. Send the opening schedule, the wall type and the destination market, and the quotation returns with the dimensional pack, the hardware schedule and the fire certificate set.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

5 finishesRAL matching on request

Documentation

Brochure & spec sheet

The full fire-hotel brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Hotel Fire series project

What is the hotel fire-rated door series?

It is a single-leaf wooden fire door for hotel and apartment openings, marked at 20, 45, 60 and 90 minutes and supplied as a leaf, frame and hardware set.

Which fire ratings are available?

The catalogue marks the series at 20, 45, 60 and 90 minutes across the frame and the leaf. Values are catalogue fire ratings, quoted against the opening.

Which fire standards is it tested to?

AS 1905.1:2015 and AS 1530.4:2014, EN 1634-1:2014+A1:2018 and CAN/ULCS104, with UL listing. The Intertek, CE, BS, IAS, FSC, HKAS and JAS-ANZ marks are shown.

What is the leaf built from?

A wooden leaf in laminate, HPL or wooden veneer, over a B1 flame-retardant board and a honeycomb core. One model pairs the wooden leaf with a steel frame.

Is the door sound rated?

One model is drawn as a single-leaf soundproof fire door. The catalogue lists it under an ASTM-E90 test at STC 28 to 45 dB, a catalogue rating.

Can we get a sample and the certificate pack?

Yes. A finished sample door and a cut profile are available before a project commits, with the fire certificate set and the dimensional pack on enquiry.
