Institutional Fire-Rated Door

One range for school and hospital openings: a single leaf and an unequal double leaf, marked at 20, 45, 60 and 90 minutes.

View the specification WhatsApp Us

SCHOOL & HOSPITAL FIRE DOOR SERIES · application scenes

Doors for schools and hospitals

A school or hospital corridor sets its own terms. The door has to take the traffic and still close on cue, so the catalogue lists the school and hospital series with their own model ranges: SDS leaves for education and HPS for hospital, including the unequal double leaf marked at 20, 45, 60 and 90 minutes.

Application is listed as education and hospital across the series, and the brochure shows it in both settings.

20 / 45 / 60 / 90 minCatalogue fire ratings

2 leaf typesSingle leaf · unequal double leaf

B1 + honeycombFlame-retardant leaf build

Classroom + wardCatalogue application lines

Key features

Four things it brings to the opening

01Single leaf and unequal double leafThe range draws a single-leaf fire door for classrooms and wards, and an unequal double leaf where a wider opening has to keep a narrow active leaf.

02B1 flame-retardant leaf with a honeycomb coreA B1 flame-retardant board over a honeycomb core keeps the leaf flat across a school door and light enough for a self-closer.

03Vision panels where they helpPart of the range is drawn with a vision panel, so staff can see into a classroom or a patient room before they open the door.

04Accredited fire certificationCompliance is listed to AS 1905.1:2015, AS 1530.4:2014, EN 1634-1:2014+A1:2018 and CAN/ULCS104 with UL listing and the Intertek, CE, BS, IAS, FSC and HKAS marks.

Specification

The numbers, as published.

Values below are the published specification of the Institutional Fire-Rated Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Door type: Single-leaf · unequal double leaf fire door, per catalogue drawings
Fire rating: 20 / 45 / 60 / 90 min, catalogue test labels
Leaf: Wooden leaf · laminate / HPL / wooden veneer / solid-colour laminate
Core: B1 flame-retardant board with a honeycomb core
Frame: Timber frame, colour quoted to order
Vision panel: Drawn on part of the range for classroom and ward sightlines
Certification: AS 1905.1:2015 · AS 1530.4:2014 · EN 1634-1:2014+A1:2018 · CAN/ULCS104 · UL Listed
Sealing: Intumescent fireproof strip with an automatic door bottom
Application: Classrooms · wards · treatment rooms · escape corridors

Request the full dimensional pack

Gallery

More views of the series

School corridor with glazed classroom fire doors and a fire hydrant panel, design rendering — School corridor with glazed classroom fire doors, design rendering

Blue classroom fire doors along a school corridor with a glass-walled room, design rendering — Blue classroom fire doors along a school corridor, design rendering

Hospital ward fire doors along a corridor with a seated waiting area, design rendering — Hospital ward doors with a seated waiting area, design rendering

School corridor with orange lockers and a run of classroom fire doors, design rendering — School corridor with lockers and a run of fire doors, design rendering

Configurations

Three ways to build the opening

Single leafThe standard classroom and ward door, in wood veneer or a solid-colour face.

Unequal double leafA narrow active leaf beside a wider one, drawn for a corridor opening that also carries trolley or equipment traffic.

Vision panelA glazed aperture in the leaf, on the models drawn with one for classroom and ward sightlines.

Details

Close-up views

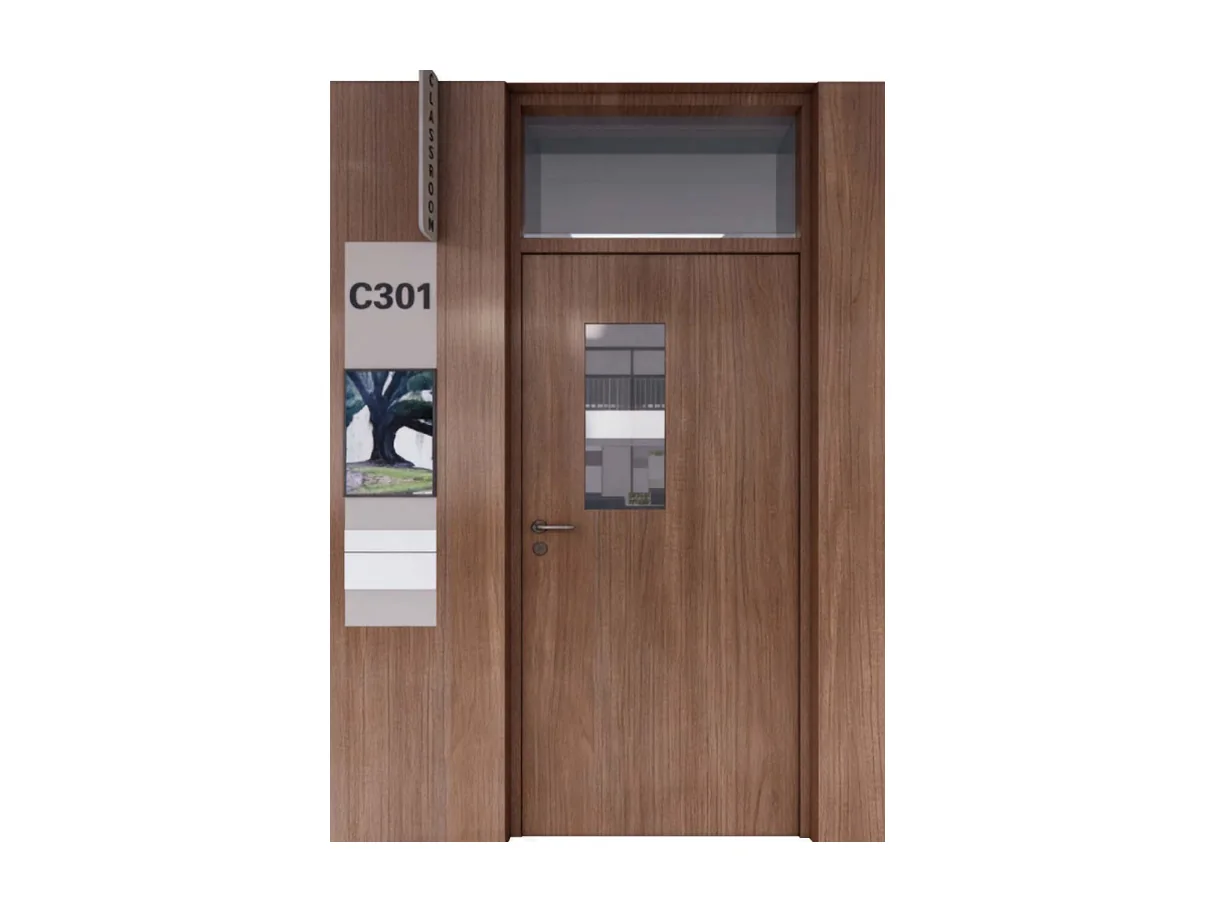

School fire door leaf with a vision panel, safety glass and a lever handle — School leaf with a vision panel and safety glass

Three laminate finish samples for the institutional fire door range in charcoal, taupe and sand — Laminate finish samples: charcoal, taupe and sand

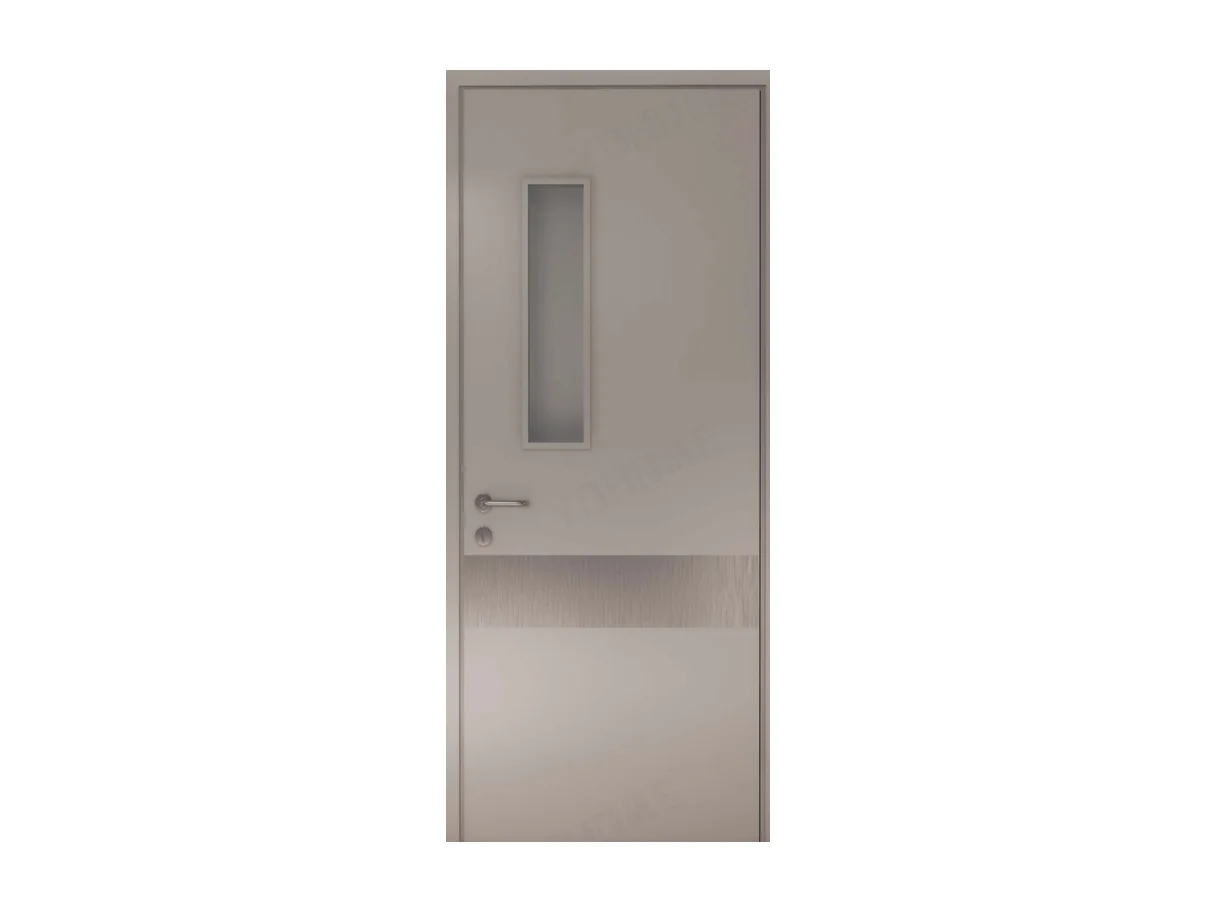

Steel-face institutional fire door leaf with a narrow flush vision slot and a lever — Steel-face leaf with a flush vision slot

Colours

Standard finishes

School blueext / int
Hospital mintext / int
Hospital oakext / int
Walnutext / int
Laminate greyext / int

Catalogue finish names; RAL equivalents and two-tone exterior/interior combinations are confirmed on request against physical swatches.

Leaf, face and colour

The leaf is wooden, faced in laminate, HPL or wooden veneer, with a solid-colour laminate and lacquer route on the school pages. Colour is quoted to order: the catalogue shows blue, green, red and navy frames against white leaves in a school corridor, and a set of wood tones with a soft mint on the hospital pages. Under the face sits a B1 flame-retardant board over a honeycomb core. A vision panel is drawn on part of the range, so staff can see into a classroom or a patient room before the leaf opens, and the sightline still clears an escape route.

Escape route and compliance

Most of these doors sit on an escape route, so the closing is the working part. The catalogue shows a closer at the head, an intumescent strip and a fire-rated door bottom across the gap, and a latch that holds the leaf until the handle is used. The label on the frame and the leaf is marked 20, 45, 60 and 90 minutes. Leaf, frame and ironmongery are certified as one assembly rather than as separate parts, which is the reference a compliance schedule wants when a corridor repeats the same opening a dozen times.

Fire certification

The fire evidence is listed to AS 1905.1:2015 and AS 1530.4:2014, to EN 1634-1:2014+A1:2018 and to CAN/ULCS104, with UL listing alongside. The marks shown in the brochure include Intertek, CE, BS, IAS, FSC, HKAS and JAS-ANZ. The same certificate set covers the single leaf and the unequal double leaf, so a project can file one reference for a whole block of classrooms or wards. A scanned pack travels with the quotation.

Project supply

The range ships on an OEM basis with export packing and project documentation. A finished sample leaf and a cut profile are available before a project commits. Send the opening schedule, the wall type and the destination market, and the quotation returns with the dimensional pack, the finish schedule and the fire certificate set.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

5 finishesRAL matching on request

Documentation

Brochure & spec sheet

The full fire-institutional brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Institutional series project

What is the institutional fire-rated door?

It is a range of single-leaf and unequal double-leaf fire doors for schools and hospitals, marked at 20, 45, 60 and 90 minutes and certified as one assembly.

Which fire ratings are available?

The catalogue marks the range at 20, 45, 60 and 90 minutes. Values are catalogue fire ratings, quoted against the opening and the wall type.

Why an unequal double leaf?

The unequal pair keeps a narrow active leaf for daily traffic beside a wider one, which suits a corridor opening that also carries trolleys or equipment.

Are vision panels available?

Part of the range is drawn with a vision panel, so staff can see into a classroom or a patient room before opening the door.

What colour options are shown?

Blue, green, red and navy frames against white leaves on the school pages, and wood tones with a soft mint on the hospital pages. Colour is quoted to order.

Which fire standards apply?

AS 1905.1:2015 and AS 1530.4:2014, EN 1634-1:2014+A1:2018 and CAN/ULCS104, with UL listing and the Intertek, CE, BS, IAS, FSC and HKAS marks.
