Wave Ripple Wood-Grain Entrance Door

A carved ripple wood-grain leaf on a sealed thermal-break entrance frame.

WAVE SERIES DOOR · application scenes

Ripple wood-grain entrance doors

The Wave series is the ripple wood-grain line shown inside the high-end art section of the AURORA entrance range. The catalogue prints it on printed page 011 as WAVE SERIES DOORS, with the lead piece M-007 and further pieces M-008 and M-009. The leaf carries a carved ripple pattern that reads as moving wood grain, cut in relief so the surface shifts with the light. The scenes set the leaf into a white render and stone villa entrance, with a fixed glass sidelight beside the door. Every image and every line on this page is taken from the production catalogue.

M-007 to M-009Catalogue model range

5 / 8 / 8 / 8 / 9Catalogue performance levels

7-layerStructural build, catalogue

On requestFinishes and samples

Key features

Four things it brings to the opening

01Ripple wood-grain faceThe catalogue draws the leaf with a carved ripple pattern that reads as moving wood grain, cut across the full face so the surface shifts with the light.

02Warm grain toneThe pieces are shown in warm wood tones, so the carved face sits beside render and stone villa fronts as a timber-tone leaf held in aluminium.

03Sealed entrance buildThe carved leaf is built on a thermal-break aluminium frame with an automotive-grade sealing strip and PA66 insulation strips, the build the catalogue names across the entrance range.

04Smart-lock readyThe hardware pages list the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks with motor linkage, plus the H3 horizontal handle.

Specification

The numbers, as published.

Values below are the published specification of the Wave Ripple Wood-Grain Entrance Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Opening: Single-leaf swing, with or without a fixed sidelight
Door style: Ripple wood-grain carved face
Structural build: Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · thermal-break profile · automotive-grade sealing strip · PA66 insulation strip · aluminium or wooden backboard
Leaf face: Carved ripple wood-grain pattern · warm grain tones
Frame: Aluminium with thermal-break profiles
Glazing: Tempered glass sidelight where the catalogue draws it
Performance (catalogue ratings): Sound 5 · thermal 8 · water 8 · air 8 · wind 9
Hardware: L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks with motor linkage · H3 horizontal handle
Finishes: No catalogue colour card · wood-grain tones confirmed on request

Request the full dimensional pack

Gallery

More views of the series

Ripple wood-grain aluminium entrance leaf with a glass sidelight beside an outdoor stair, design rendering — Ripple wood-grain leaf and a glass sidelight beside an outdoor stair, design rendering

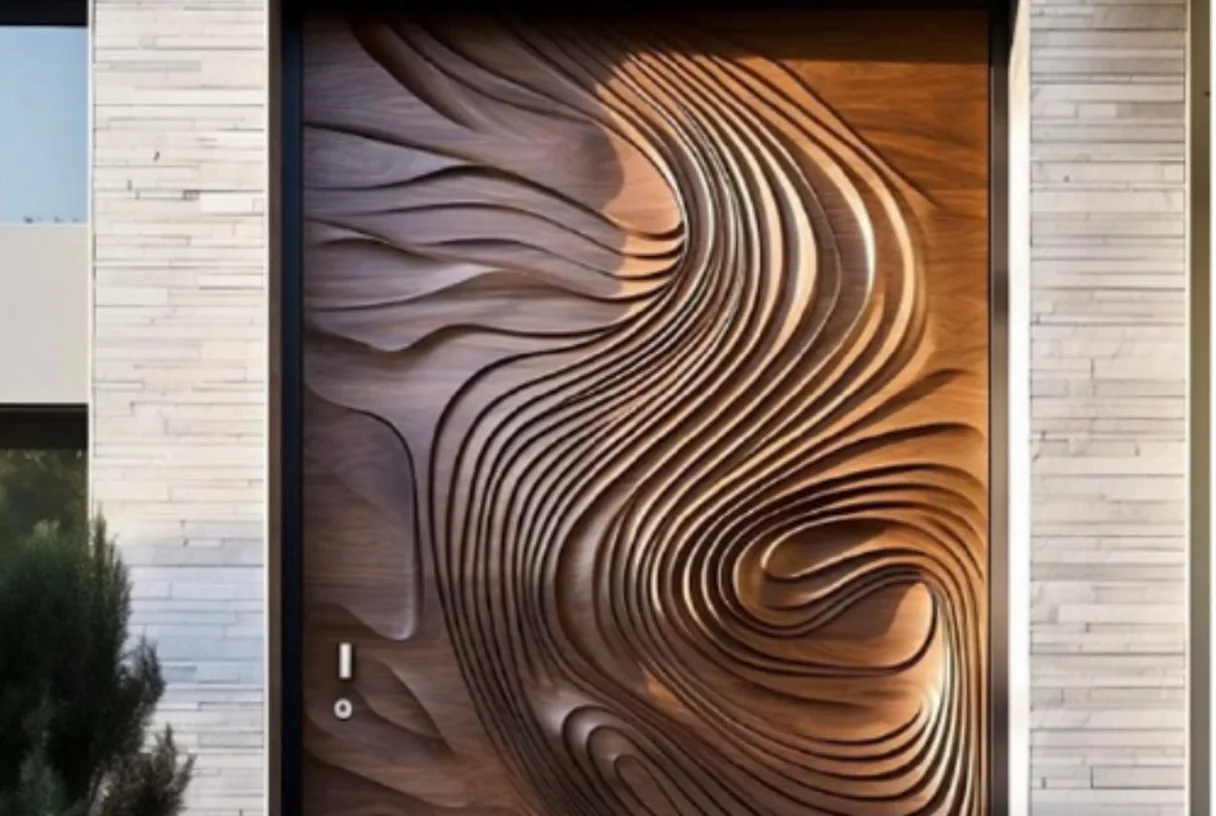

Ripple wood-grain aluminium entrance leaf with the carved grain gathered at the centre on a stone reveal, design rendering — Ripple grain drawn tight to the leaf centre on a stone reveal, design rendering

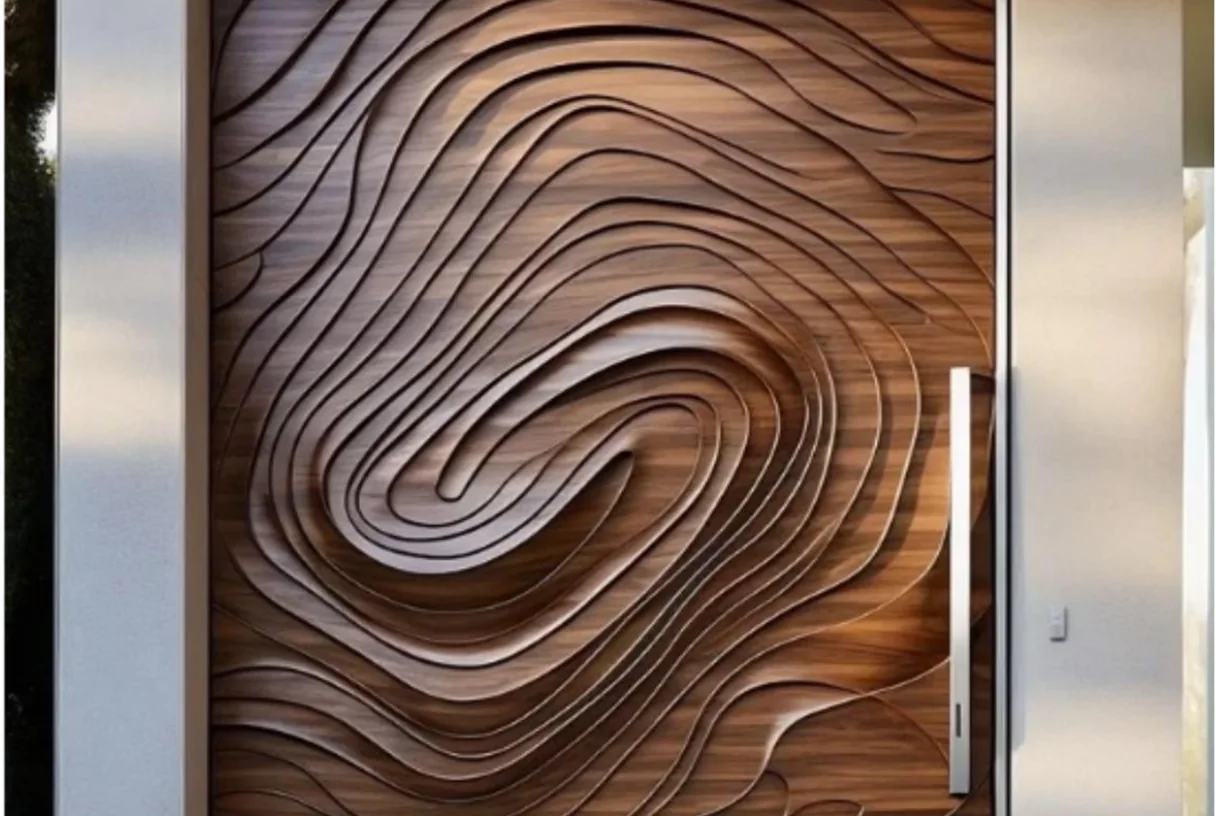

Ripple wood-grain aluminium entrance leaf with the carved grain sweeping wide and a vertical pull, design rendering — Ripple grain opened wide across the leaf with a vertical pull, design rendering

Configurations

Three ways to build the opening

Full leafA single carved leaf across the opening, as in the catalogue M-007 scene.

With glass sidelightThe carved leaf with a fixed glass sidelight beside it, as in the lead scene.

Pattern variantsFurther ripple pieces M-008 and M-009, drawn with a tighter or wider grain, as printed on page 012.

Details

Close-up views

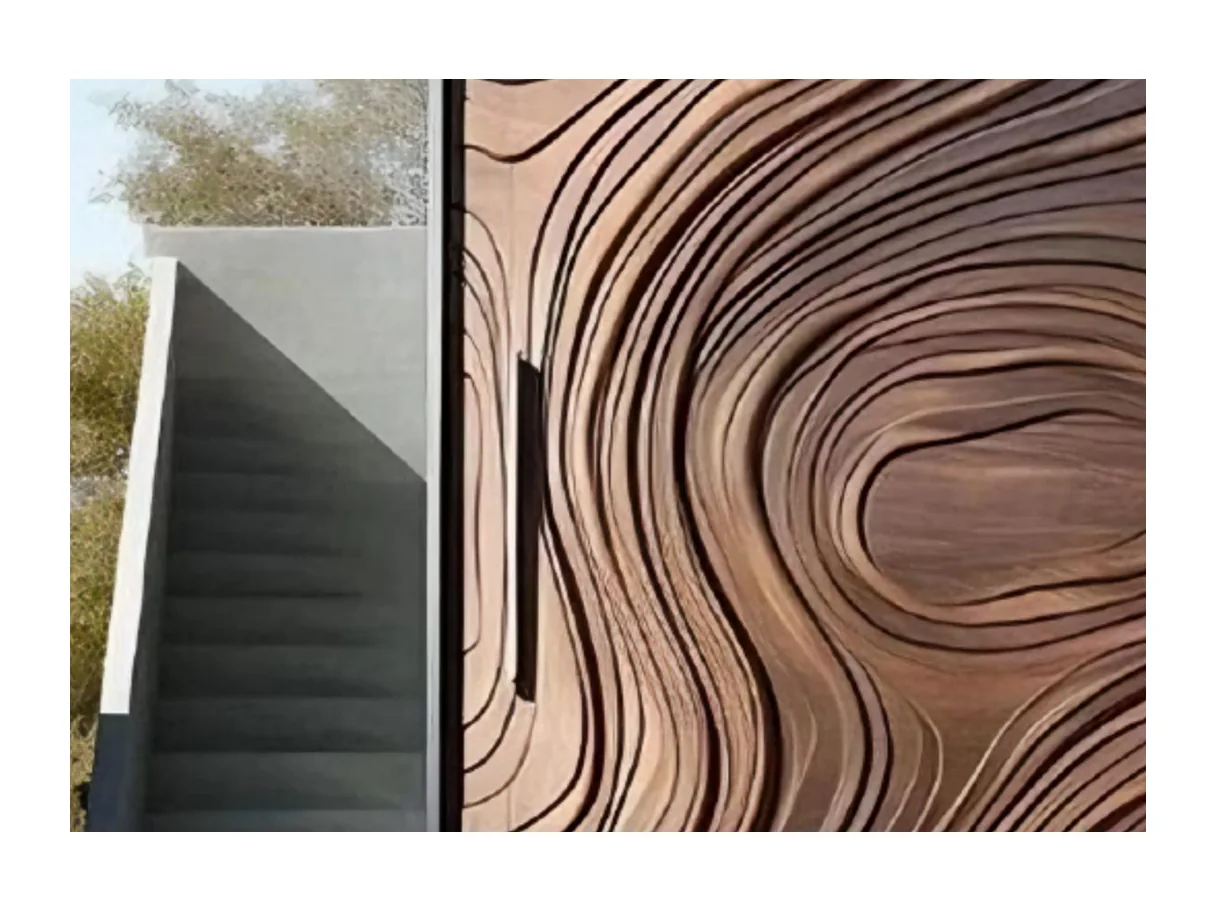

Close view of the carved ripple wood-grain pattern and the edge of the entrance leaf — Close view: the carved ripple grain and the leaf edge

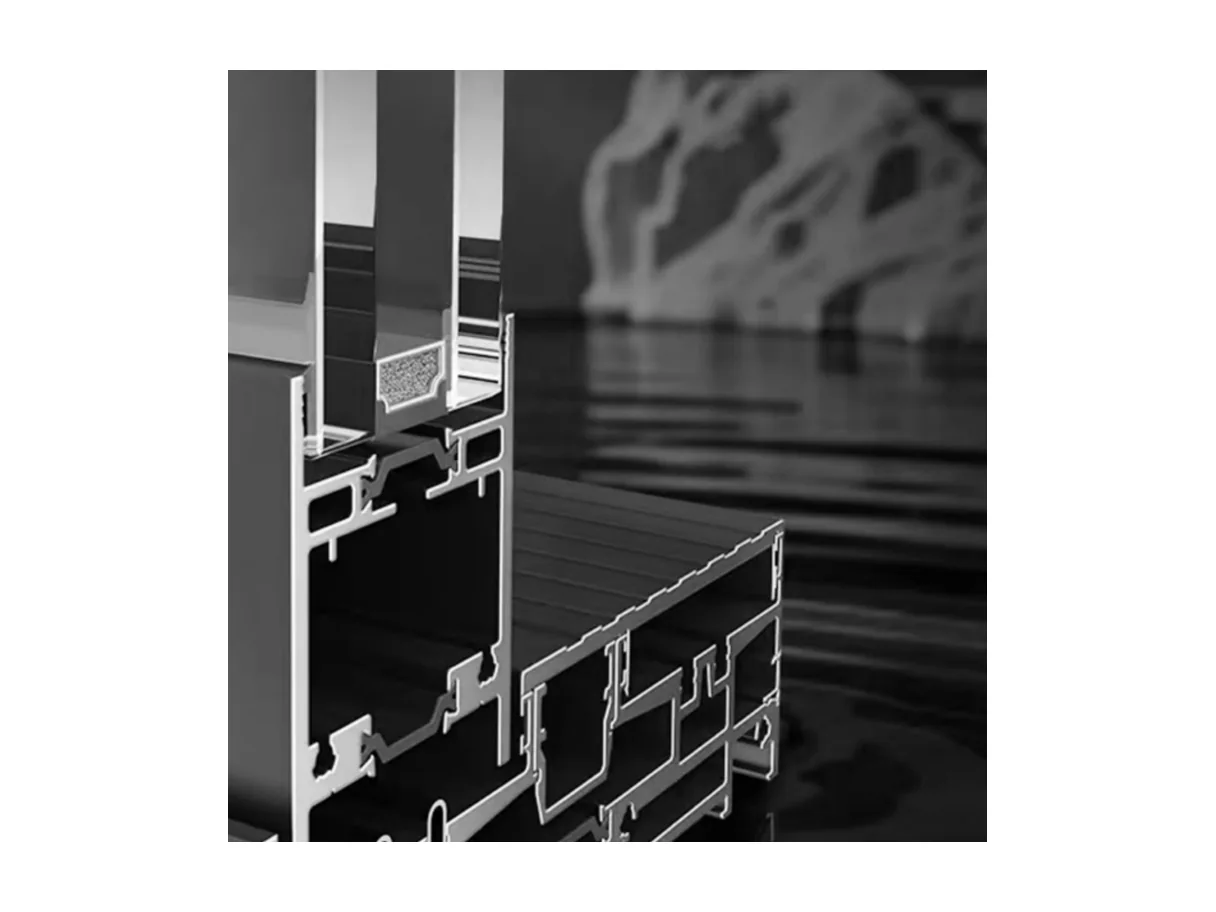

Cutaway: sealed entrance profile with gaskets

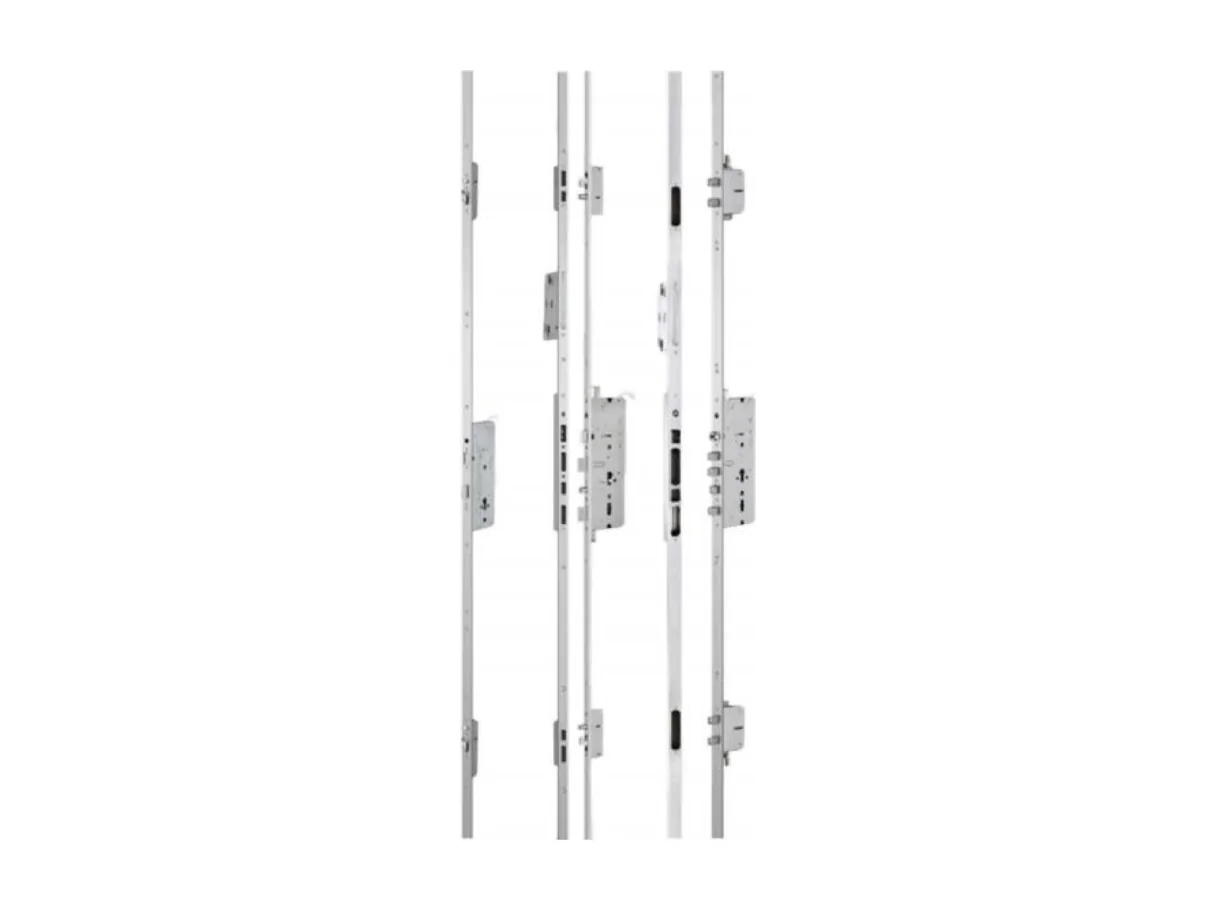

Product view of a set of motor interlocking lock bodies for a secondary door leaf — Hardware set: motor interlocking lock bodies

Carved face and structure

The carved leaf sits on a thermal-break aluminium frame, and the catalogue lists the same structural build across the entrance range: aviation-grade aluminium plate, a 1.0 mm steel plate, a B1 flame-retardant board, an automotive-grade sealing strip, PA66 insulation strips and an aluminium or wooden backboard. The ripple pattern is cut across the full leaf face, and the catalogue shows the pieces in warm wood tones. Sidelights are tempered glass where the catalogue draws them. Leaf sizes, wall openings and glass build-up are quoted against the project opening.

Performance ratings from the catalogue

The catalogue gives the entrance range five ratings, printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9. They are catalogue ratings, kept as printed, and they cover the sealed door assembly rather than a single measured opening. The sealing strip and the thermal-break profiles named in the structural list are the parts the catalogue links to those ratings.

Finishes and hardware

The catalogue prints no colour card for the Wave leaf, so the finish is confirmed against the catalogue and physical samples on request; the scenes show warm wood-grain tones. Hardware runs to the smart-lock options the catalogue lists on printed page 095: the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded split locks, together with the H3 horizontal handle. The brochure prints no RAL numbers for this series, so a project colour is matched against a physical sample.

OEM and project supply

The Wave entrance door leaves the factory on the same private-label basis as the rest of the AURORA range: own-brand packing, project documentation and export-standard containers. A profile set and a finished test door are available for review before a project commits, and the carved face, the sidelight and the hardware set are fixed against the opening. Send the opening size, the leaf style and the destination market, and the quotation returns with the full dimensional pack.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

RAL matchingOn request

Documentation

Brochure & spec sheet

The full entwave brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Wave series project

What is the Wave ripple wood-grain entrance door?

It is the ripple wood-grain line shown inside the high-end art section of the AURORA entrance range, printed on catalogue page 011 as WAVE SERIES DOORS, with the lead piece M-007 and further pieces M-008 and M-009.

How is the ripple face made?

The leaf carries a carved ripple pattern cut in relief across the full face, so the surface reads as moving wood grain and shifts with the light. It is held in a thermal-break aluminium frame.

What performance does the catalogue give?

Five catalogue ratings printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9, taken as printed for the sealed assembly.

Is it available with a sidelight?

Yes. The catalogue shows the carved leaf with a fixed glass sidelight beside it, as in the lead scene on a white and stone villa front.

Which finishes are offered?

The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, with warm wood-grain tones shown in the scenes.

Can we sample it before ordering?

Yes. A profile set and a finished test door are available on request, with the lead time confirmed on the enquiry.
