Jiahe Single and Double Leaf Entrance Door

A full main leaf with a narrower secondary leaf, on one sealed thermal-break frame in three printed sub-styles.

SINGLE-DOOR PARENT-CHILD DOOR SERIES · application scenes

Single and double leaf entrance doors

The Jiahe series is the single-door parent-child line of the AURORA entrance range, printed from printed page 051 as section 053P, with fifteen pieces running from M-001 to M-015. The catalogue prints the series in three sub-styles: a French-style parent-child door, a Chinese-style parent-child door and a modern parent-child door. Each opening pairs a full main leaf with a narrower secondary leaf, so the door can be used one leaf at a time or both together. The scenes set the pair into villa fronts in stone, render and painted plaster. Every image and every line on this page is taken from the production catalogue.

M-001 to M-015Catalogue model range

3Catalogue sub-styles

5 / 8 / 8 / 8 / 9Catalogue performance levels

On requestFinishes and samples

Key features

Four things it brings to the opening

01Main and secondary leafThe catalogue pairs a full main leaf with a narrower secondary leaf, so the door opens as one leaf for everyday use and as two when the whole width is needed.

02Three sub-stylesThe series is printed as a French-style parent-child door, a Chinese-style parent-child door and a modern parent-child door, all on one sealed frame.

03Risk-resistance systemThe catalogue prints a security group on page 051: an unlimited remote, a visitor system, video surveillance, a door-opening system, an anti-pry solution and a defence system.

04Secondary-door motor lockThe hardware pages add a motor lock for the secondary leaf with electric central control, together with the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks.

Specification

The numbers, as published.

Values below are the published specification of the Jiahe Single and Double Leaf Entrance Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Opening: Single main leaf with a secondary leaf (mother and child)
Door style: French-style · Chinese-style · modern parent-child door
Structural build: Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · thermal-break profile · automotive-grade sealing strip · PA66 insulation strip · aluminium or wooden backboard
Leaf split: Full main leaf with a narrower secondary leaf
Frame: Aluminium with thermal-break profiles
Security (catalogue): Unlimited remote · visitor system · video surveillance · door-opening system · anti-pry solution · defence system
Performance (catalogue ratings): Sound 5 · thermal 8 · water 8 · air 8 · wind 9
Hardware: Secondary-door motor lock (electric central control) · L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks · H3 horizontal handle
Finishes: No catalogue colour card · confirmed against samples on request

Request the full dimensional pack

Gallery

More views of the series

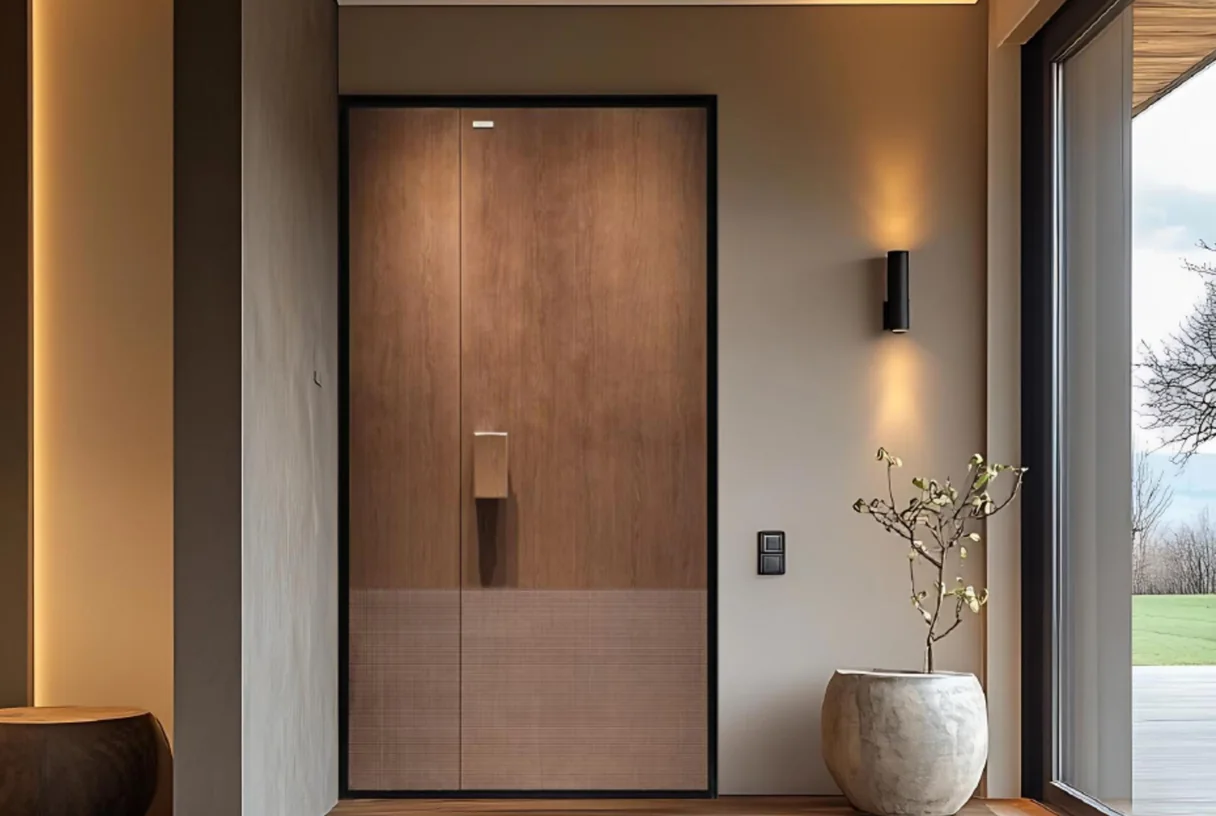

Two-tone timber-faced main and secondary leaf entrance door in a lit porch with a potted plant, design rendering — Two-tone timber main and secondary leaf in a lit porch, design rendering

Grey main and secondary leaf entrance door with diamond-bar glazing and a brass ring pull, design rendering — Grey main and secondary leaf with diamond-bar glazing and a brass ring, design rendering

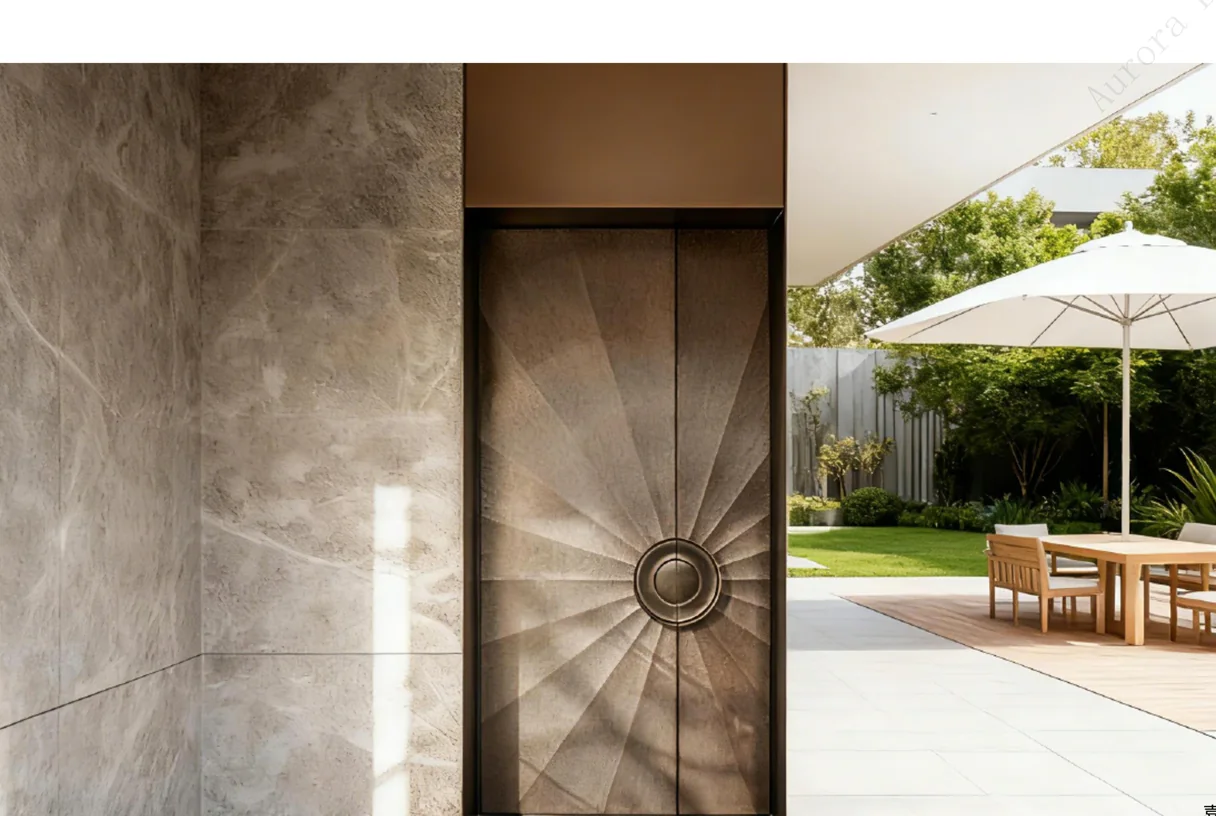

Bronze radial-relief cast entrance leaf in a marble reveal beside a garden terrace with a parasol, design rendering — Bronze radial-relief leaf beside a garden terrace, design rendering

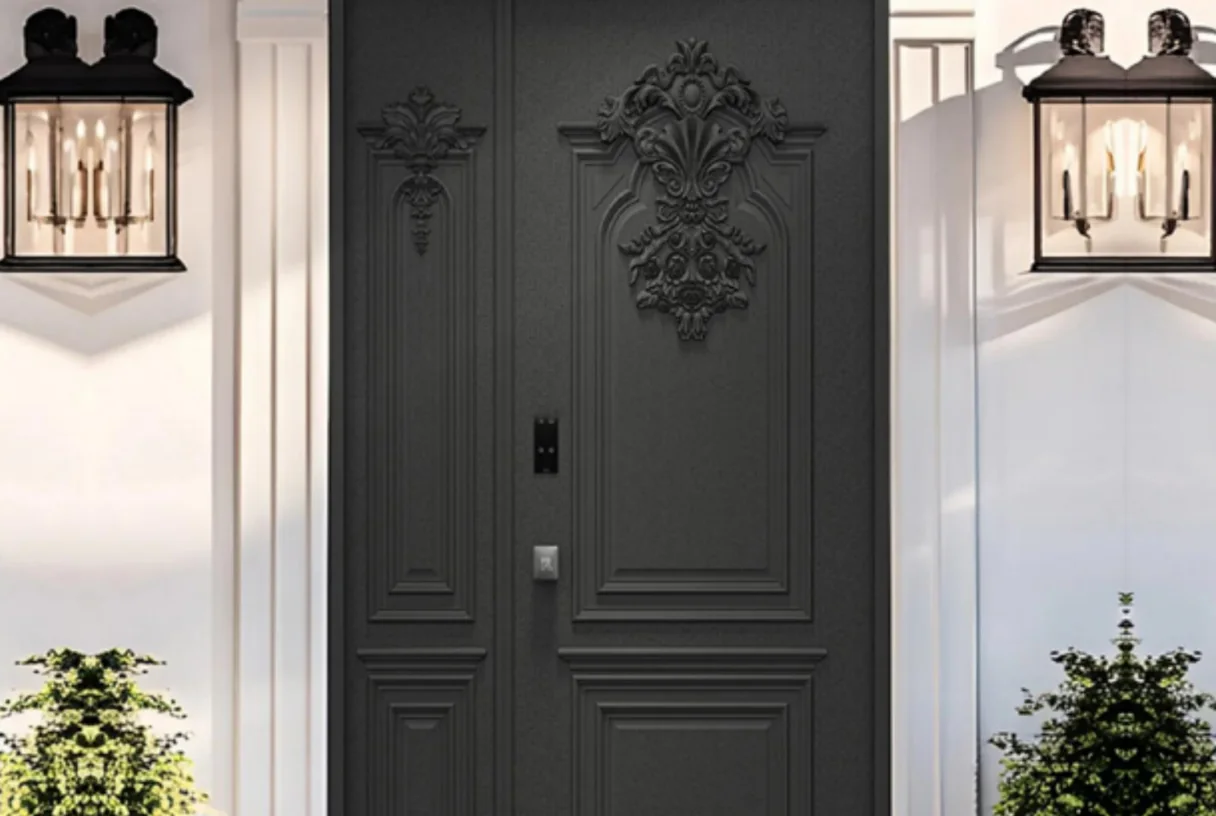

Black relief-faced main entrance leaf with a floral motif and lanterns on a plaster wall with planting, design rendering — Black relief main leaf with lanterns on a plaster wall, design rendering

Configurations

Three ways to build the opening

French-style pairA panelled main and secondary leaf, as in the catalogue French scenes.

Chinese-style pairA relief-faced main and secondary leaf, as in the catalogue Chinese scenes.

Modern pairA flush or timber-faced main and secondary leaf, as in the catalogue modern scenes.

Details

Close-up views

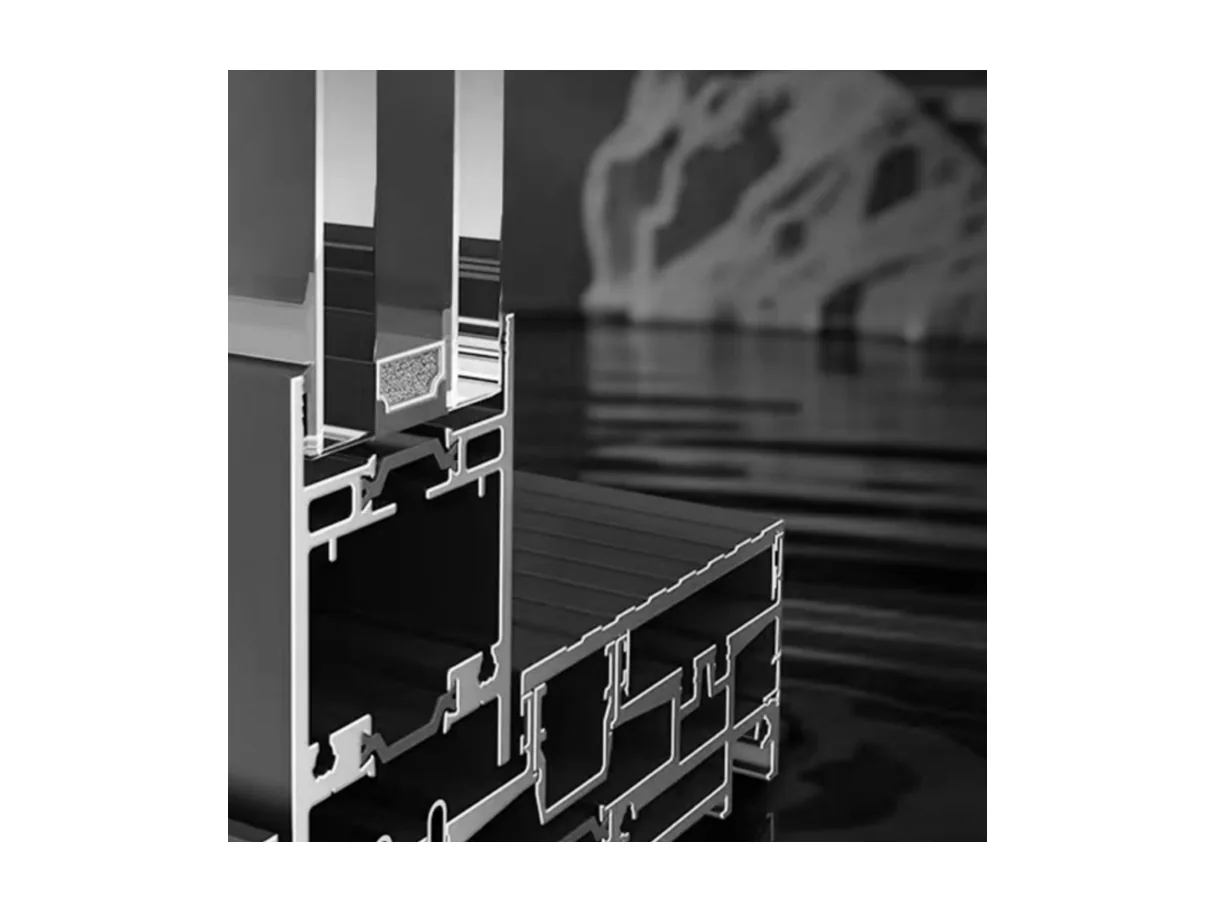

Cutaway section of the sealed entrance door frame showing the gasket lines and the glazing rebate — Cutaway: sealed entrance frame with gaskets

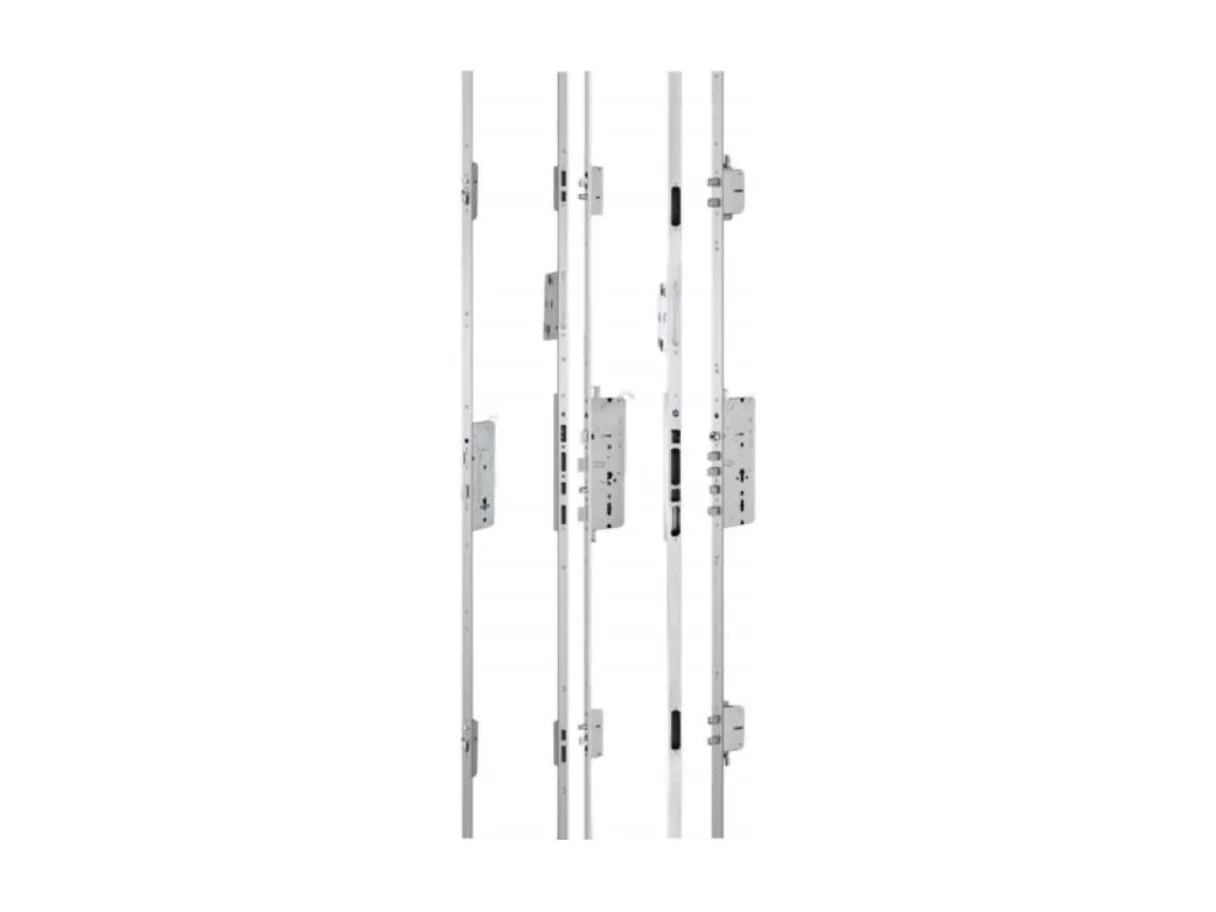

Product view of a set of motor interlocking lock bodies for the secondary door leaf — Hardware set: motor interlocking lock bodies

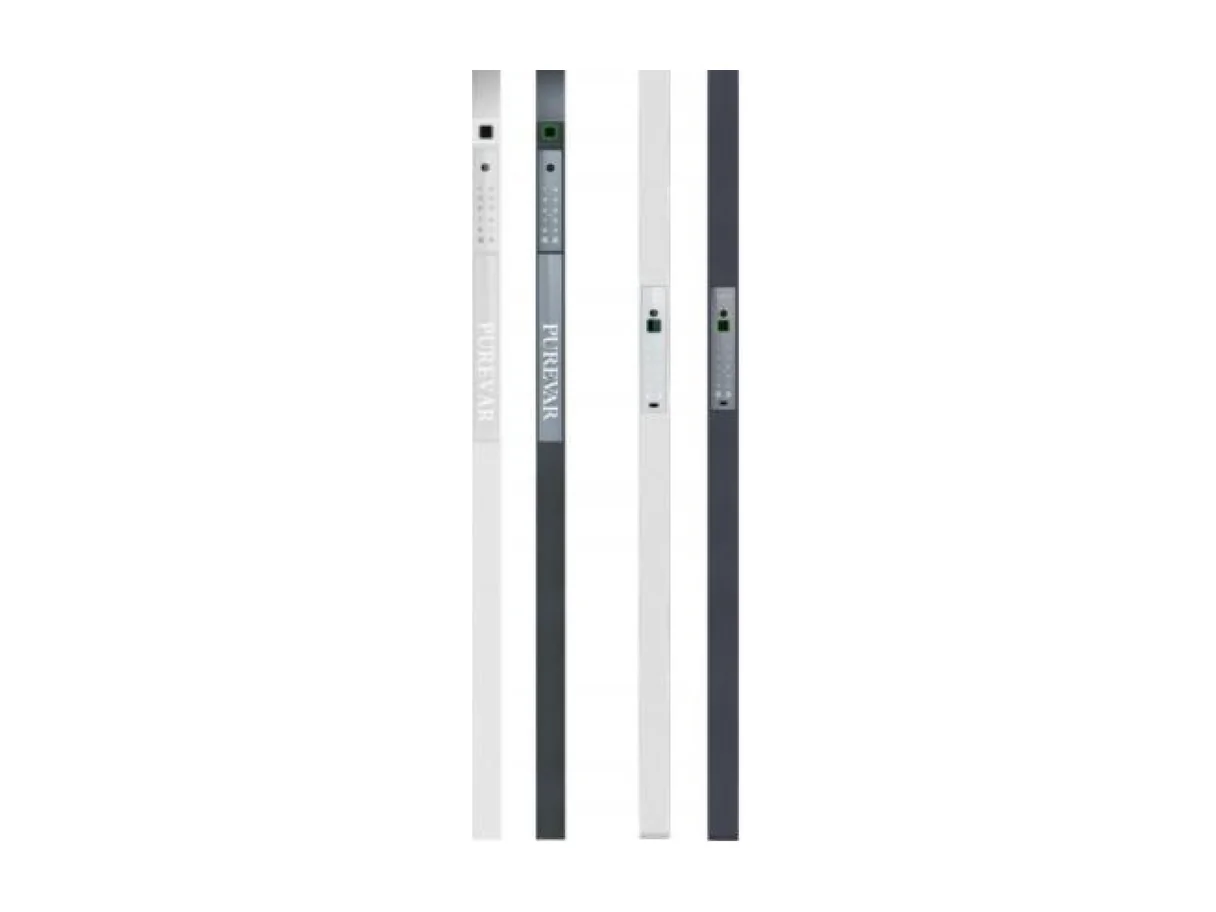

Product view of a set of straight aluminium pipe handles in light and dark finishes — Product view: straight pipe handle set

Two-leaf use and structure

The main leaf carries the handle and the lock, and the secondary leaf opens when the whole width is needed. The catalogue describes the two states on printed page 060: a single leaf for quiet everyday use and both leaves for moving bulky items or for ventilation. The leaf sits on a thermal-break aluminium frame, and the catalogue lists the same structural build across the entrance range: aviation-grade aluminium plate, a 1.0 mm steel plate, a B1 flame-retardant board, an automotive-grade sealing strip, PA66 insulation strips and an aluminium or wooden backboard. Leaf sizes, the split between main and secondary leaf, and glass build-up are quoted against the project opening.

Performance ratings from the catalogue

The catalogue gives the entrance range five ratings, printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9. They are catalogue ratings, kept as printed, and they cover the sealed door assembly rather than a single measured opening. The sealing strip and the thermal-break profiles named in the structural list are the parts the catalogue links to those ratings.

Security and hardware

The catalogue prints a risk-resistance system for the series on printed page 051: an unlimited remote, a visitor system, video surveillance, a door-opening system, an anti-pry solution and a defence system. The hardware pages add the secondary-door motor lock, the part the catalogue lists with electric central control for the narrow leaf. Smart-lock options run to the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded split locks, together with the H3 horizontal handle. The catalogue prints no colour card and no RAL numbers for this series, so a project colour is matched against a physical sample.

OEM and project supply

The Jiahe entrance door leaves the factory on the same private-label basis as the rest of the AURORA range: own-brand packing, project documentation and export-standard containers. A profile set and a finished test door are available for review before a project commits, and the leaf split, the face style and the hardware set are fixed against the opening. Send the opening size, the sub-style and the destination market, and the quotation returns with the full dimensional pack.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

RAL matchingOn request

Documentation

Brochure & spec sheet

The full entjiahe brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Jiahe series project

What is the Jiahe single and double leaf entrance door?

It is the single-door parent-child line of the AURORA entrance range, printed from catalogue page 051 as section 053P, with fifteen pieces from M-001 to M-015, in a French-style, a Chinese-style and a modern sub-style.

How does a mother and child door work?

A full main leaf carries the handle and the lock, and a narrower secondary leaf opens beside it. The catalogue describes one leaf for everyday use and both leaves for moving bulky items or for ventilation.

What performance does the catalogue give?

Five catalogue ratings printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9, taken as printed for the sealed assembly.

What security does the catalogue list?

A risk-resistance system on page 051: an unlimited remote, a visitor system, video surveillance, a door-opening system, an anti-pry solution and a defence system, plus a motor lock for the secondary leaf with electric central control.

Which finishes are offered?

The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, with panelled, relief and timber-faced looks shown in the scenes.

Can we sample it before ordering?

Yes. A profile set and a finished test door are available on request, with the lead time confirmed on the enquiry.
