Yingfei Offset-Hinge Cast-Aluminium Entrance Door

An offset pivot turns the leaf clear of the reveal, paired with a sculpted cast-aluminium art face.

YINGFEI OFFSET HINGE DOOR · application scenes

An offset-hinge leaf for tight entrances

The Yingfei series is the offset-hinge door of the AURORA range. The catalogue prints it on printed pages 075 to 084 and opens with one idea: the leaf turns on a pivot placed inboard of its edge, so it clears the reveal instead of sweeping across it. The catalogue calls that the optimal answer for narrow spaces and small apartments, and the scenes show the leaf standing open against a wall with the floor in front of the door left clear. Every claim on this page is taken from the catalogue.

~180°Opening angle, catalogue

OffsetPivot axis placement

Cast-aluminiumArt face option

On requestFinishes and samples

Key features

Four things it brings to the opening

01Offset pivot, clear floorThe leaf turns on an axis inboard of its edge, so the core areas inside and outside the opening stay free and a tight plan keeps its floor in use.

02Nearly 180 degrees, both waysThe catalogue gives the leaf a large opening angle close to 180 degrees and movement in both directions, so bulky items and several people pass without a hinge limit.

03Cast-aluminium art faceSeveral leaves carry a sculpted cast-aluminium face set into the leaf, drawn in bronze, stone and dark tones, with the pivot hardware kept out of the closed face.

04Balanced load, longer lifeThe catalogue says the pivot spreads and balances the load, which reduces sag and deformation of the leaf and cuts wear on the hardware parts.

Specification

The numbers, as published.

Values below are the published specification of the Yingfei Offset-Hinge Cast-Aluminium Entrance Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Operation: Offset-hinge swing, pivot inboard of the leaf edge
Opening angle (catalogue): Large angle, close to 180 degrees, opening both ways
Space: Core areas inside and outside the opening stay clear
Leaf face: Cast-aluminium art face · marble face · slim glazing
Frame: Aluminium, per the catalogue scenes
Structural build: Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · PA66 insulation strip · automotive-grade sealing strip
Durability (catalogue): Balanced pivot load, reduced sag and less hardware wear
Hardware: L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks
Finishes: Confirmed against the catalogue and samples on request

Request the full dimensional pack

Gallery

More views of the series

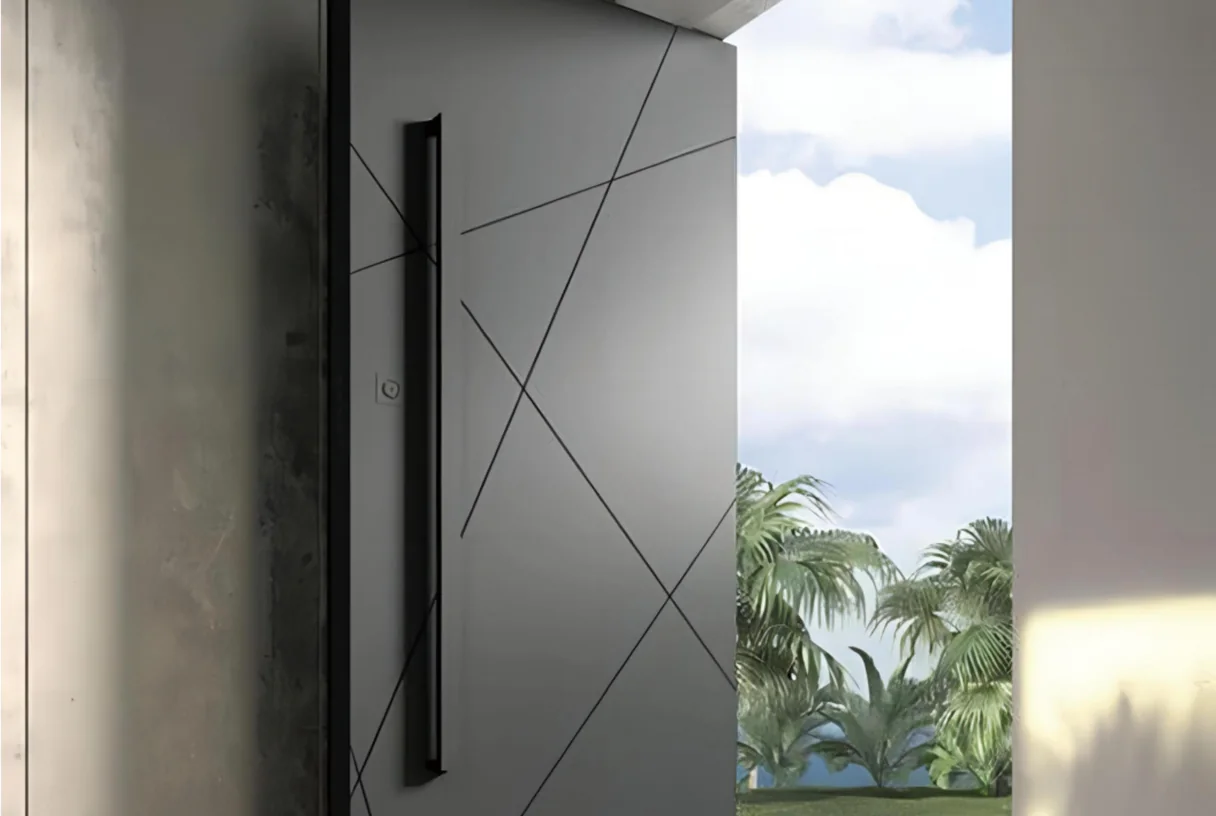

Grey aluminium offset-hinge entrance leaf with crossed line inlays opening onto a sea-facing garden, design rendering — Grey offset-hinge leaf with crossed line inlays at a sea-facing opening, design rendering

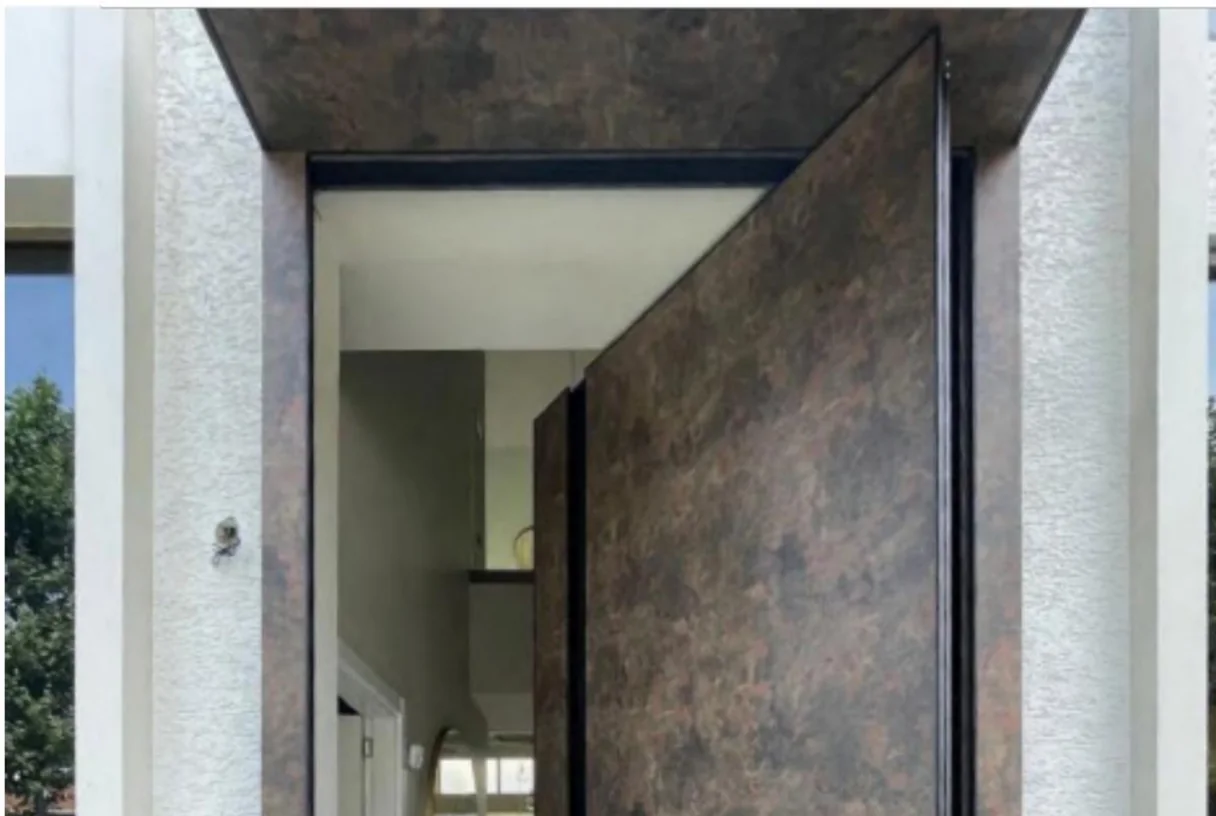

Dark aluminium offset-hinge entrance leaf with a brown cast-aluminium art panel open beside a doorway, design rendering — Offset-hinge leaf with a cast-aluminium panel open to an interior, design rendering

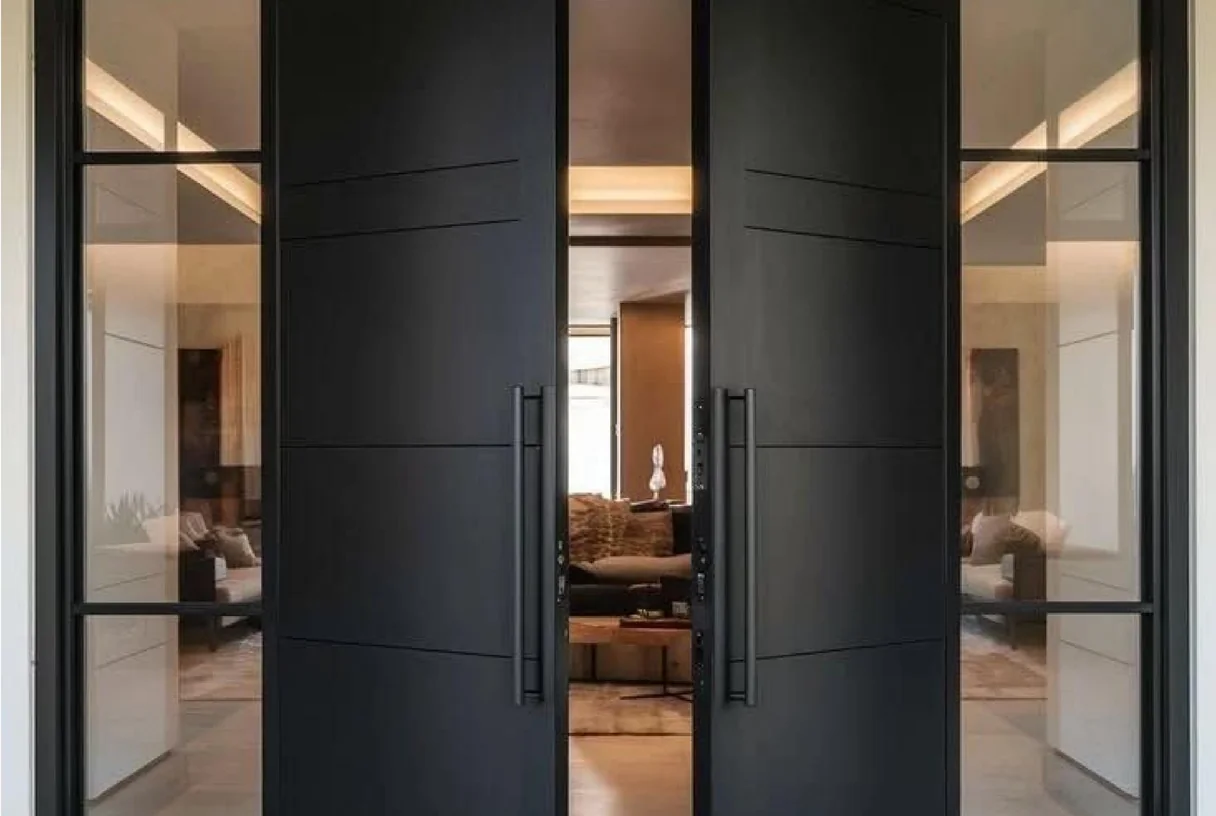

Black aluminium double offset-hinge entrance leaves with glass sidelights open into a living room, design rendering — Black double offset-hinge leaves with glass sidelights, design rendering

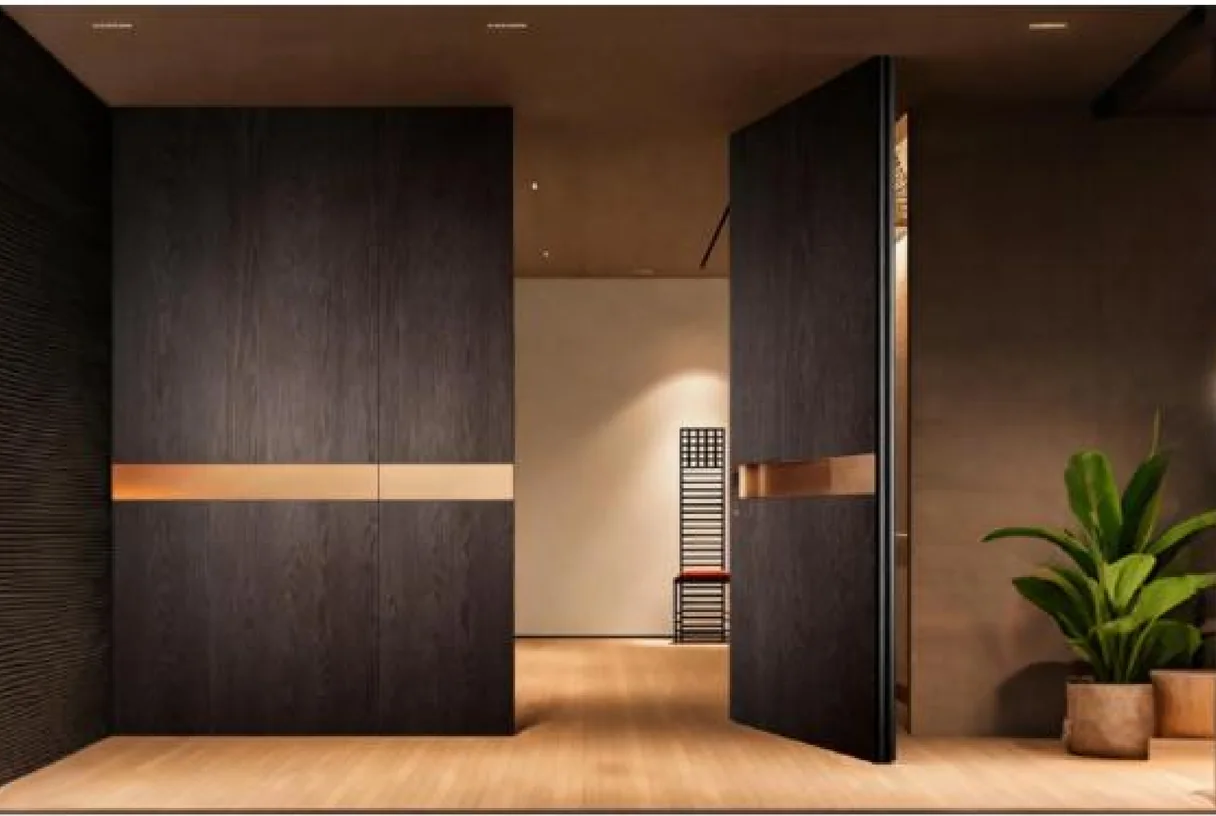

Dark timber-faced offset-hinge entrance doors open across a wood-floored interior, design rendering — Dark timber offset-hinge pair open across an interior, design rendering

Configurations

Three ways to build the opening

Solid cast faceA leaf with a sculpted cast-aluminium face, as in the catalogue bronze and stone scenes.

Glazed or marble leafA leaf with slim vertical glazing or a marble face, as shown in the catalogue room scenes.

Double offset pairTwo offset-hinge leaves meeting at the centre, as in the catalogue interior scene.

Details

Close-up views

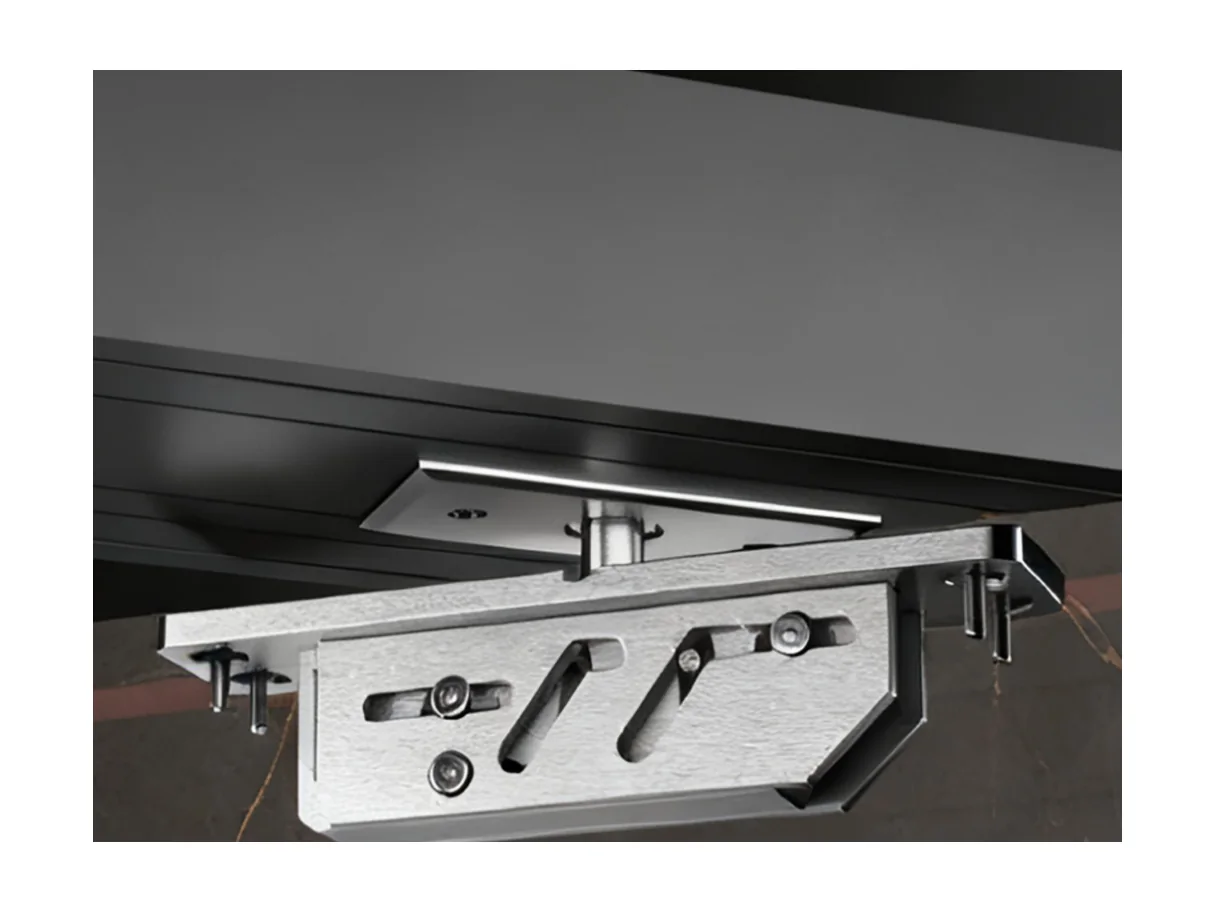

Close view of the stainless steel offset pivot hardware unit carrying the door leaf at the head — Hardware detail: the offset pivot unit at the head

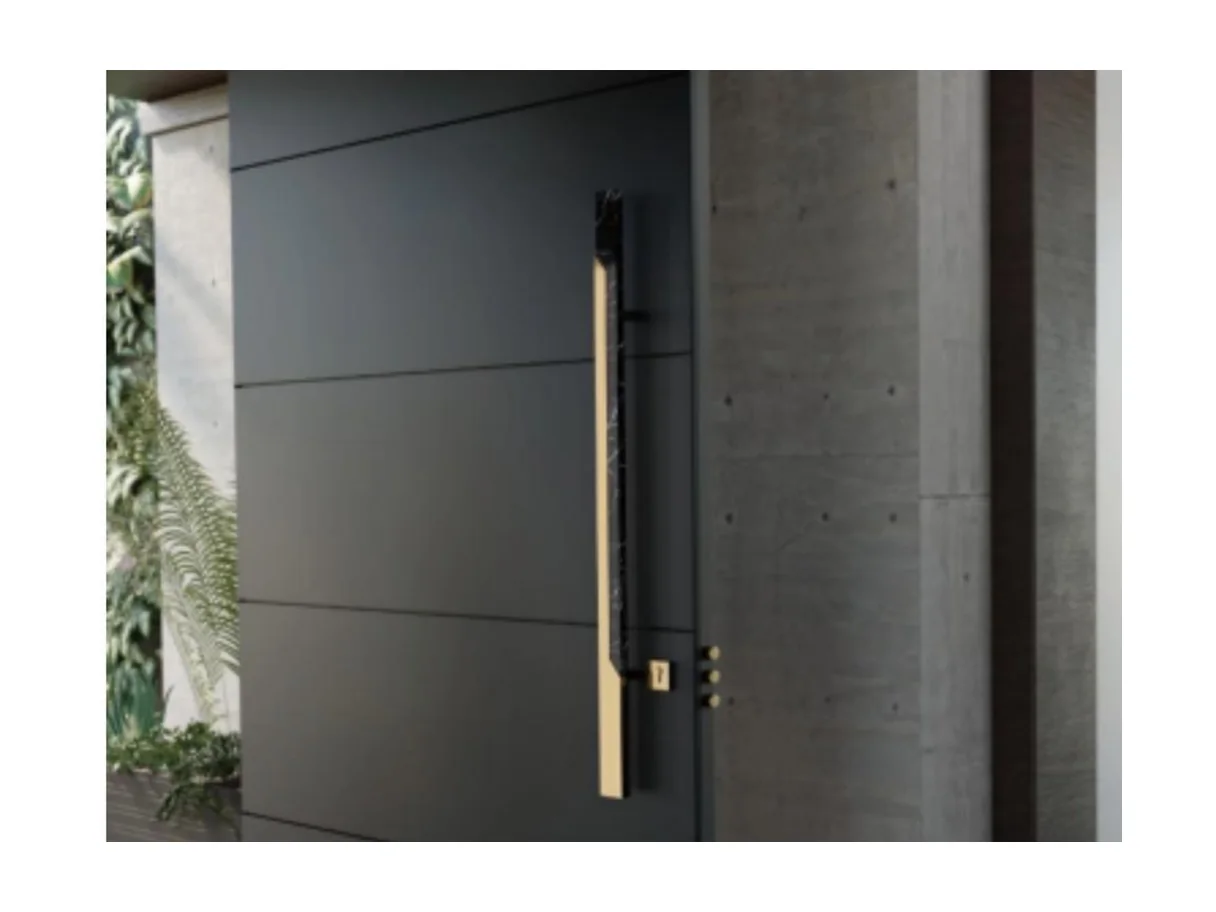

Front view of a concrete-grey aluminium offset-hinge entrance leaf with a vertical brass pull — Product view: concrete-grey leaf with a vertical brass pull

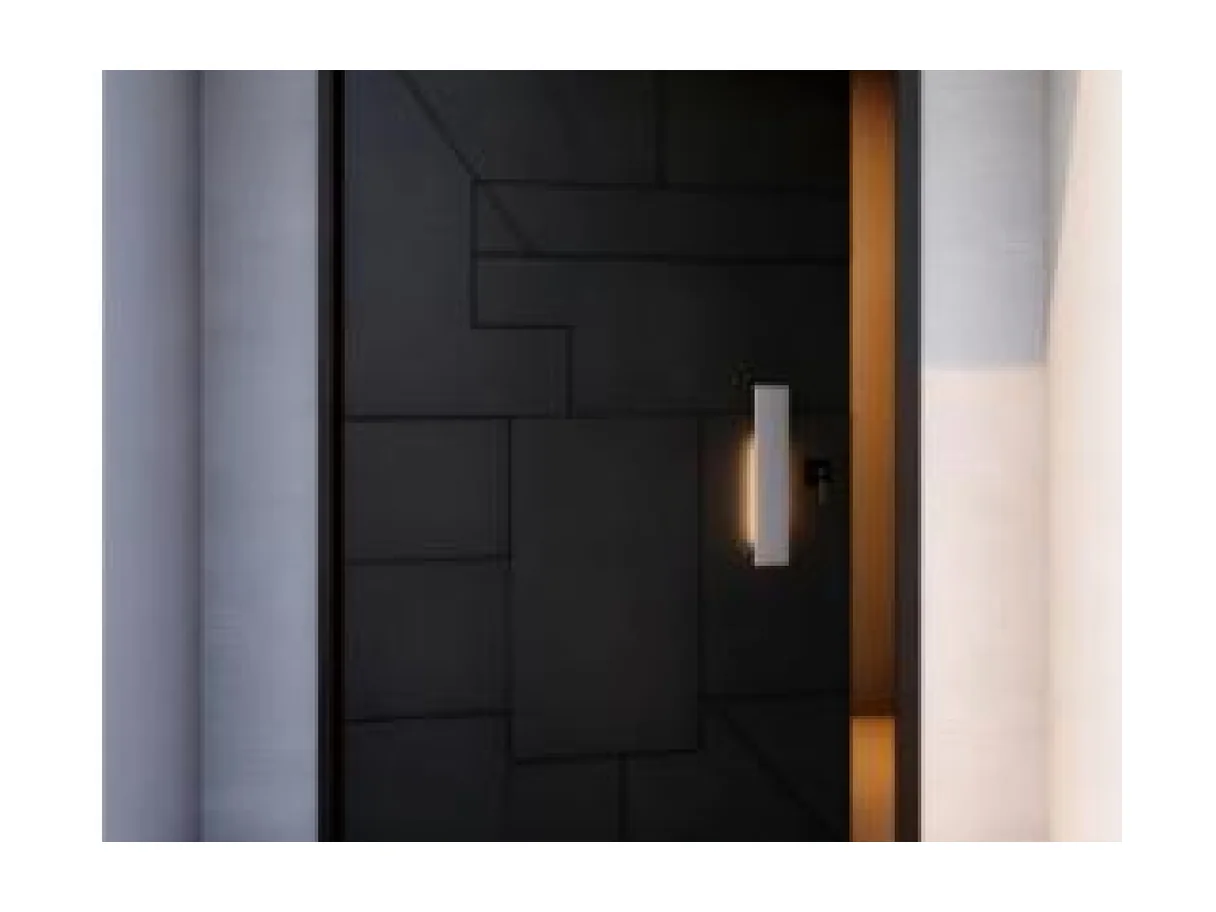

Front view of a black aluminium offset-hinge entrance leaf with a faceted geometric face and a brass pull — Product view: black geometric offset-hinge leaf

How the offset hinge works

The catalogue lists three advantages for the system on printed page 075. The leaf rotates along an offset axis and leaves the core area inside and outside the opening free. It opens through a large angle, close to 180 degrees, and in both directions, so bulky items and several people pass without the angle limit of a traditional hinge. The pivot spreads and balances the load, which the catalogue says reduces sag and deformation of the leaf and cuts wear on the hardware.

That combination of a moving leaf and a fixed floor line is what the catalogue draws in the corridor and lobby scenes, where furniture and traffic sit close to the frame.

Cast-aluminium art face

Several leaves in the series carry a cast-aluminium face with a sculpted or brushed texture, drawn in bronze, stone and dark tones across the catalogue scenes. The face is set into the leaf with the pivot hardware kept out of the closed panel, so the shut door reads as one ornate face. The catalogue pairs that face with the offset pivot, and that pairing is what sets the series apart from the plain pivot leaf listed elsewhere in the door range.

Frame, glazing and finishes

Each leaf runs on an aluminium frame, and the catalogue shows the series from solid cast faces through marble-faced leaves to glass leaves with slim vertical lights. The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, and the scenes show bronze, stone, black and timber tones. The hardware pages list the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks.

OEM and project supply

The offset-hinge door ships on the same private-label basis as the rest of the AURORA range: own-brand packing, project documentation and export-standard containers. A profile set and a finished test door can be reviewed before a project commits, and the pivot position, the leaf face and the hardware set are fixed against the opening. Send the opening size, the leaf face and the destination market, and the quotation returns with the full dimensional pack.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

RAL matchingOn request

Documentation

Brochure & spec sheet

The full entyingfei brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Yingfei series project

What is the Yingfei offset-hinge door?

It is the offset-hinge entrance door of the AURORA range, printed on catalogue pages 075 to 084. The leaf turns on a pivot set inboard of its edge, which the catalogue gives as the answer for narrow spaces and small apartments.

How is it different from a standard swing door?

The pivot sits inboard of the leaf edge and the leaf opens through a large angle, close to 180 degrees, in both directions, so the core areas inside and outside the opening stay clear. A standard side hinge sweeps the leaf across that floor.

What is the cast-aluminium art face?

Several leaves carry a sculpted cast-aluminium face, drawn in bronze, stone and dark tones, set into the leaf with the pivot hardware kept out of the closed panel.

What does the catalogue say about durability?

The catalogue states that the pivot spreads and balances the load, which reduces sag and deformation of the leaf and cuts wear on the hardware parts.

Which finishes are offered?

The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, with bronze, stone, black and timber tones shown in the scenes.

Can we sample it before ordering?

Yes. A profile set and a finished test door are available on request, with the lead time confirmed on the enquiry.
