Door Systems · Casement door
35X16 Casement Door
The minimalism tier of the casement range: a hinged leaf on the narrowest frame, six catalogue finishes.
35X16 MINIMALISM SERIES CASEMENT DOOR · application scenes
The slim line of the casement range
The 35X16 is the minimalism tier of our casement doors, a hinged leaf on the narrowest frame in the casement range. The catalogue draws it for bathrooms, kitchens and corridors, the wet and hard-working rooms where a full-height glass leaf reads lighter than a solid panel. The frame stays slim around the glass, so the door carries more glazing and less metal, and the room keeps its light. Every detail on this page comes from the production catalogue: the feature sheet, the finish list and the hardware set. For sizes beyond the catalogue, the dimensional pack and the hardware layout are quoted against the opening.
Key features
Four things it brings to the opening
Specification
The numbers, as published.
Values below are the published specification of the 35X16 Casement Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.
- Opening
- Hinged casement leaf
- Profile series
- 35X16 minimalism, per catalogue
- Aluminium
- 6063-T5 primary aluminium
- Surface finish
- Heat-transfer print, fine texture, smooth to the hand
- Glazing
- Double-glazed insulating glass unit
- Sound & thermal
- Insulating unit rated for sound and heat per the catalogue
- Hardware
- Lever handle and lock set, black finish
- Standard finishes
- Jazz black · jazz glazed white · porcelain silver grey · jazz fluorocarbon grey · jazz moonlight grey · cream grey
- Dimensional pack
- Supplied with quotation

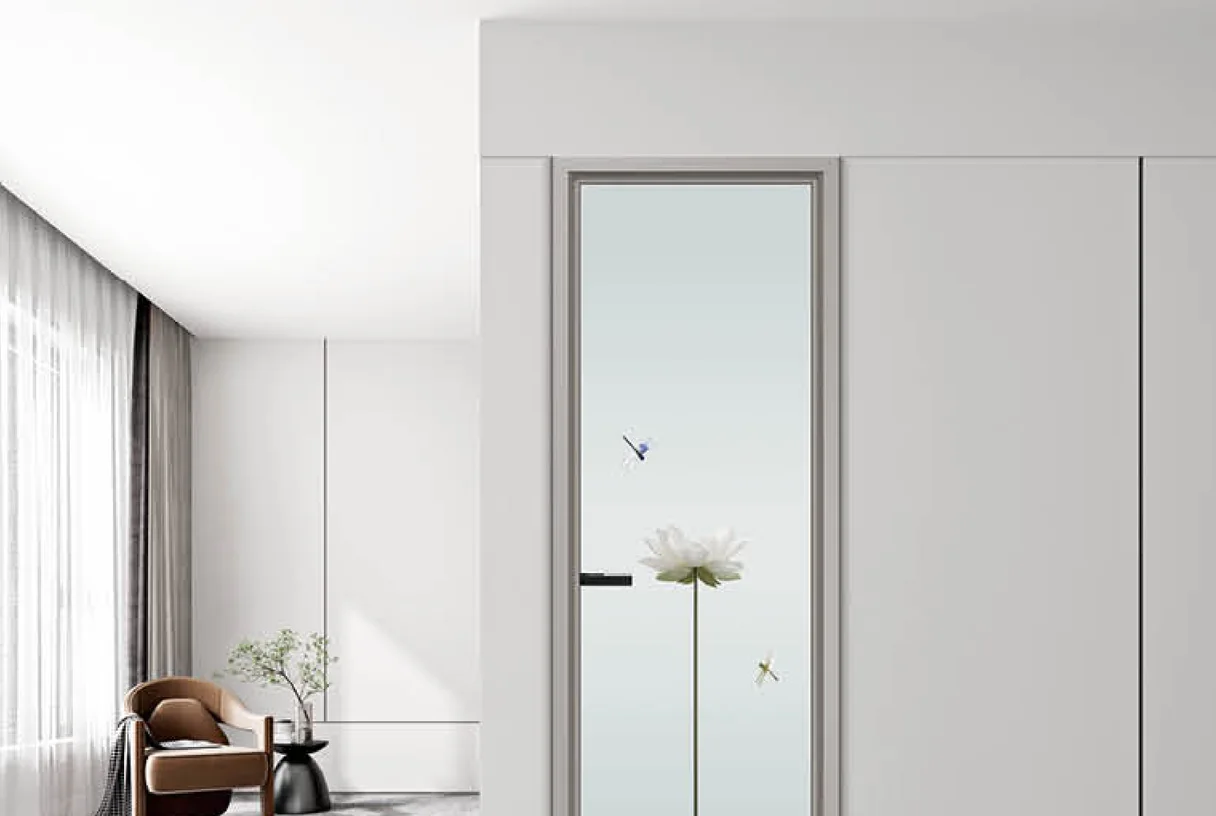

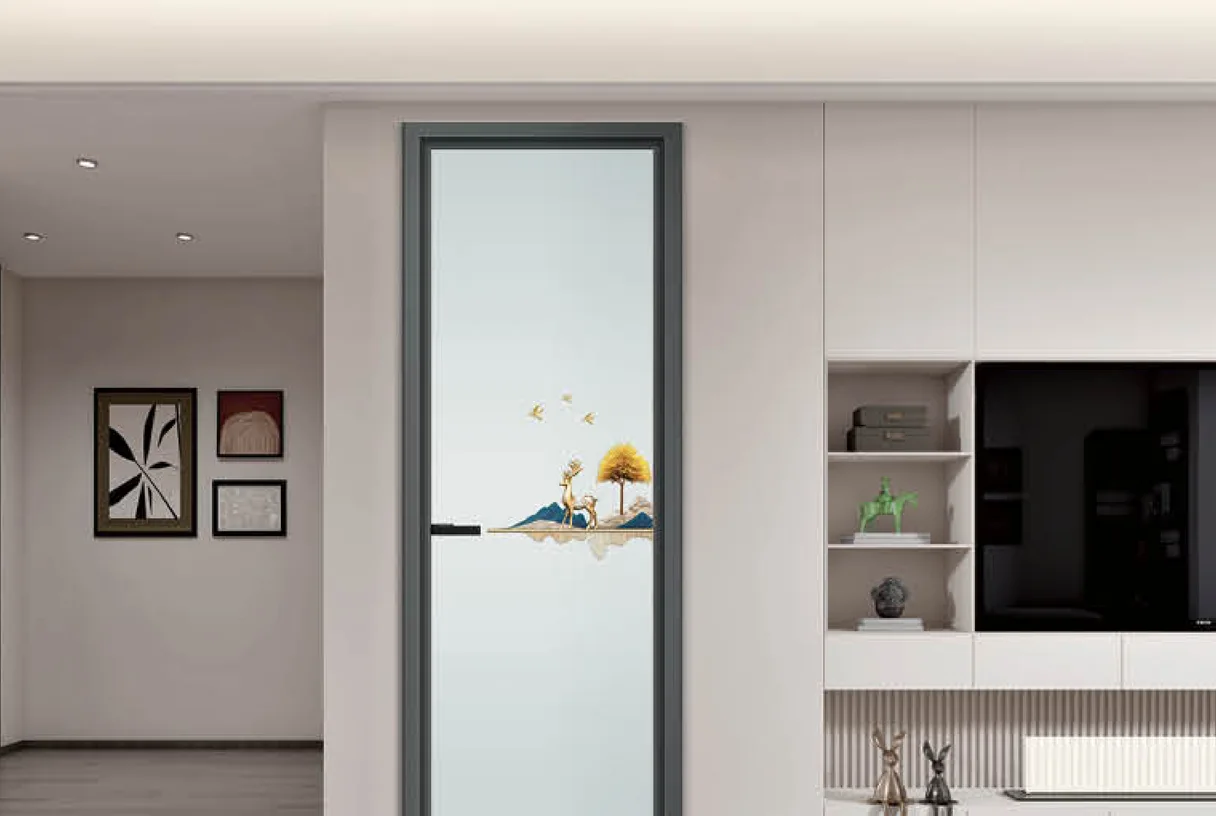

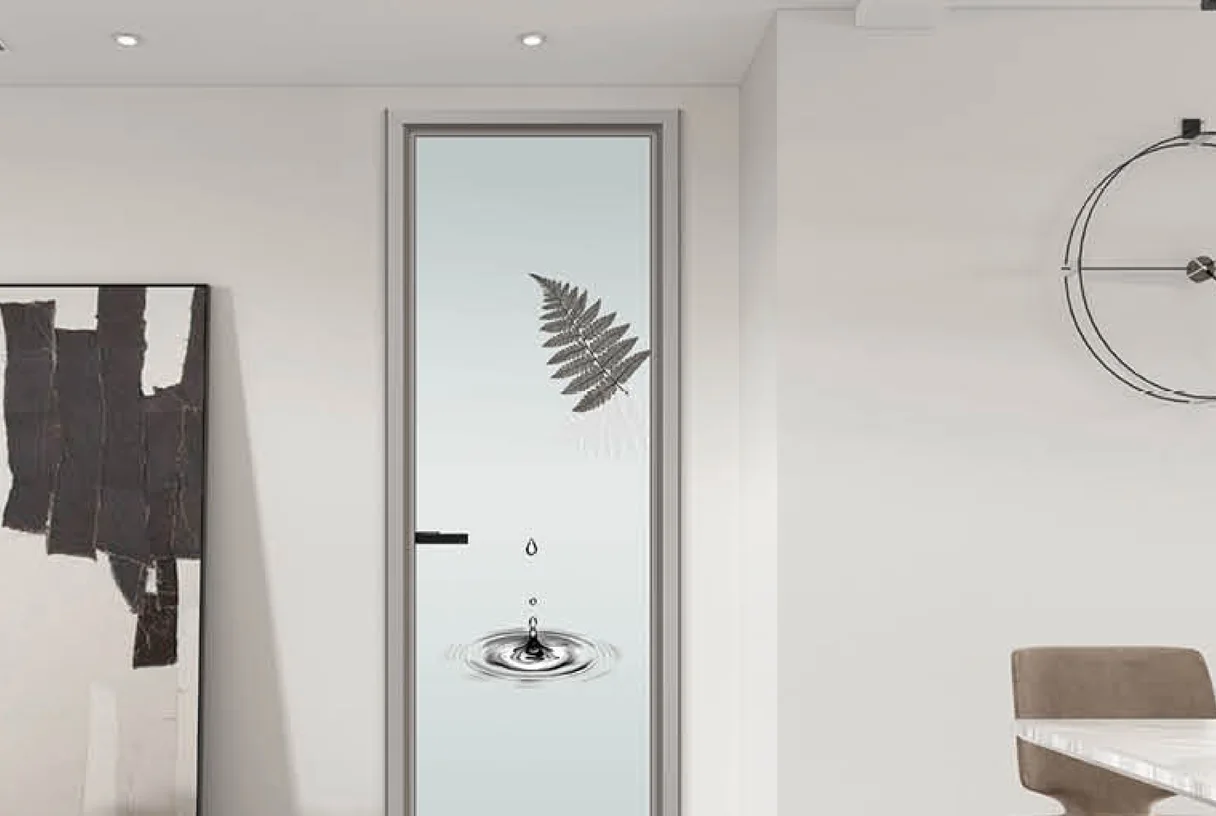

Gallery
More views of the series
Configurations
Three ways to build the opening

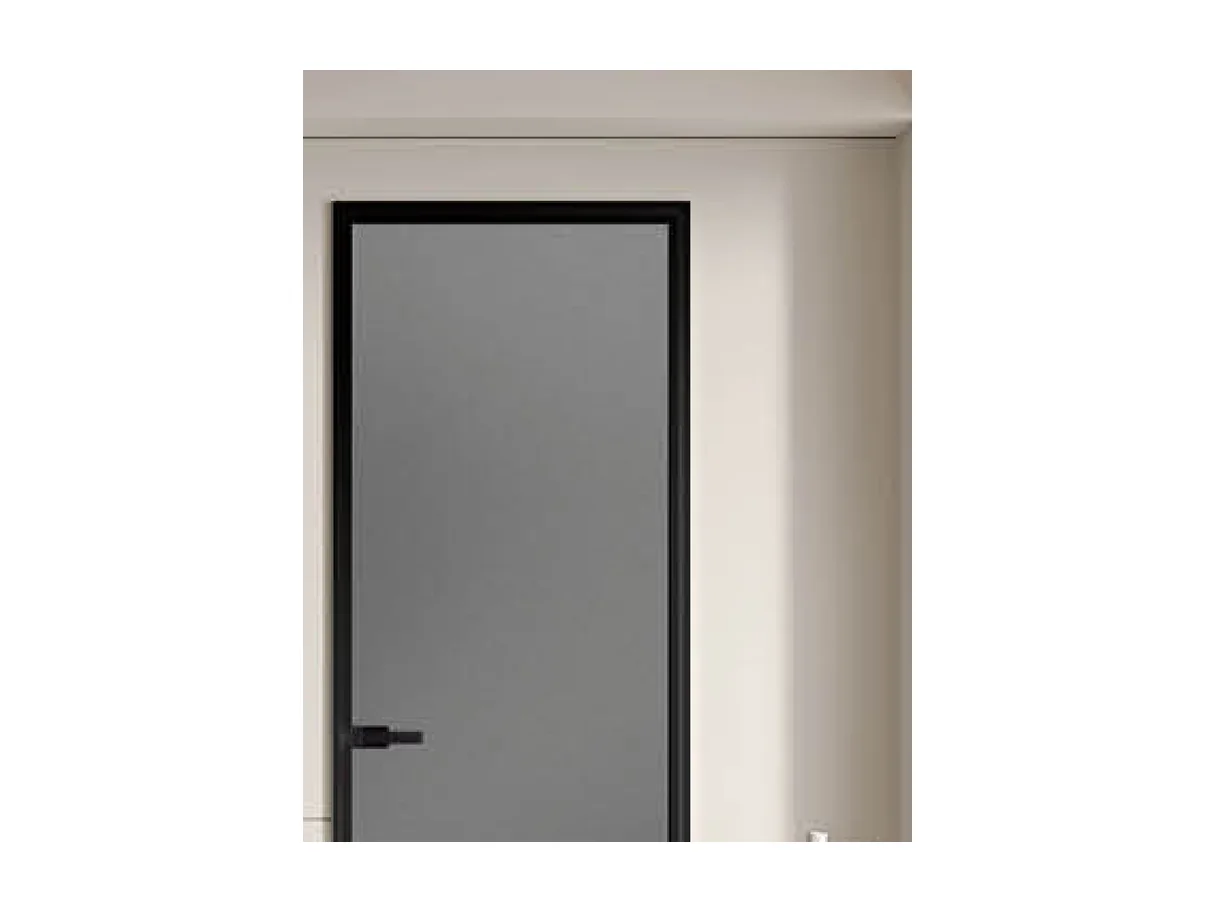

Details
Close-up views
Colours
Standard finishes
- Jazz blackext / int
- Jazz glazed whiteext / int
- Porcelain silver greyext / int
- Jazz fluorocarbon greyext / int
- Jazz moonlight greyext / int
- Cream greyext / int
Catalogue finish names; RAL equivalents and two-tone exterior/interior combinations are confirmed on request against physical swatches.
Profile, surface and glazing
The leaf is built on 6063-T5 primary aluminium, the grade used across our window and door lines, chosen for strength and for resistance to corrosion and wear. The surface takes a heat-transfer print, which the catalogue gives a clear grain and a fine, smooth feel. The glazing is a double-glazed insulating unit, and the catalogue rates it for sound and heat, so a small room stays quieter and holds its temperature. The aluminium body carries the same corrosion and weather resistance, which is why the sheet lists the series for damp interiors. A lever handle and lock set is fitted in a black finish that matches the frame.
Wet rooms and daily use
The catalogue places the series in bathrooms, kitchens and other moist interiors, and calls out its water and moisture resistance for those rooms. A glazed hinged leaf suits a bathroom or a kitchen because it keeps the light moving between spaces while closing the room off. The narrow frame lets the door sit in a standard opening without crowding the wall around it, and full-height glass gives a small room a sense of depth. The leaf swings on its hinges rather than running on a track, so the floor beside it stays clear.
Finishes
Six catalogue finishes are standard on the 35X16: jazz black, jazz glazed white, porcelain silver grey, jazz fluorocarbon grey, jazz moonlight grey and cream grey. The set runs from a deep black through two whites and three greys, so the door can sit quiet against a painted wall or carry a room as a dark accent. RAL equivalents and two-tone combinations are confirmed against physical swatches on request.
OEM and project supply
The 35X16 is supplied on the same OEM basis as the rest of the door range: private-label packing, project documentation and export-standard containers. A profile set and a finished test door are available for review before a project commits. Send the opening size, the hinge side and the destination market, and the quotation returns with the full dimensional pack.
Factory-direct
Who is behind the profile
Documentation
Brochure & spec sheetThe full c3516 brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.
Request the brochureMarket versions
This series, specified for your market
Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.
FAQ
Asked on every 35X16 Casement series project
What is the 35X16 casement door?
It is the minimalism tier of our casement range: a hinged leaf on the narrowest frame in the range, built on 6063-T5 primary aluminium with a double-glazed insulating unit and six catalogue finishes.
Where does the catalogue place it?
In bathrooms, kitchens and corridors, the moist and hard-working interiors where a glazed hinged leaf reads lighter than a solid panel. The sheet also calls out its water and moisture resistance.
What glass is standard?
A double-glazed insulating glass unit, which the catalogue rates for sound and heat. Frosted, patterned and decorative glass fit the same frame as options.
Which finishes are standard?
Six: jazz black, jazz glazed white, porcelain silver grey, jazz fluorocarbon grey, jazz moonlight grey and cream grey. RAL equivalents are confirmed on request.
How does the leaf open?
It swings on its hinges on the frame rather than running on a track. The lever handle and lock set is fitted in a black finish that matches the frame.
Can we sample it before ordering?
Yes. A profile set and a finished test door are available on request, with lead time confirmed on the enquiry.
The rest of the range
Pairs with our window series
Casement
50 Series Casement Window
Casement · Thermal break
110 Series 6-Chamber Casement Window 2.0
Casement · Thermal break
112 Series Thermal-Break Casement WindowThe full range spans 28 production door series, grouped by opening type in the door hub.
Ready to specify the 35X16 Casement Door?
Send your opening size, panel layout and destination market, and we reply with a quotation, the dimensional pack and sample options.
