Services
Spec Sheets and Dimensional Packs for Your Opening
Everything a project needs ships with the quotation: the spec sheet, the dimensional pack, the hardware layout and the packing plan, written for the series and the opening you are quoting and sent to you on PDF over WhatsApp. Adam Alux Systems has produced aluminium windows, doors and profiles since 1997 across three bases in China and supplies export markets. This page sets out what the pack contains and how to ask for it.
Section drawings from the dimensional pack, issued on PDF with the quotation
The dimensional pack on PDF
Every quotation carries a dimensional pack. It sets out the section drawings and the frame or sash dimensions for the series you are quoting, so a fabricator or a contractor can read the profile against the opening rather than working from a general catalogue figure. The pack is issued on PDF, and it is the document most projects start with.
CAD drawings on request

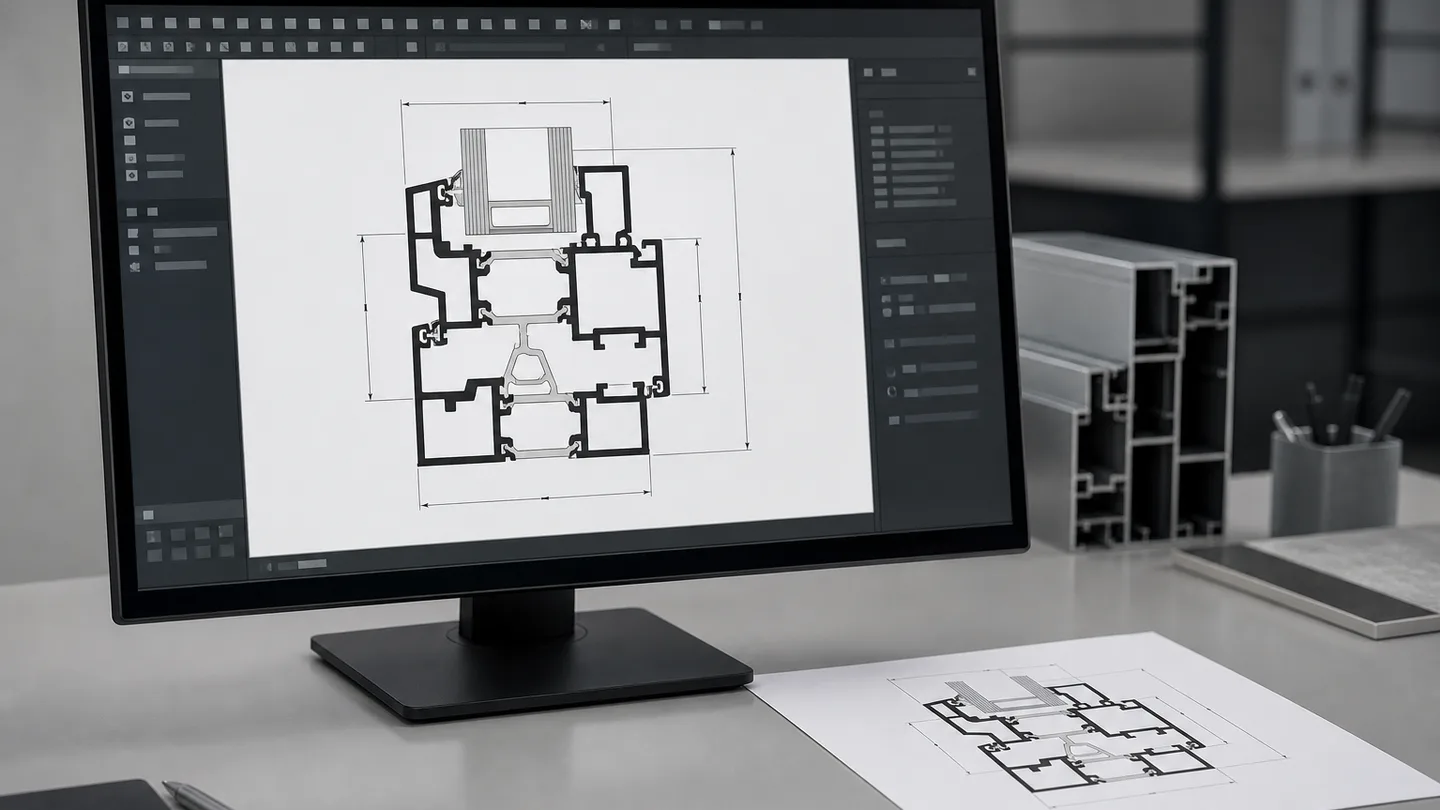

Where the workshop needs the geometry in its own drafting software, CAD drawings of the sections are supplied on request. That lets the cut list and the shop drawing be set against the same numbers the factory works to. The CAD set follows the same series and configuration as the PDF pack, so nothing drifts between the two.
The hardware layout
The pack also covers hardware: the multi-point lock layout, the hinges or the roller set that suits the series, and where each piece sits on the frame. A workshop planning a fabrication line wants this before it orders tooling, and it is part of the standard quotation rather than an extra.
The finish and colour sheet
Each series carries its own finish list, from the standard anodised and thermally transferred colours to the fluorocarbon coats. RAL matching and two-tone exterior and interior work are set out on the same sheet, so the colour is fixed with the rest of the specification rather than after it.
The packing plan
For an export order, the pack closes with a packing plan: how the units or the loose profiles are protected and loaded for the container. It is written around the sea leg and the destination, and it matches the private-label packing where the order runs under a customer's own brand.
How the pack reaches you
Three steps, all on WhatsApp. Send the opening dimensions, the series you are looking at and the destination market; the reply confirms the series and returns the spec sheet and dimensional pack on PDF; CAD drawings and the hardware layout follow on request, set against the same numbers the factory works to. Where the opening is not fixed yet, send a photo of the site or a sketch of the schedule instead of a dimension list, and a series can still be recommended from it.
Who needs which document
The same pack serves three roles on a project, and the order in which each one reads the documents differs. The table sets out what each role starts from and what it holds before the order is placed, so the right drawing reaches the right desk first.
| You are | You start with | You hold before ordering |
|---|---|---|
| Fabricator | CAD section drawings | Hardware layout and the tooling list |
| Contractor | Dimensional pack on PDF | Finish sheet and the installation detail |
| Importer or customs | Packing plan and loading list | CE declaration and certificate of origin |
How to request the pack
The WhatsApp button on this page opens a chat with the page already identified. Send the opening dimensions, the series and the destination market, and attach the schedule, a site photo or a hand sketch where that is quicker than typing numbers. The pack comes back on PDF against your own module rather than as a catalogue file, which is why nothing on this page is offered as a one-click download. Where the opening is still being fixed, the series recommendation can run from the photo or the sketch, and the documentation follows the decision.
FAQ
Frequently asked
How do I get the spec sheet?
Send the opening dimensions, the series and the destination market on WhatsApp. The spec sheet and dimensional pack come back on PDF, written for your series and your opening. Nothing is offered as a direct download, because a generic file would not match a real module or its hardware.
What does the dimensional pack contain?
Section drawings and the frame or sash dimensions for the quoted series, issued on PDF. It lets a fabricator or contractor read the profile against the actual opening rather than from a catalogue figure.
Can we get CAD drawings?
Yes, on request. CAD drawings of the sections follow the same series and configuration as the PDF pack, so the cut list and the shop drawing are set against the same numbers the factory works to.
Does the pack cover hardware and finishes?
Yes. It carries the hardware layout for the series, the finish and colour sheet with RAL matching and two-tone options, and, for an export order, the packing plan for the container.
Are the CAD files editable?
Yes. The CAD set is issued as editable section drawings rather than flattened images, so the cut list and the shop drawing are set against the same geometry, and the workshop works from its own software.
Is the CE declaration valid for my market?
The window and door range holds CE attestation under EN 14351-1, certificate no. M.2024.206.C101817 from UDEM. Where the destination market carries its own standard, the certificate page sets out the covered scope, and the matching documents for the order are confirmed with the quotation.
Can the pack be issued under our own brand name?
Yes, where the order runs under a private label, the documentation, from the dimensional pack to the loading list, is issued on your letterhead. The OEM and ODM page carries that route in full.
What about MOQ?
The pack does not carry a fixed minimum, because the quantity depends on the series and the opening. Each quotation lists the quantity per series for the container plan, with the dimensional pack alongside, and sample profiles and a finished test unit are available before you commit to production. WhatsApp is the quickest channel for MOQ and pricing.
Send your opening schedule
Series, glazing and finish come back as one quotation, with the full dimensional pack on PDF and CAD on request.
