Xiangyun Arc Entrance Door

The arc line: a curved leaf that seats closely to the frame for sealing and space in narrow openings.

XIANGYUN ARC DOOR SERIES · application scenes

An arc leaf that follows the frame

The Xiangyun series is the arc door of the AURORA range. The catalogue prints it on printed pages 085 to 094 and draws the leaf and the head as a curve rather than a straight line, so the door runs in one sweep from jamb to jamb. The arc sets the series apart inside the entrance range, where the other lines are squared or squarely glazed. Every image and every line on this page is taken from the production catalogue.

ArcCurved leaf and head line

HighSpace utilisation, catalogue

Single / doubleLeaf layouts

On requestFinishes and samples

Key features

Four things it brings to the opening

01Arc structure seats to the frameThe catalogue gives the series a curved leaf and frame that seat closely, which reduces air exchange between inside and outside.

02Thermal and sound benefitThe catalogue ties the close-seating arc structure to better heat preservation and sound insulation across the sealed door.

03High space utilisationThe catalogue lists the series for narrow and irregular openings, where the curved leaf follows the wall line better than a square frame.

04Styles for many interiorsThe catalogue states the grand arc face fits a range of decoration styles, drawn across classical stone and stucco settings.

Specification

The numbers, as published.

Values below are the published specification of the Xiangyun Arc Entrance Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Opening: Single and double leaf arc door
Door style: Arc door with a curved head line
Structure (catalogue): Arc leaf and frame designed to seat closely
Sealing (catalogue): Arc structure fits the frame and reduces air exchange
Insulation (catalogue): Supports heat preservation and sound insulation
Application (catalogue): Narrow or irregular openings
Frame: Aluminium, per the catalogue scenes
Hardware: L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks
Finishes: Confirmed against the catalogue and samples on request

Request the full dimensional pack

Gallery

More views of the series

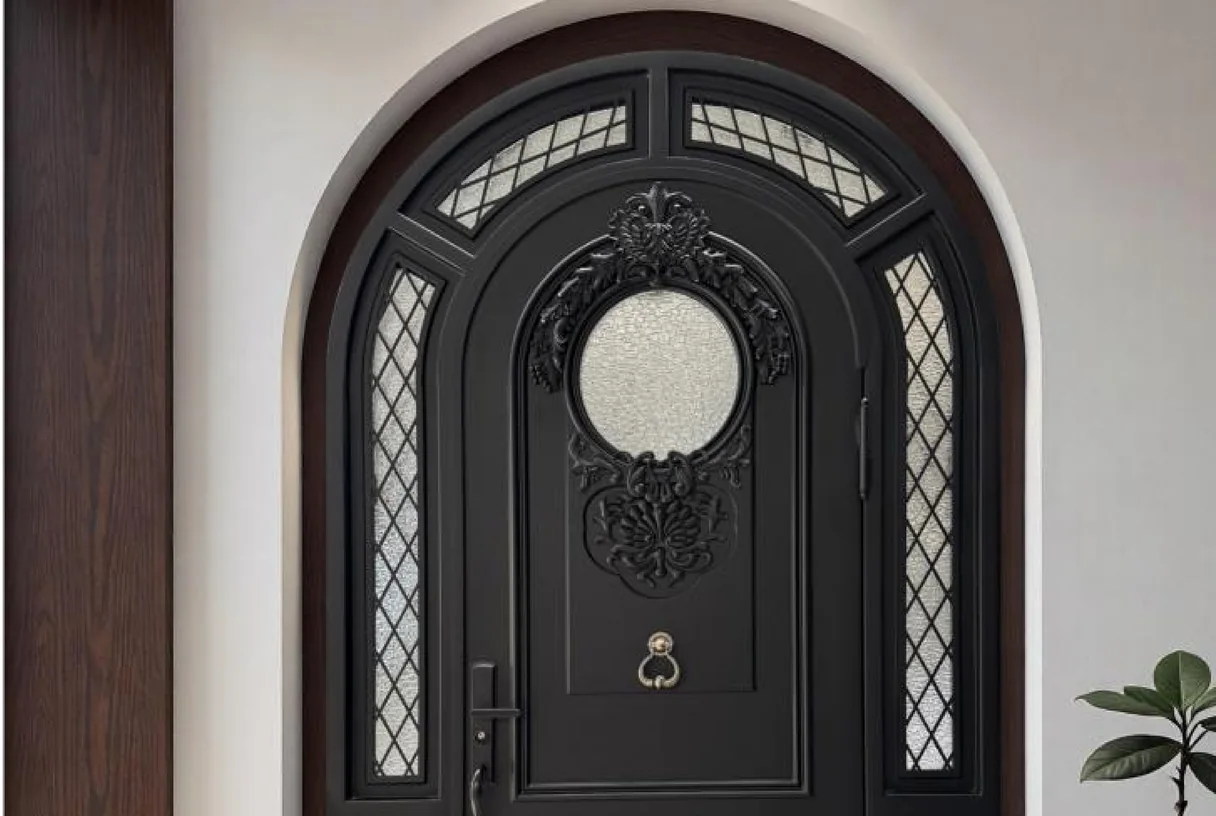

Black aluminium arc entrance door with a round glass window and ironwork beside a garden tree, design rendering — Black arc door with a round glass window and ironwork, garden setting, design rendering

Black aluminium arc entrance door with iron scrollwork and glass panes between two wall lanterns, design rendering — Black arc door with iron scrollwork between two lanterns, design rendering

Dark aluminium arc entrance door set within a classical carved stone colonnade, design rendering — Dark arc door within a classical stone colonnade, design rendering

Dark aluminium arc entrance door with glass panes set under a smooth stucco arch, design rendering — Dark arc door with glass panes under a stucco arch, design rendering

Configurations

Three ways to build the opening

Classical arcA bronze or stone-toned arc leaf with a decorative head, as in the catalogue classical scenes.

Ironwork arcAn arc leaf with iron scrollwork and a round glass window, as in the catalogue garden scenes.

Glazed arcAn arc leaf with clear glass panes and a slim arc frame.

Details

Close-up views

Technical render of the arc door frame with head, meeting and sill sections around the curved leaf — Technical view: arc door frame sections with the curved leaf

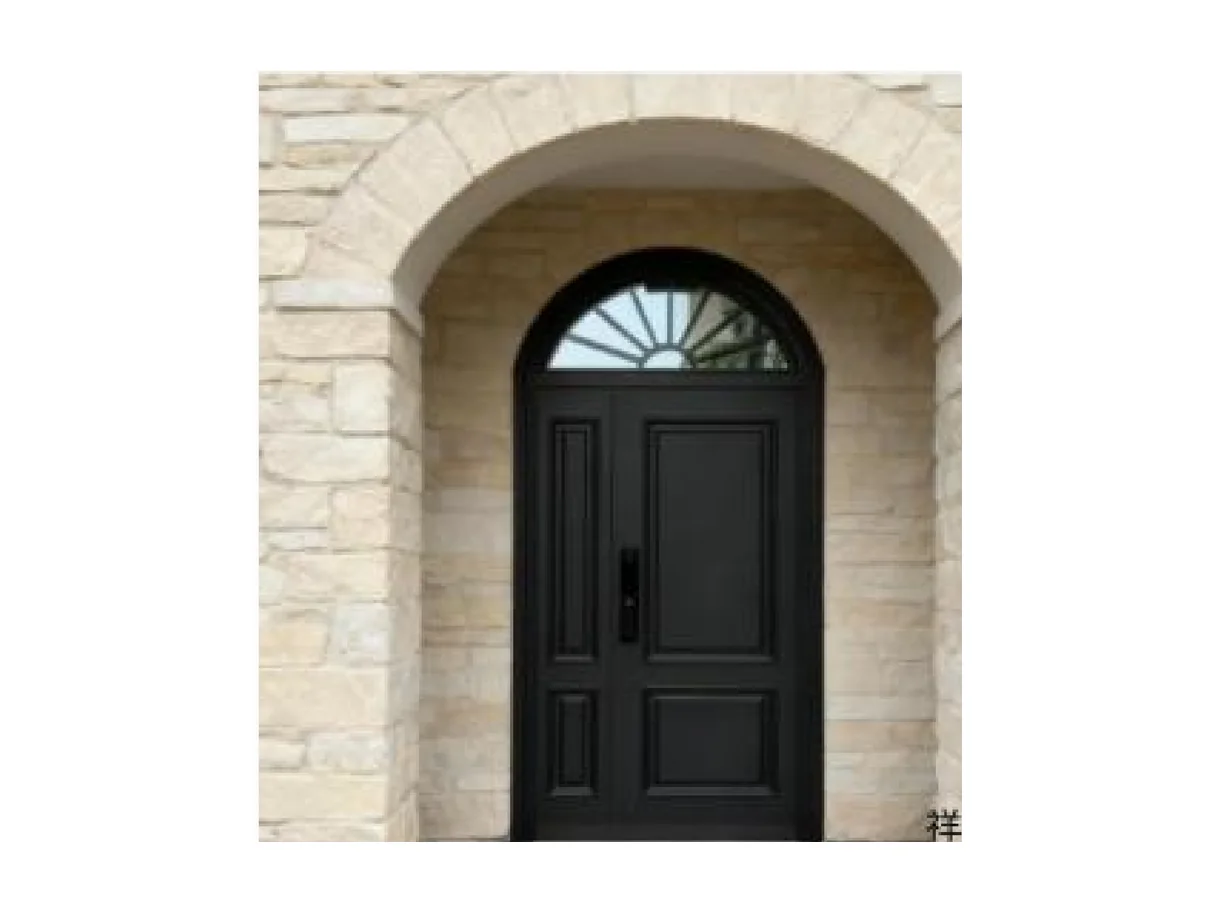

Front view of a black aluminium arc entrance leaf with a half-round glazed window set into a stone arch — Product view: black arc leaf with a half-round window

Front view of a blue-grey aluminium arc entrance leaf with a decorative arched head and brass hardware — Product view: blue-grey arc leaf with a decorative head

Sealing and space from the curved structure

The catalogue prints a structural design note on printed page 085 and ties three points to the arc leaf. The curved structure fits the door frame closely, which reduces air exchange between inside and outside and supports heat preservation and sound insulation. The leaf suits narrow and irregular openings, where the curve follows the wall line better than a square frame. The catalogue adds that the grand arc face fits a range of decoration styles.

Those three points are the ones the page carries, and they are the facts this page repeats.

Frame, glazing and styles

The leaf runs on an aluminium frame, drawn in the catalogue across bronze, black and blue-grey tones and set with clear, patterned or ironwork glazing. The scenes place the arc door in classical stone colonnades, stucco arches and garden walls, with lanterns and topiary beside the frame. The head carries the curve through the glazed opening, and the lower leaf stays plain or panelled. Leaf sizes, glazing and the head radius are quoted against the project opening.

Finishes and hardware

The catalogue carries no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, and the scenes show bronze, black, blue-grey and stone tones. Hardware runs to the smart-lock options the catalogue lists on printed page 095: the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded split locks. The brochure prints no RAL numbers for this series, so a project colour is matched against a physical sample.

OEM and project supply

The Xiangyun arc door leaves the factory on the same private-label basis as the rest of the AURORA range: own-brand packing, project documentation and export-standard containers. A profile set and a finished test door are available for review before a project commits, and the arc radius, the glazing and the hardware set are fixed against the opening. Send the opening size, the arc style and the destination market, and the quotation returns with the full dimensional pack.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

RAL matchingOn request

Documentation

Brochure & spec sheet

The full entxiangyun brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Xiangyun series project

What is the Xiangyun arc door?

It is the arc line of the AURORA entrance range, printed on catalogue pages 085 to 094, with the leaf and head drawn as a curve so the door runs in one sweep across the opening.

What does the catalogue say about sealing?

The structural note on catalogue page 085 states that the curved structure fits the door frame closely, which reduces air exchange and supports heat preservation and sound insulation.

Where is the series used?

The catalogue lists it for narrow and irregular openings, where the curve follows the wall line, and draws it in classical stone colonnades, stucco arches and garden walls.

What glazing can the arc leaf take?

Clear, patterned and ironwork glazing, set into bronze, black and blue-grey leaves per the catalogue scenes. The catalogue shows a round and a half-round glass window in some leaves.

Which finishes are offered?

The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, with bronze, black, blue-grey and stone tones shown in the scenes.

Can we sample it before ordering?

Yes. A profile set and a finished test door are available on request, with the lead time confirmed on the enquiry.
