110 Series 5-Chamber Thermal-Break Casement Window
The workhorse of the thermal-break range · 5 chambers, 1.4 mm.

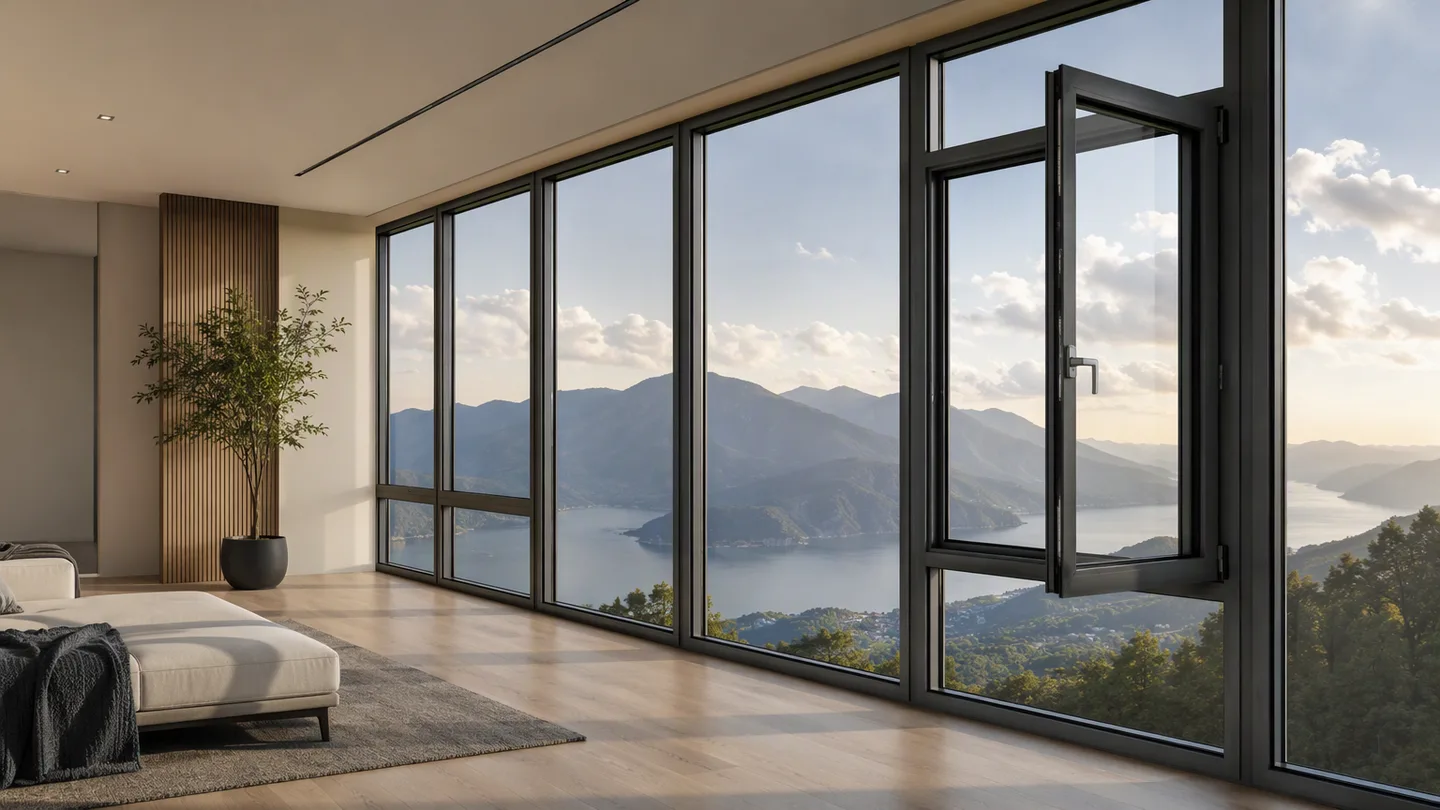

110 FIVE CHAMBER THERMAL-BREAK CASEMENT WINDOW 1.4 · application scenes
Thermal break at volume price points
The 110 series five-chamber casement window is the volume line of our thermal-break range: a 110 mm deep profile with a polyamide bridge, 1.4 mm wall thickness and a five-chamber body that balances stiffness, insulation and cost for high-volume residential and mixed-use projects.

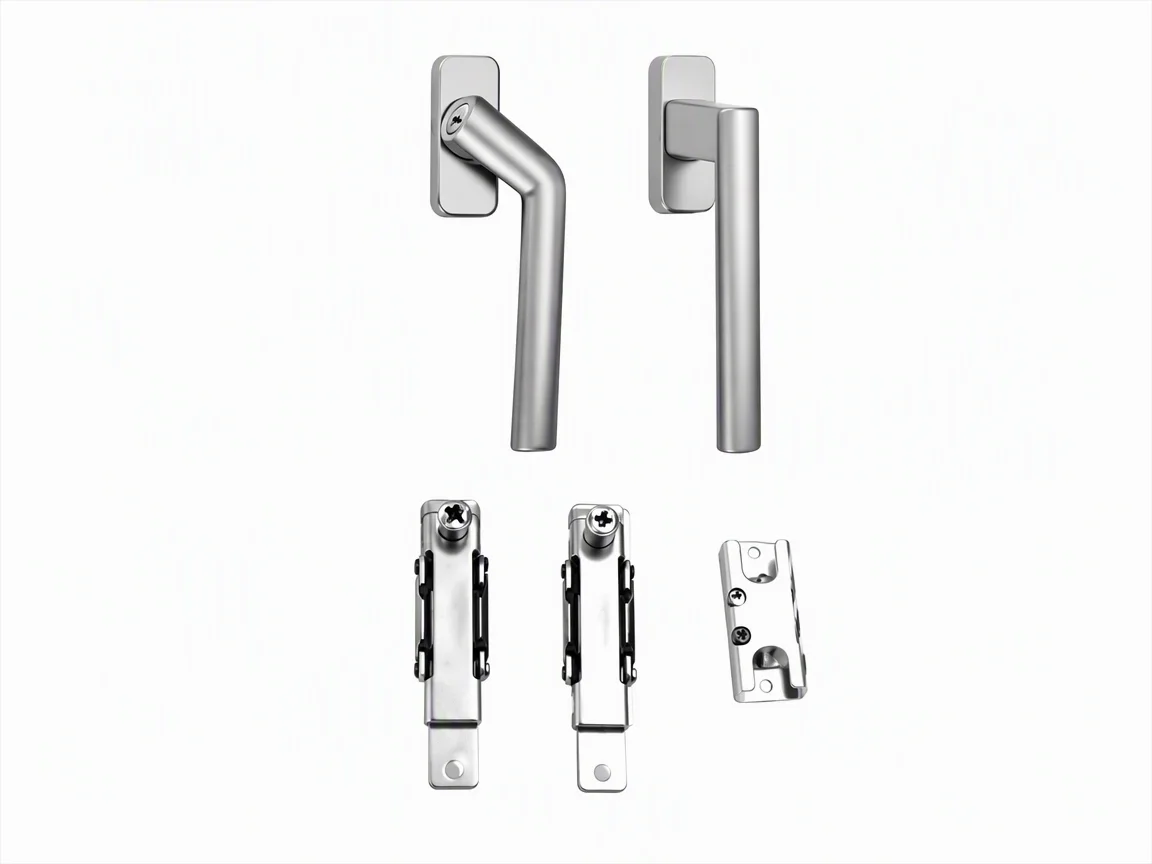

It is our default recommendation when a specification calls for a thermal-break casement at volume price points. The multi-point hardware layout, EPDM foam sealing and standard 5-20A-5 insulating glass are part of the base configuration.
Built-in features
Eight features, standard on the line.
- 016063-T5 A-grade primary aluminium · high strength, high crack resistance
- 02Multi-chamber profile body: layered sound insulation, thermal blocking, higher pressure resistance
- 035 mm insulating glass with integrated bent spacer bars
- 04Thermal-break design forming an effective cold/hot bridge barrier, cutting overall energy use
- 05High-transparency, rust- and corrosion-resistant insect screen · better daylight, stronger insect protection
- 06EPDM foam gaskets, aging-resistant, raising the sealing and water-tightness grades
- 07Drainage design for fast water discharge and easy cleaning
- 08Low-profile glazing bead resists dust build-up, widens the sightline and lifts the wind-load index
Gallery
More views of the series
Specification
The numbers, as published.
Values below are the published specification of the 110 Series 5-Chamber Thermal-Break Casement Window. The complete dimensional and hardware-layout pack (section drawings, gasket schedule, hardware set) is supplied with the quotation.
- Opening
- Casement (hinged), multi-point lock
- Profile depth
- 110 mm
- Chamber structure
- 5 chambers, polyamide thermal-break bridge
- Wall thickness
- 1.4 mm
- Insulating glass
- 5 mm - 20 A - 5 mm · single / double / triple
- Sealing
- EPDM foam gaskets, open drainage
- Insect screen
- High-transparency mesh, standard
- Standard finishes
- Thermal transfer: sand grey, coffee · RAL and two-tone on request
- Dimensional pack
- Supplied with quotation
Colours
Standard finishes
- Sand greyext / int
- Coffeeext / int
Visual reference only · production colours to RAL or matched swatch, two-tone exterior/interior supported on the thermal-transfer line.
Profile & engineering
The five chambers are arranged around the thermal-break bridge. The outer ones manage drainage and stiffen the sash against wind load; the inner ones carry the glazing bead and the hardware. The 1.4 mm wall thickness is the entry point of the thermal-break line, sized for standard residential lights. Where the project needs extra section stiffness, the six-chamber 2.0 version of the same 110 line takes over. Standard glass is 5 mm-20 A-5 mm insulating, with integrated bent spacer bars, and single, double and triple glazing configurations fit the same sight-line.
Where it performs
Residential towers, townhouse blocks, school and hospital buildings, and other projects specified to a thermal-break casement with a volume budget. The multi-point locking layout and EPDM perimeter seal hold up across large sashes and high-rise exposure.
Finishes & customisation
Standard colours are sand grey and coffee, each available for exterior and interior faces. RAL matching and two-tone exterior/interior combinations are supported on the thermal-transfer line. The insect screen is standard: high-transparency, corrosion-resistant mesh.
OEM & project supply
OEM terms as for the full window range: private-label packing, project documentation, export-standard containers. Samples of the 110 series profile and a finished test window are available before commit. Send your module size, floor height range and glazing configuration for a quotation with the dimensional pack.
Market versions
The same series, quoted for your market
Each market page adds the local section on top of the published specification: the codes and certification position, the glazing the schedule calls for, and the container plan.
FAQ
Asked on every 110c series project
What insulating glass is standard on the 110 series 5-chamber window?
5 mm-20 A-5 mm insulating glass with integrated bent spacer bars; single, double and triple glazing configurations are available in the same sight-line.
Can we get samples of the 110 series before committing?
Yes. Sample profiles and a finished test window are available on request, matched to your glazing and colour choices.
Do you support OEM / private label on this series?
Yes · RAL-matched finishes, private-label packaging and project documentation are part of our standard OEM programme.
