Market · the United States
110 5-Chamber Casement Window for the United States
The 110 Series 5-Chamber Thermal-Break Casement Window is configured here for the United States. The figures below are the published catalogue specification of the series; the market section covers what projects in the United States add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.

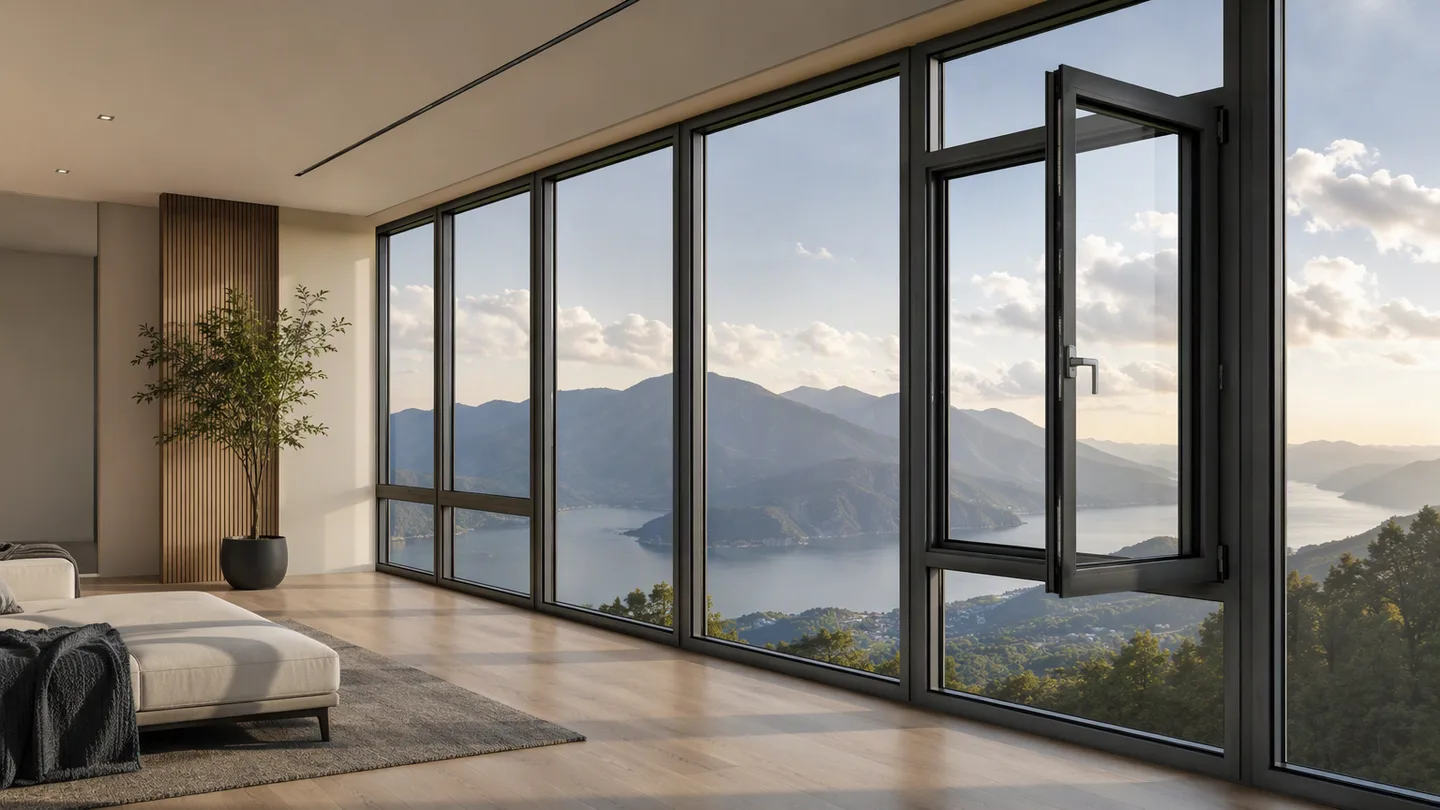

110 Series 5-Chamber Thermal-Break Casement Window · the USA
110 Series 5-Chamber Thermal-Break Casement Window
The workhorse of the thermal-break range · 5 chambers, 1.4 mm. The complete configuration, glass options and finish list are on the window series page.
- Opening
- Casement (hinged), multi-point lock
- Profile depth
- 110 mm
- Chamber structure
- 5 chambers, polyamide thermal-break bridge
- Wall thickness
- 1.4 mm
- Insulating glass
- 5 mm - 20 A - 5 mm · single / double / triple
- Sealing
- EPDM foam gaskets, open drainage
- Insect screen
- High-transparency mesh, standard
- Standard finishes
- Thermal transfer: sand grey, coffee · RAL and two-tone on request
- Dimensional pack
- Supplied with quotation
Engineering
6063-T5 A-grade primary aluminium · high strength, high crack resistance
Multi-chamber profile body: layered sound insulation, thermal blocking, higher pressure resistance
5 mm insulating glass with integrated bent spacer bars
Thermal-break design forming an effective cold/hot bridge barrier, cutting overall energy use
High-transparency, rust- and corrosion-resistant insect screen · better daylight, stronger insect protection
EPDM foam gaskets, aging-resistant, raising the sealing and water-tightness grades
Drainage design for fast water discharge and easy cleaning
Low-profile glazing bead resists dust build-up, widens the sightline and lifts the wind-load index
What US projects require
Glazing rules tighten in the high-velocity hurricane zones: the code requires impact-rated glazing and defined structural performance on the exterior envelope, and most spec writers work from the ASTM and Florida building code framework as the reference point. In practice the glazing build-up, the frame section and the hardware have to be stated on the quotation, line by line, against your zone and wind-borne debris category.
Adam Alux does not hold US test certifications. The bridge is the specification process: send the zone, the debris category and the opening schedule, and the glazing build-up, frame section and hardware layout come back confirmed against that project at quotation, with a finished test unit available before production.
Shipping to US ports
Modules ship in export-standard containers sized around the opening: glazed units travel upright with corner and edge protection for the trans-Pacific line. The loading plan, including modules per container for your mix, comes with the quotation, because it depends on frame depth and glass build-up rather than a fixed table.
Freight and port handling are confirmed per shipment, and transit time is quoted at order. Packing list and conformity documentation travel with the container.
Projects in the United States
apartment · day scene
Mid-rise apartments, brick podium
A brick podium carries a lighter upper volume, with a regular grid of framed windows and juliet balconies.
villa · day scene
Contemporary villa, lighted panel facade
Contemporary villa with a vertically lighted panel facade and warm evening accents.
villa · day scene
Modern villa, two volumes
A two-volume modern villa in white and dark cladding, with a pool-side elevation.
FAQ
Frequently asked
Do your aluminium windows and doors ship to the USA?
Yes. The range ships to US ports in export-standard containers, and the loading plan for your opening mix is included with the quotation.
How is hurricane-zone glazing handled on a quotation?
The glazing build-up for a designated zone is confirmed line by line against your debris category at quotation. A finished test unit is available before production.
What insulating glass is standard on the 110 series 5-chamber window?
5 mm-20 A-5 mm insulating glass with integrated bent spacer bars; single, double and triple glazing configurations are available in the same sight-line.
Can we get samples of the 110 series before committing?
Yes. Sample profiles and a finished test window are available on request, matched to your glazing and colour choices.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for the United States, with the full dimensional pack on PDF and CAD on request.
