M-24 Off-Axis Pivot Door Series

The statement entrance of the collection: a full-height off-axis pivot leaf and six smart entry functions.

M-24 OFF-AXIS PIVOT DOOR SERIES · application scenes

The statement entrance of the collection

The M-24 is the off-axis pivot door of our entrance collection. The catalogue draws a full-height leaf that turns on a pivot set off its own axis, so a wide entrance swings from a single off-centre point and the leaf face stays one panel. The series is catalogued across modern entrances, from a stone-clad villa front to a courtyard opening onto a garden.

Every rating and function on this page is read from the catalogue spreads. Where a project needs sizes or hardware beyond the catalogue, the dimensional pack travels with the quotation.

42 dBCatalogue sound rating

Class 3Catalogue water tightness

6Smart entry functions

5Performance indicators

Key features

Four things it brings to the opening

01A leaf on an off-axis pivotThe catalogue hangs the leaf on a pivot set off its own axis, so a wide entrance swings from a single off-centre point and the closed face reads as one uninterrupted panel.

02Catalogue ratings on the spreadsFour figures are printed with the series: 42 dB sound insulation, Class 3 water tightness, heat conduction cut by more than 70% and noise from the seal strip cut by more than 90%. Each one is a catalogue rating.

03A sealed frame-to-sash jointFour special seal strips close the joint between frame and sash, paired with water blocking, drainage and anti-backflow details, which is the build behind the Class 3 catalogue water rating.

04Six smart entry functionsWireless remote, an app system, video surveillance, a door opening system, a security system and a defence system are catalogued as the smart set for the leaf.

Specification

The numbers, as published.

Values below are the published specification of the M-24 Off-Axis Pivot Door Series. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Opening: Off-axis pivot leaf, single
Leaf profile: 3 mm aluminium alloy profile, hardness more than 80% above a common aluminium profile
Performance indicators: Thermal insulation · water tightness · air tightness · wind resistance · sound insulation
Sound insulation: 42 dB, catalogue rating
Water tightness: Class 3, catalogue rating
Thermal: Heat conduction reduced by more than 70%, catalogue rating
Sealing: Automobile-grade seal strip, noise reduced by more than 90%, catalogue rating
Smart entry: Wireless remote · app system · video surveillance · door opening · security · defence
Dimensional pack: Supplied with quotation

Request the full dimensional pack

Gallery

More views of the series

Off-axis pivot entrance door in imitation wood grain under a canopy beside a full-height glass wall, design rendering — Imitation wood-grain pivot leaf under a canopy, design rendering

Bronze pivot entrance door with a radiating sunburst pattern between mirrored side panels, design rendering — Bronze sunburst pivot leaf on a stone plinth, design rendering

Slim black pivot door leaf with a full-height glazed surround reflecting a garden, design rendering — Slim black leaf with a full-height glazed surround, design rendering

Dark pivot entrance leaf with a diamond pattern, a narrow side light and a stone jamb, design rendering — Dark leaf with a diamond pattern and a side light, design rendering

Configurations

Three ways to build the opening

Off-axis pivot leafA full-height leaf on an off-axis pivot, as catalogued across the M-24 model range.

Smart entry setThe six catalogue functions, specified with the leaf so entry, watching and alarm share one control point.

ApplicationBusiness zone · office area · high-grade residence · large balcony.

Details

Close-up views

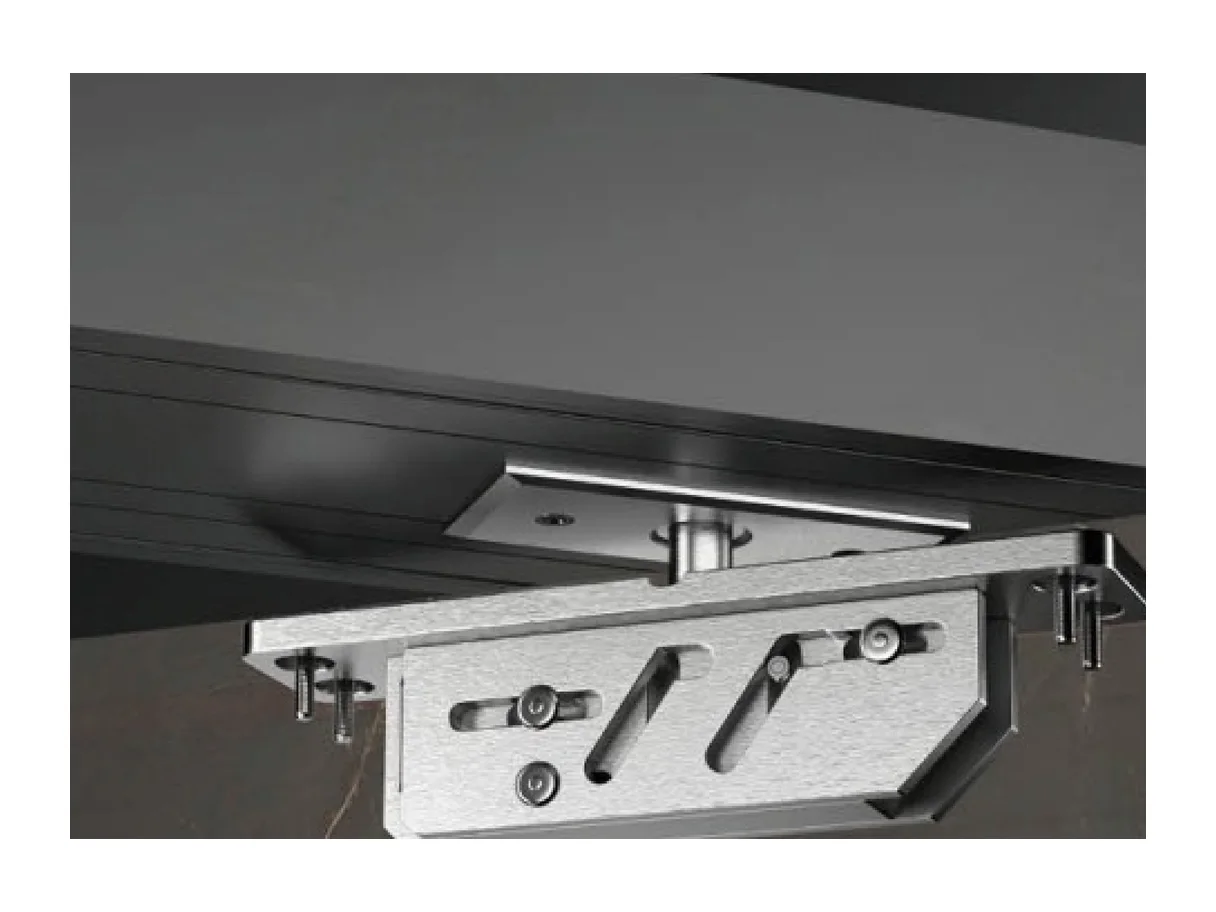

Overhead pivot hardware set for the off-axis entrance leaf, shown on a stone head detail — Pivot hardware: overhead pivot set on the head

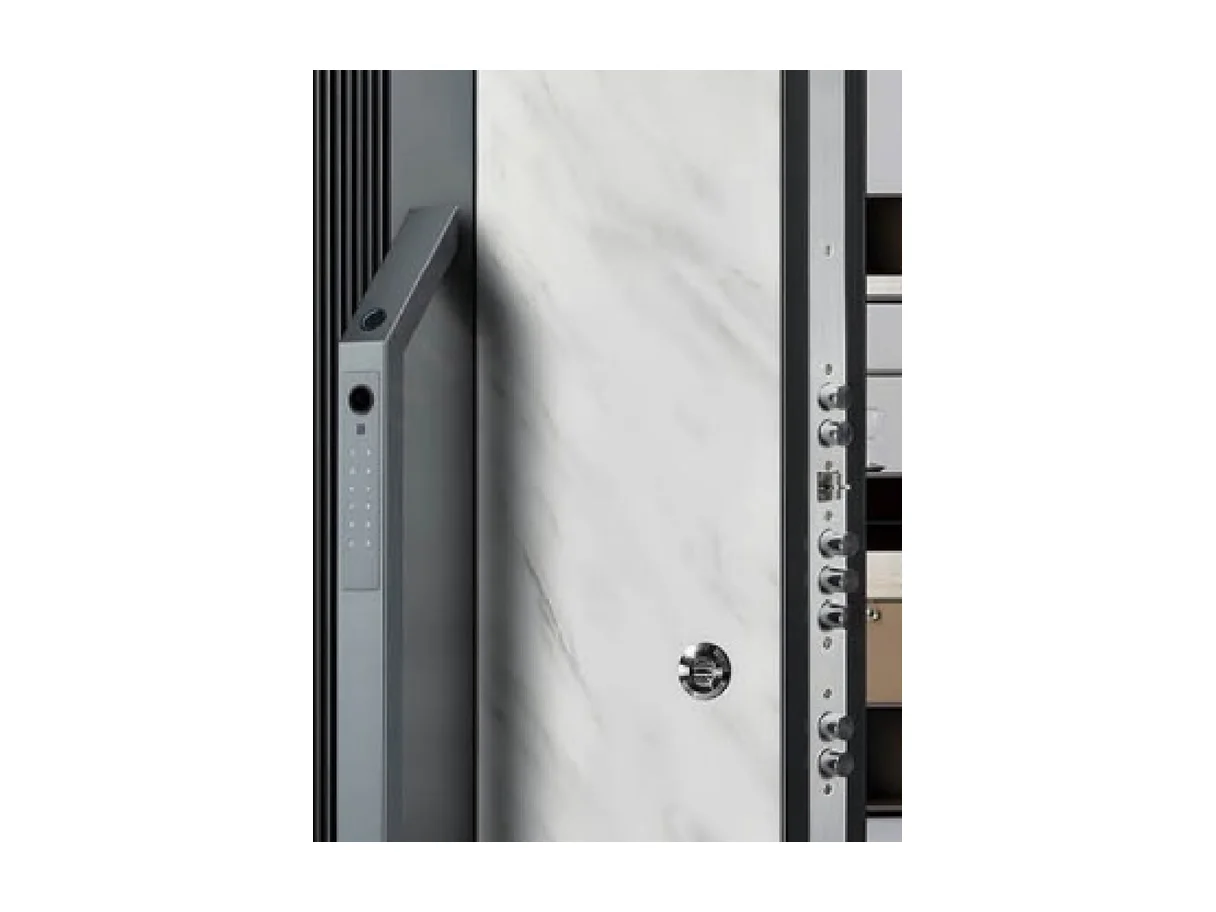

Smart lock body and long handle fitted to the edge of the entrance leaf beside a stone surround — Smart lock and handle on the leaf edge

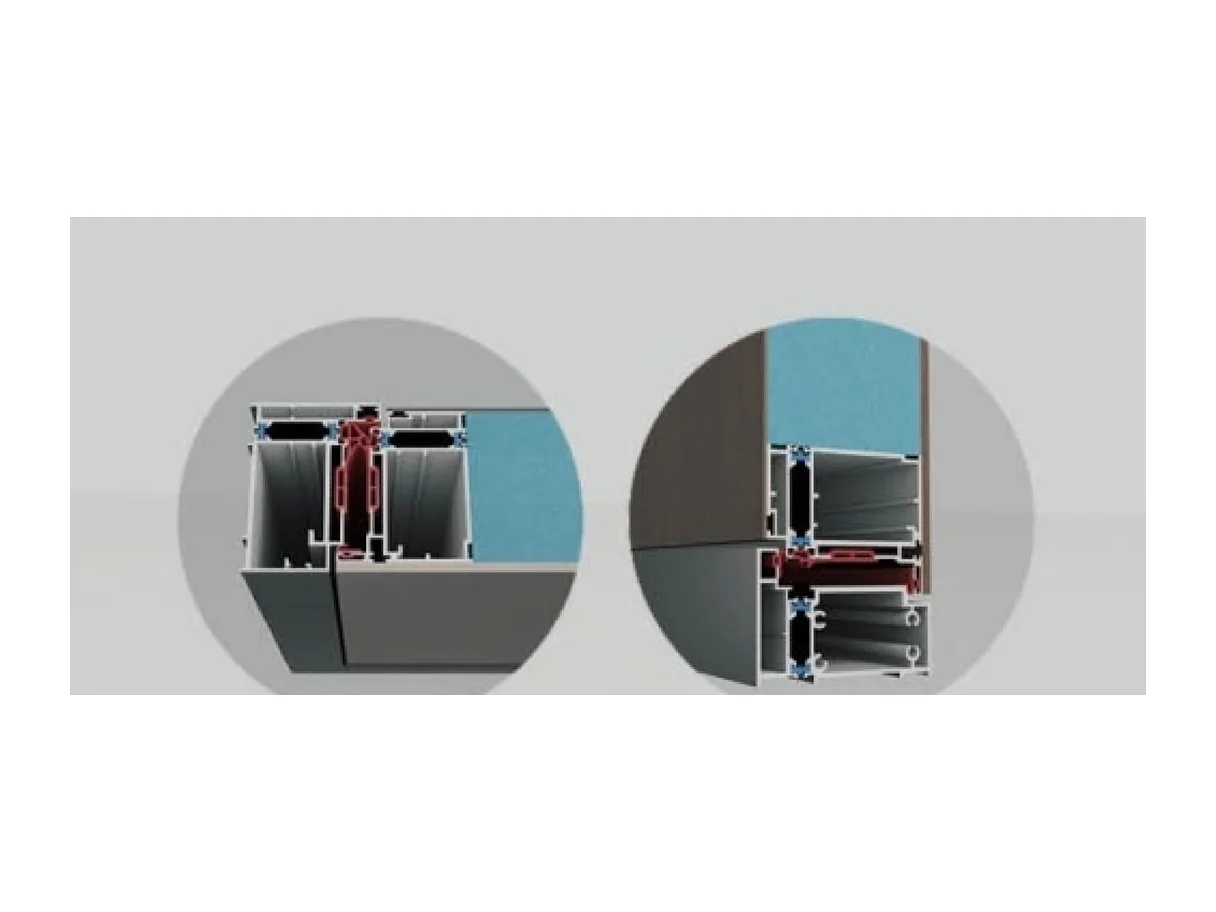

Profile sections: broken-bridge build

Leaf, pivot and frame

The leaf is built on a 3 mm aluminium alloy profile, catalogued at more than 80 per cent higher hardness than a common aluminium profile. The pivot sits off the leaf axis, which lets the leaf clear its own jamb and keeps the entrance free of a side-hinge line.

The catalogue pairs the leaf with a sealing system along the frame-to-sash joint. Four special seal strips close that joint, and an automobile-grade seal strip is catalogued to cut noise by more than 90 per cent. The leaf build and the pivot position are quoted against the opening.

Catalogue ratings

Four figures are printed on the catalogue spreads. Sound insulation is rated at 42 dB, reached through a layered leaf and a multi-layer cut-off of reflected sound. Water tightness is rated Class 3, combining water blocking, drainage and anti-backflow details with the seal strips. Heat conduction is catalogued as cut by more than 70 per cent through the broken-bridge build and its insulation infill. These are the published catalogue ratings; the figures for an installed opening follow its own size and build-up.

The series also carries five performance indicators: thermal insulation, water tightness, air tightness, wind resistance and sound insulation. The catalogue states that these five standards are set above the industry benchmark.

Smart entry

Six smart entry functions are catalogued for the series: wireless remote, an app system, video surveillance, a door opening system, a security system and a defence system. They are presented as a set that can be specified with the leaf, so the entrance is opened, watched and alarmed from one place.

Scenes and project supply

The catalogue places the series in four settings: business zones, offices, high-grade residences and large balconies. The M-24 range runs across the catalogued model numbers from M-24001 upward, each one a different leaf face or entrance composition.

The M-24 is supplied on the same OEM terms as the rest of the door range: private-label packing, project documentation and export-standard containers. A profile set and a finished test door can be reviewed before a project commits. Send the opening size, the leaf face and the destination market, and the quotation is issued with the full dimensional pack.
