Anyue One-Piece Cast-Aluminium Entrance Door

The one-door-one-scene line of the entrance range: a one-piece cast-aluminium face on a sealed thermal-break frame.

ONE GATE, ONE SCENERY SERIES DOOR · application scenes

Cast-aluminium one-piece entrance doors

The Anyue series is the one-door-one-scene line of the AURORA entrance range, printed from printed page 043 as section 045P, with eight pieces running from M-001 to M-008. The catalogue builds the leaf as one cast-aluminium body: the piece is cast in one pour with no joints, and the architectural relief is cast into the face rather than applied. The scenes set the leaf into villa entrances in stone and render, some with a fixed glass panel beside the door. Every image and every line on this page is taken from the production catalogue.

M-001 to M-008Catalogue model range

Cast in one pieceLeaf face, catalogue

5 / 8 / 8 / 8 / 9Catalogue performance levels

On requestFinishes and samples

Key features

Four things it brings to the opening

01One-piece cast leafThe catalogue casts the leaf as one aluminium body with no joints, so the architectural relief runs unbroken across the face.

02Cast-in reliefThe pattern is cast into the face rather than applied, and the mould leaves the natural grain the catalogue compares to stone, timber and bronze.

03Differentiated thermal-break buildThe cast leaf sits on the thermal-break system the catalogue prints on page 043, from an aviation-grade aluminium plate and a 1.0 mm steel plate through B1 flame-retardant board, PA66 insulation strip and automotive-grade sealing strip to the aluminium or wooden backboard.

04Smart-lock readyThe hardware pages list the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks with motor linkage, plus the H3 horizontal handle.

Specification

The numbers, as published.

Values below are the published specification of the Anyue One-Piece Cast-Aluminium Entrance Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.

Opening: Single leaf, with a secondary leaf or a fixed glass panel where shown
Door style: One-piece cast-aluminium face, one door one scene
Structural build: Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · thermal-break profile · automotive-grade sealing strip · PA66 insulation strip · aluminium or wooden backboard
Leaf face: One-piece cast aluminium · cast architectural relief · no joints
Frame: Aluminium with thermal-break profiles
Glazing: Fixed glass panel where the catalogue draws it
Performance (catalogue ratings): Sound 5 · thermal 8 · water 8 · air 8 · wind 9
Hardware: L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks with motor linkage · H3 horizontal handle
Finishes: No catalogue colour card · confirmed against samples on request

Request the full dimensional pack

Gallery

More views of the series

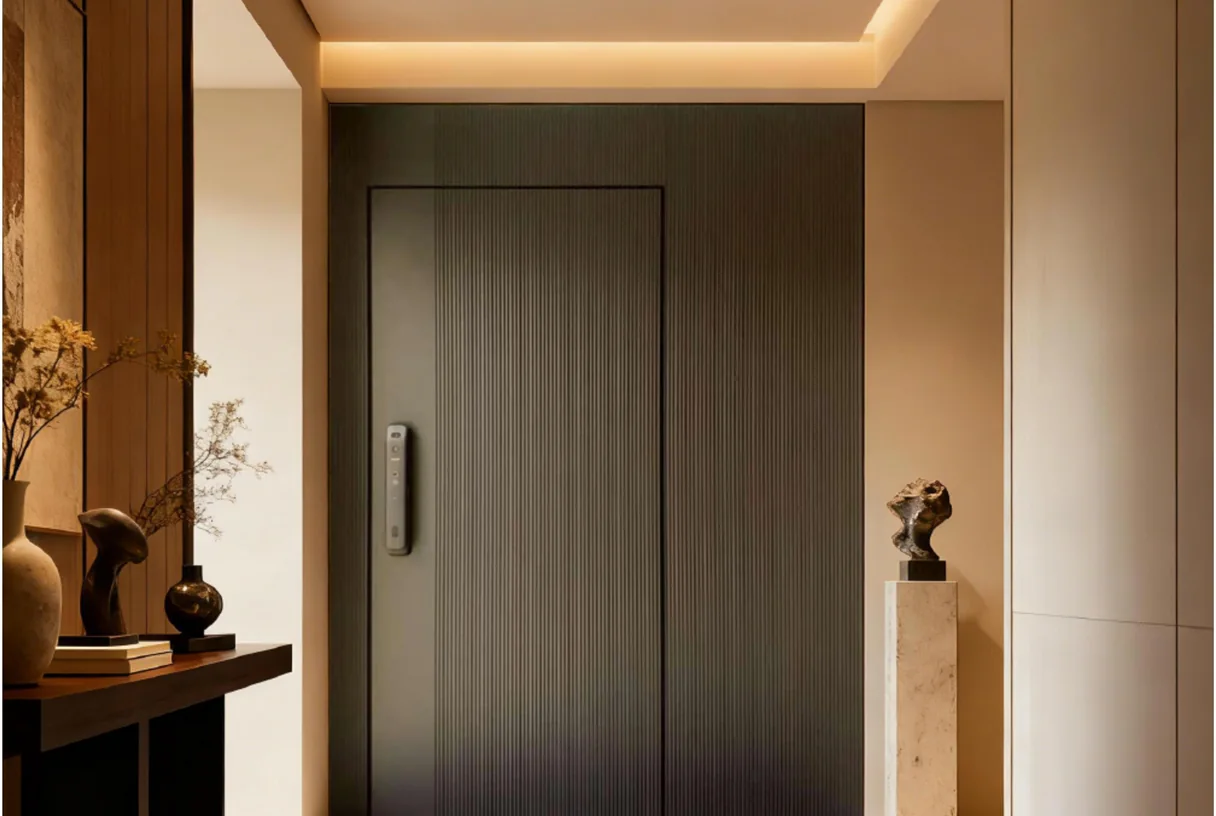

Fluted cast-aluminium entrance leaf in a hallway with a console table and a sculpture, design rendering — Fluted cast-aluminium entrance leaf in a hall with a console and sculpture, design rendering

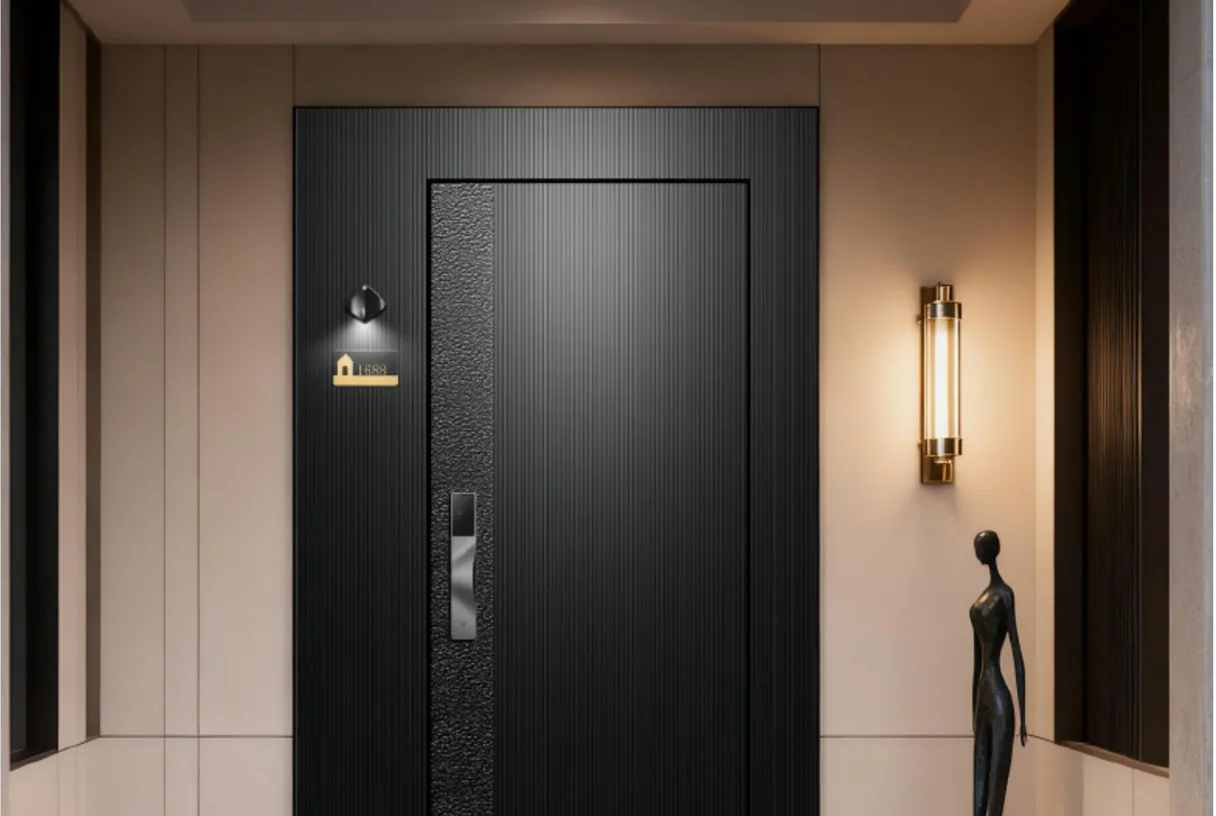

Black cast-aluminium entrance leaf with a slim lock between wall lamps and a statue, design rendering — Black cast leaf between wall lamps and a statue, design rendering

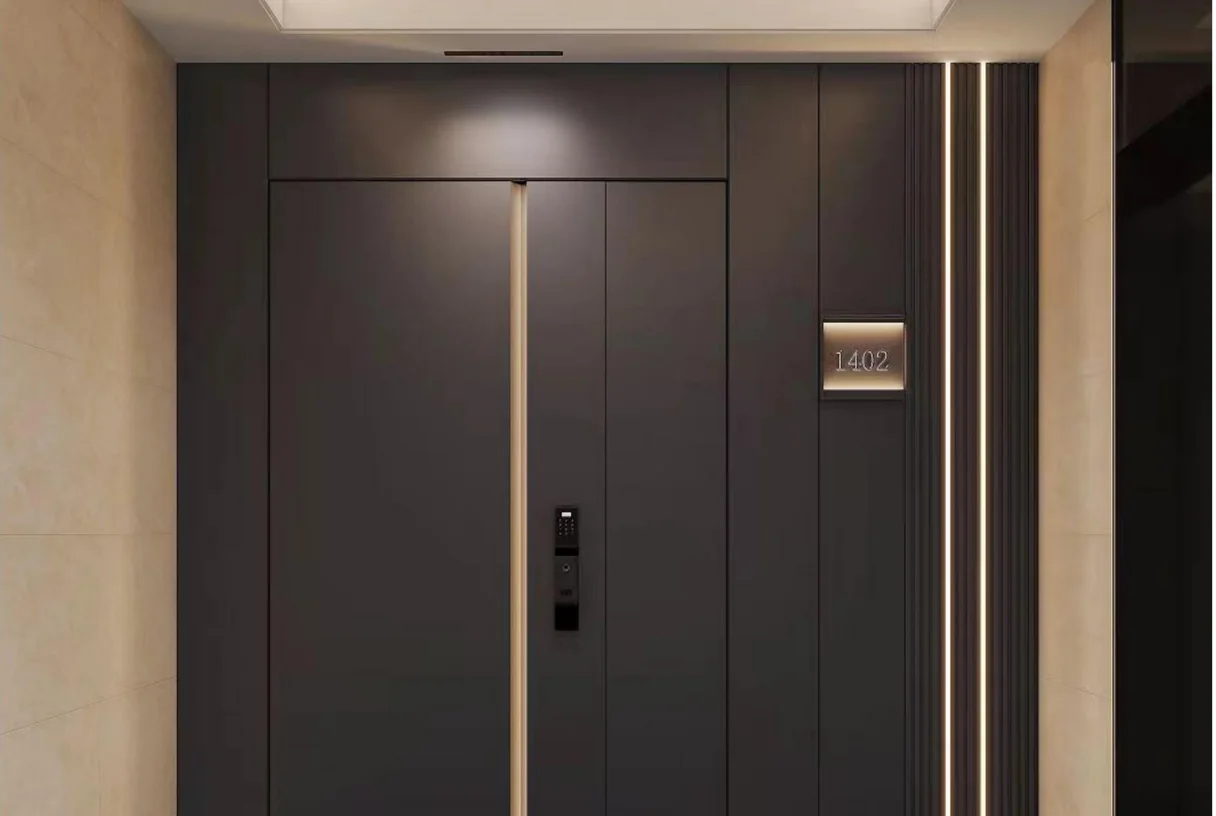

Dark bronze cast-aluminium entrance pair with a vertical brass pull and a brass trim, design rendering — Dark bronze cast pair with a vertical brass pull, design rendering

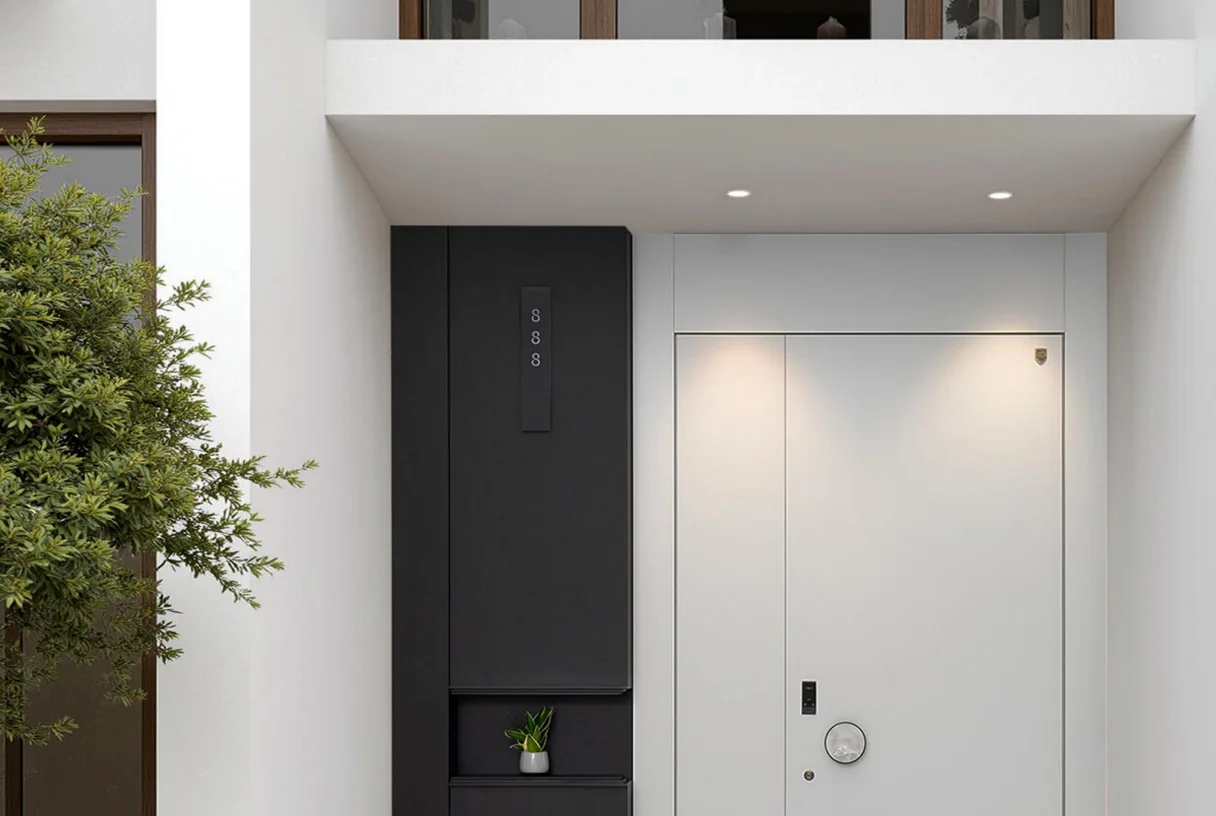

Cast-aluminium entrance leaf beside a pale leaf on a white render villa front with planting, design rendering — Cast leaf and a pale leaf on a white render villa front, design rendering

Configurations

Three ways to build the opening

One-piece leafA single cast leaf across the opening, as in the catalogue M-001 scene.

With glass panelThe cast leaf beside a fixed glass panel, as in the catalogue exterior scenes.

Relief variantsFurther cast patterns across M-002 to M-008, drawn in stone, bronze and dark tones.

Details

Close-up views

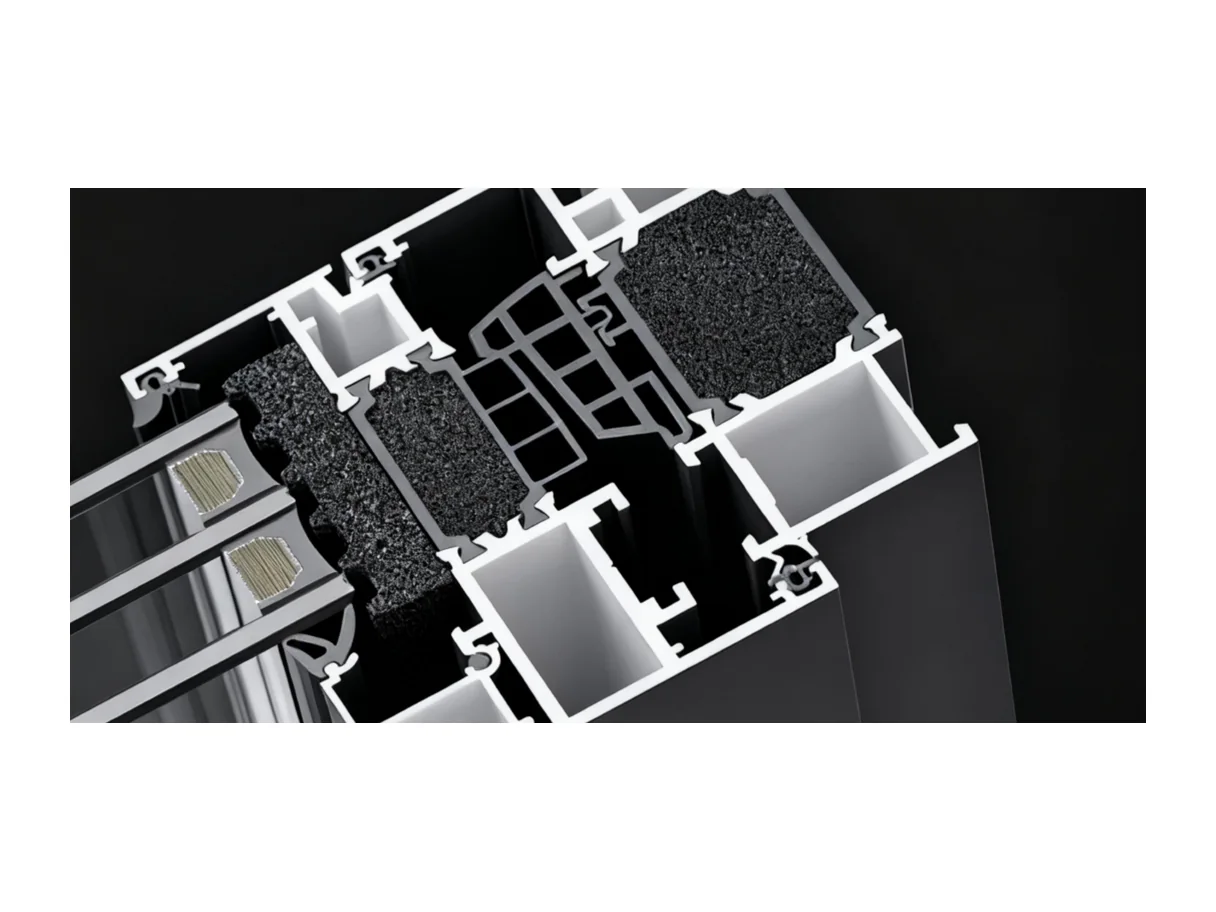

Cutaway: differentiated thermal-break entrance profile

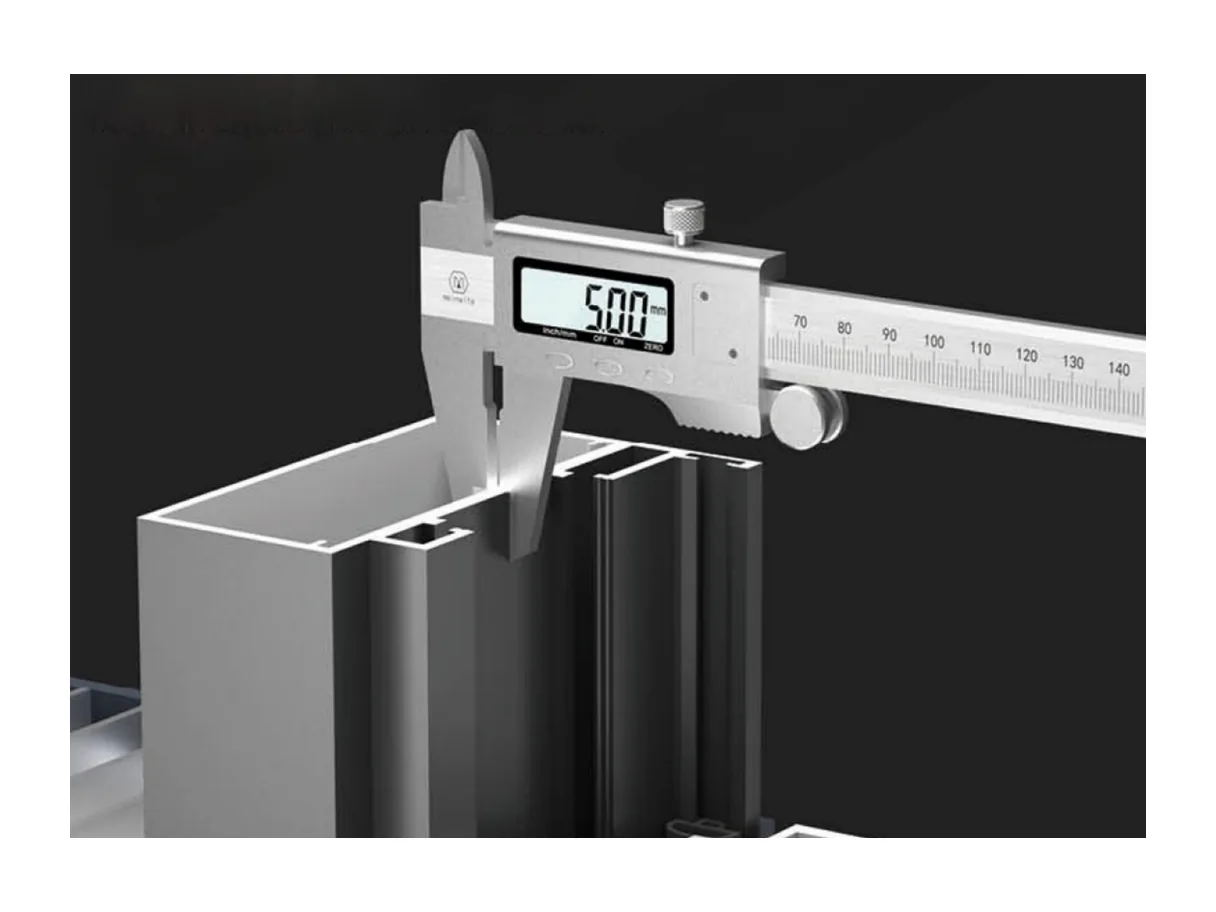

Quality check: digital caliper on the cast profile section

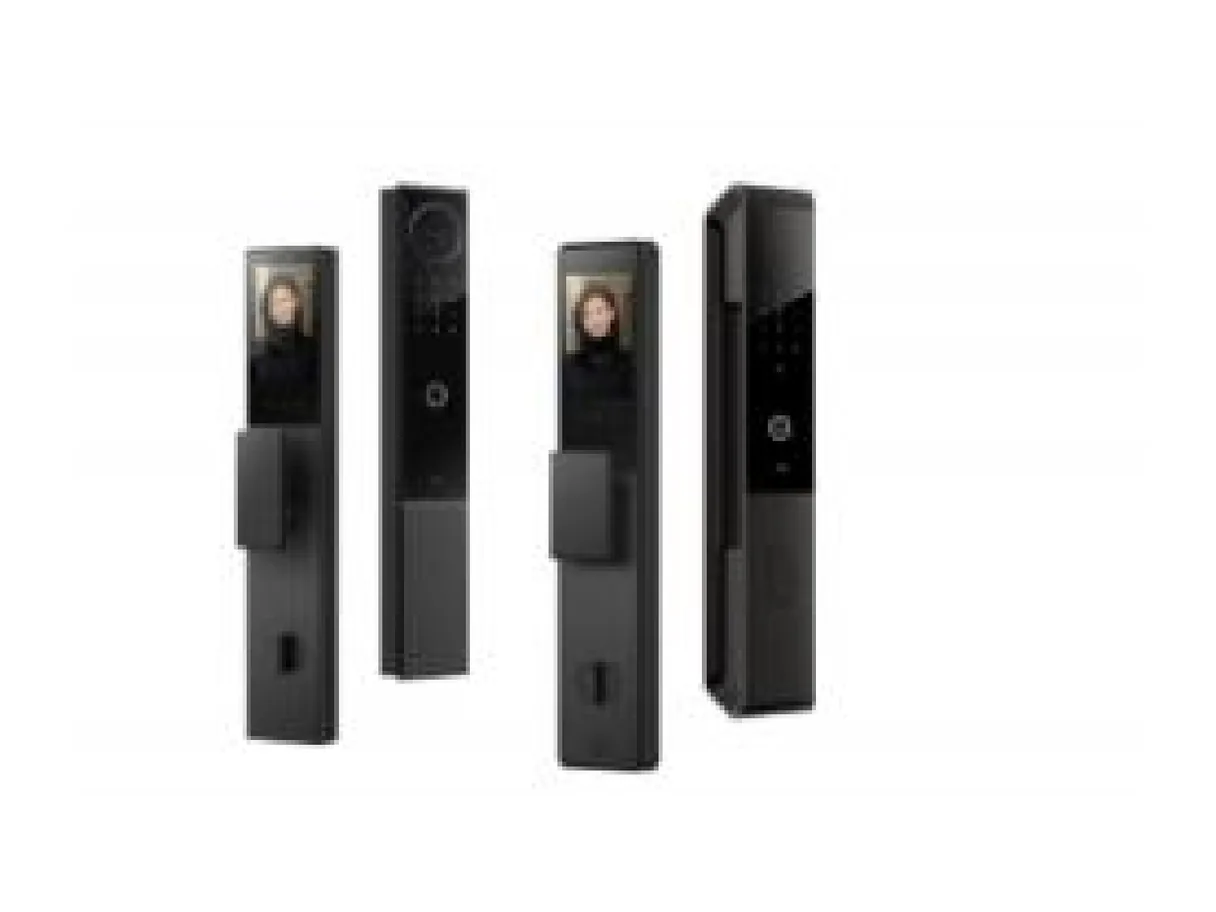

Product view of an N-series embedded split smart lock set with keypads and covers — Product view: embedded split smart locks

Cast body and structure

The cast-aluminium leaf sits on a thermal-break aluminium frame. The catalogue prints the structure of the series as a differentiated thermal-break system on printed page 043, from an aviation-grade aluminium plate and a standard 1.0 mm steel plate through a B1 level flame-retardant board, a thermal-break profile, an automotive-grade sealing strip and a PA66 insulation strip to an aluminium or wooden backboard. The cast face carries the natural grain of the mould, so the same leaf reads as stone, timber or bronze. Leaf sizes, wall openings and glass build-up are quoted against the project opening.

Performance ratings from the catalogue

The catalogue gives the entrance range five ratings, printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9. They are catalogue ratings, kept as printed, and they describe the sealed door assembly rather than a measured test result for one opening. The sealing strip, the PA66 insulation strip and the thermal-break profiles named in the structural list are the parts the catalogue ties to those ratings.

Finishes and hardware

The catalogue carries no colour card for the Anyue leaf, so the finish is confirmed against the catalogue and physical samples on request; the scenes show the cast face in charcoal, deep brown and stone tones. Hardware runs to the smart-lock options the catalogue lists on printed page 095: the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded split locks with motor linkage, together with the H3 horizontal handle. The brochure prints no RAL numbers for this series, so a project colour is matched against a physical sample.

OEM and project supply

The Anyue entrance door leaves the factory on the same private-label basis as the rest of the AURORA range: own-brand packing, project documentation and export-standard containers. A profile set and a finished test door are available for review before a project commits, and the cast face pattern, the glass panel and the hardware set are fixed against the opening. Send the opening size, the face pattern and the destination market, and the quotation returns with the full dimensional pack.

Factory-direct

Who is behind the profile

CE attestationEN 14351-1 · M.2024.206.C101817

6063-T5Extruded in-house

OEM / ODMPrivate label, export packing

RAL matchingOn request

Documentation

Brochure & spec sheet

The full entanyue brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.

Request the brochure

Market versions

This series, specified for your market

Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.

United States Australia Southeast Asia Africa

FAQ

Asked on every Anyue series project

What is the Anyue one-piece cast-aluminium entrance door?

It is the one-door-one-scene line of the AURORA entrance range, printed from catalogue page 043 as section 045P, with eight pieces from M-001 to M-008. The leaf is cast as one aluminium body with no joints.

How is the cast face different from an applied panel?

The catalogue casts the piece in one pour and casts the architectural relief into the face rather than applying it, so the pattern runs unbroken and the mould leaves a natural grain.

What performance does the catalogue give?

Five catalogue ratings printed on page 061: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9, taken as printed for the sealed assembly.

Which structure does it use?

The differentiated thermal-break system the catalogue prints on page 043: aviation-grade aluminium plate, a 1.0 mm steel plate, a B1 flame-retardant board, a thermal-break profile, an automotive-grade sealing strip, a PA66 insulation strip and an aluminium or wooden backboard.

Which finishes are offered?

The catalogue prints no colour card for this series, so the finish is confirmed against the catalogue and physical samples on request, with charcoal, deep brown and stone tones shown in the scenes.

Can we sample it before ordering?

Yes. A profile set and a finished test door are available on request, with the lead time confirmed on the enquiry.
