Aluminium Roller Shutter Garage Door
A rolling curtain of slats: 80 mm slat height on a 20 mm leaf.
ALUMINIUM ROLLER SHUTTER GARAGE DOOR
A slatted curtain
The roller shutter garage door is a curtain of aluminium slats rather than a hinged or sectional leaf. The slats interlock into a rolling face that travels in side guides and rolls up into a head box above the opening. Because the door rolls, it needs no swing space in front of the garage and no leaf standing beside the wall, which suits a tight frontage or a garage that opens straight onto a road. The slat set is drawn from the catalog section, and the door is built to the opening from that set.

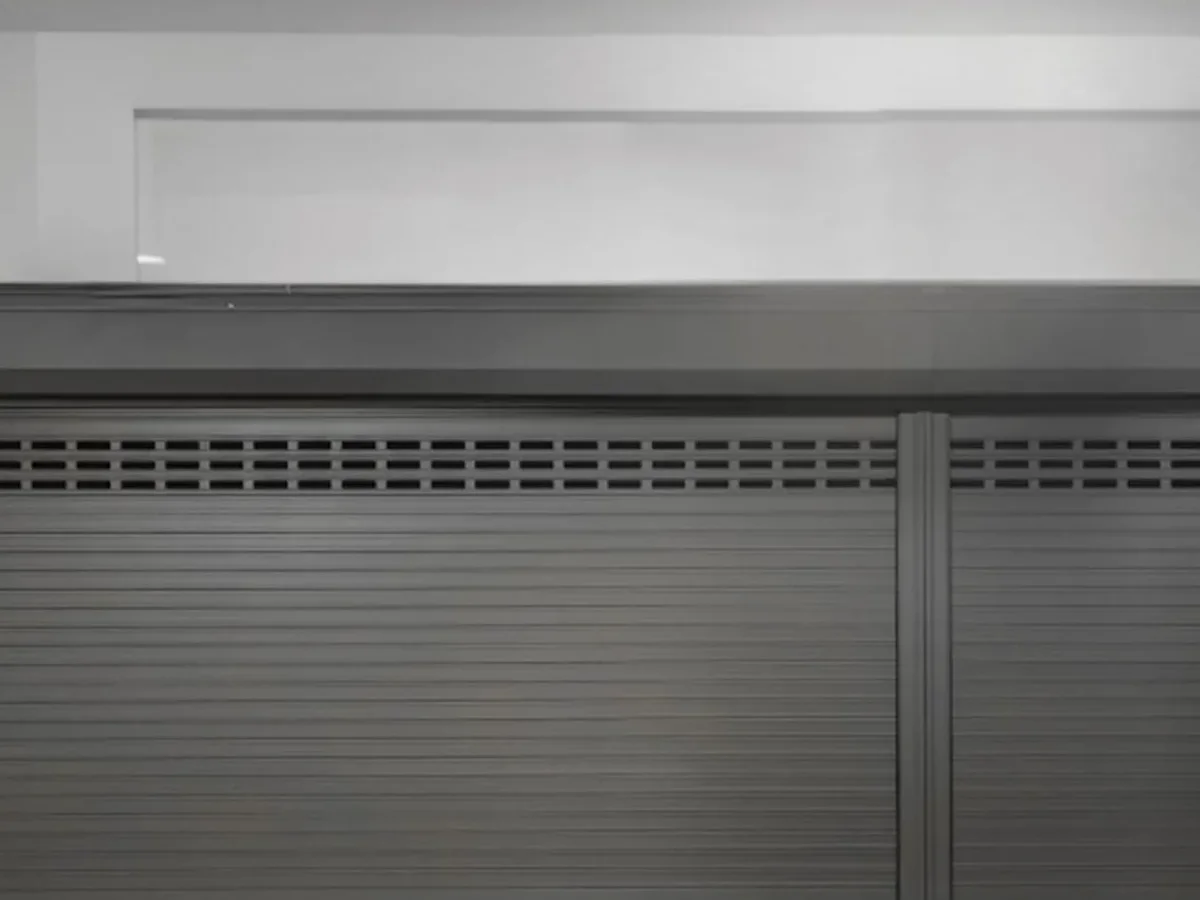

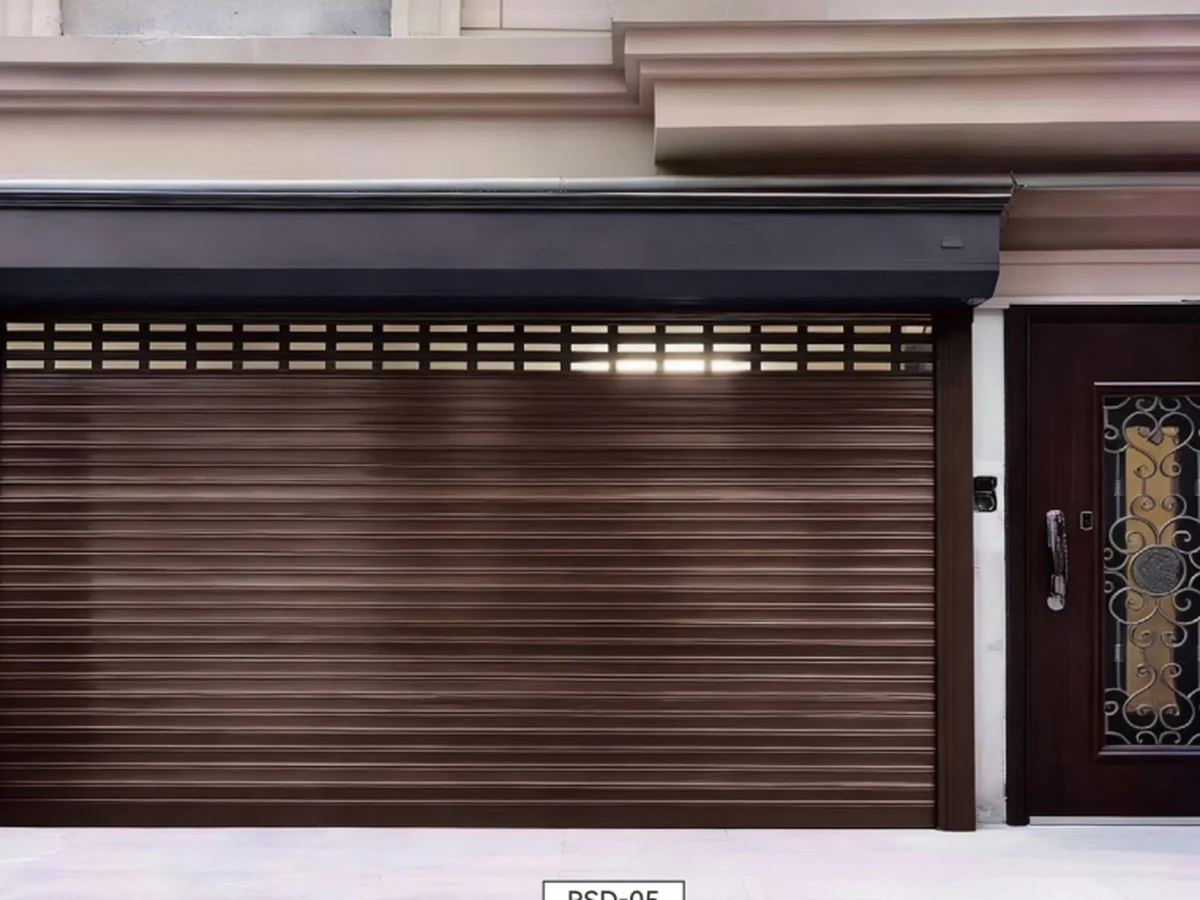

The scenes used on this page are catalogue design renderings. They show the rolled curtain and the head box; the section drawings carry the slat sizes.
Key features
Four things it brings to the opening
Specification
The numbers, as published.
Values below are the published specification of the Aluminium Roller Shutter Garage Door. The complete dimensional pack and model list is supplied with the quotation.
- Door type
- Roller shutter garage door
- Slat wall
- 1.0 mm
- Slat height
- 80 mm
- Door leaf thickness
- 20 mm
- Aluminium
- 6063-T5 primary aluminium
- Finishes
- Antique bronze / oak wood grain / obsidian black / milky white / deep grey
- Dimensional pack
- Supplied with quotation
Gallery
More views of the series
Configurations
Three ways to build the opening
Details
Close-up views
Finishes
Standard finishes
- Antique bronzeext / int
- Oak wood grainext / int
- Obsidian blackext / int
- Milky whiteext / int
- Deep greyext / int
Catalogue finish names; RAL equivalents and two-tone combinations are confirmed on request against physical swatches.
Slat and leaf sizes

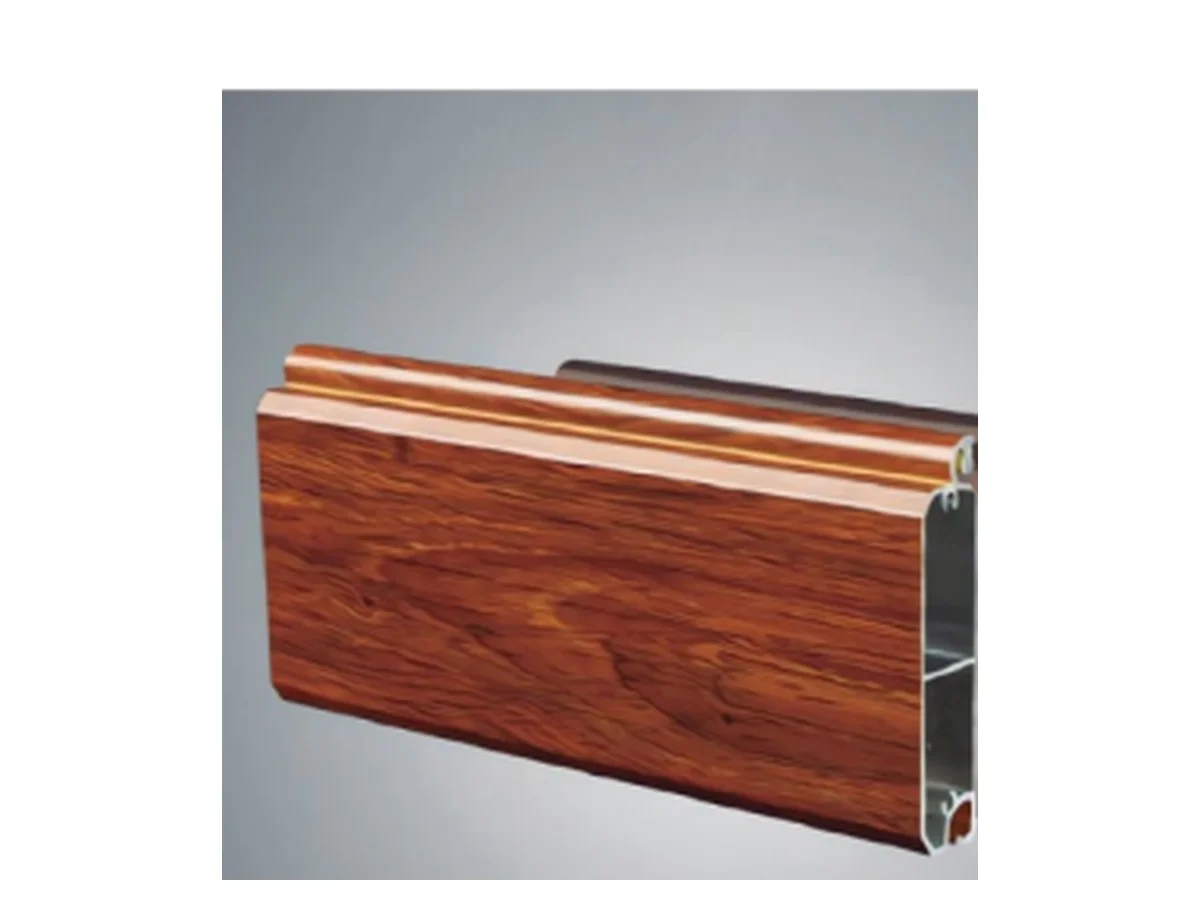

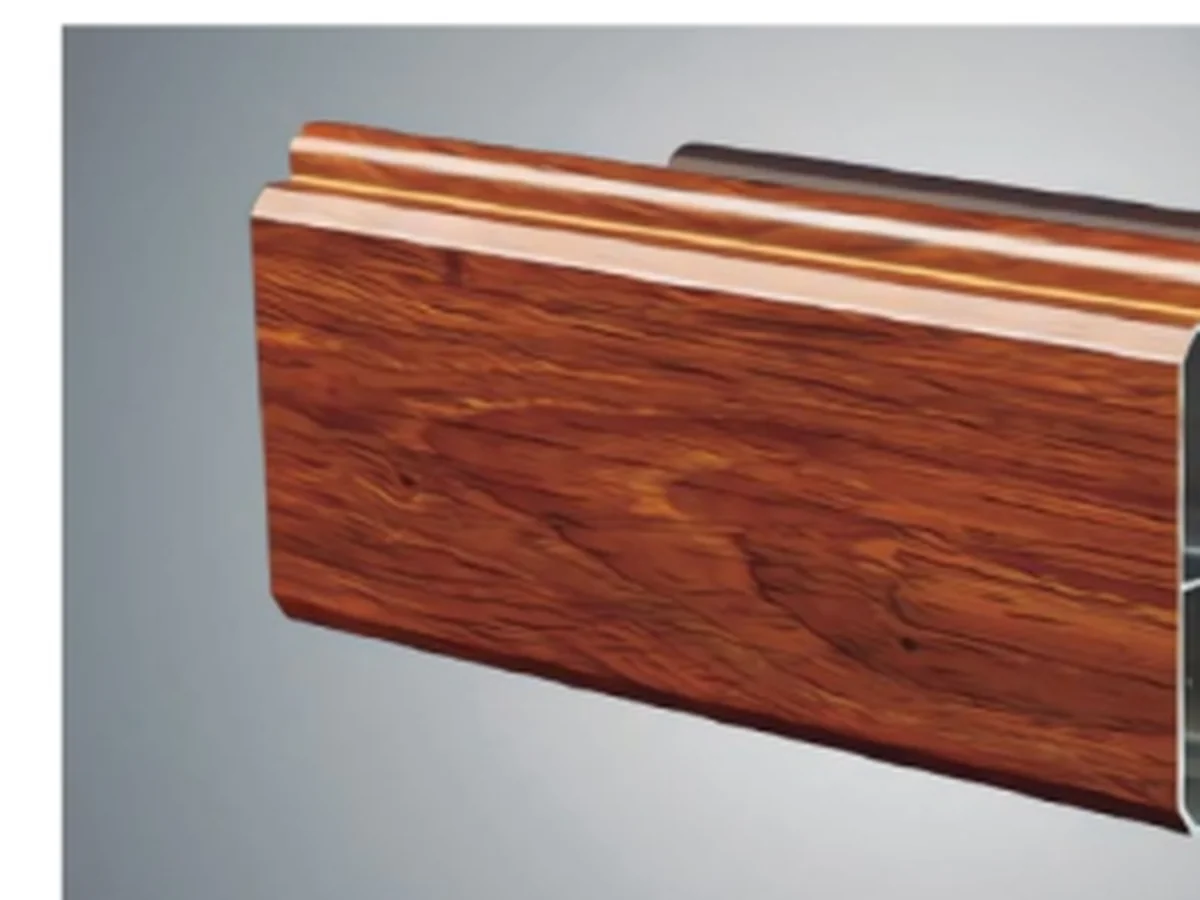

The slat carries a 1.0 mm wall and stands 80 mm high, and the door leaf thickness is 20 mm. Those three sizes set the way the curtain works: the 1.0 mm wall gives each slat its shape and keeps it rigid across the width, the 80 mm height fixes how many slats the opening takes and how compact the rolled curtain is in the head box, and the 20 mm leaf thickness sets the depth the slat set needs in the guide and the box. The slats interlock so the curtain holds together as it rolls and unrolls.
Finishes

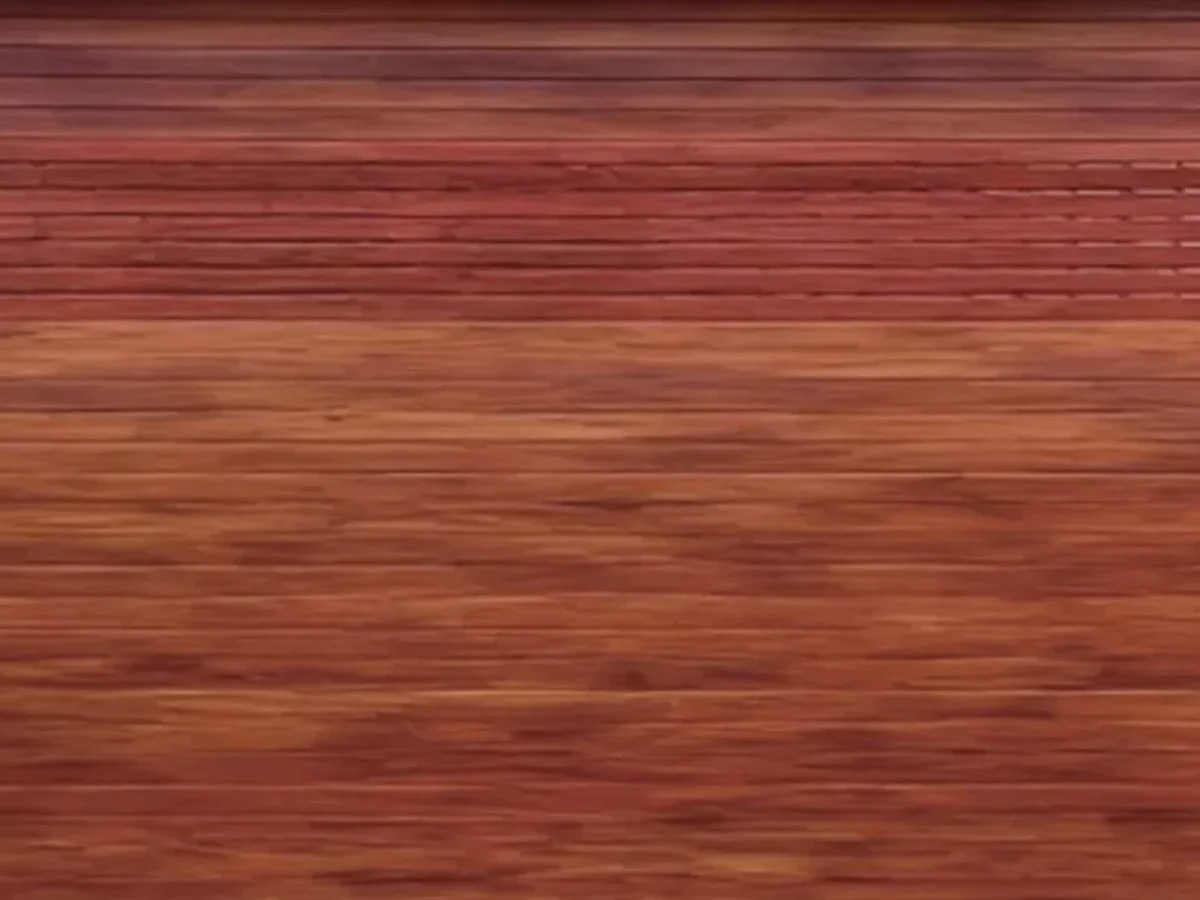

Five finishes are catalogued for the roller shutter: antique bronze, oak wood grain, obsidian black, milky white and deep grey. The range runs from the warm bronze and the oak print to the plain black, white and grey, so a shutter can be matched to a rendered frontage, a timber door or a metal facade. Oak wood grain is a print over the aluminium, so the face carries the tone of timber with the behaviour of metal. Samples of the actual finish are available, and the exact finish is fixed against the swatch before the order is confirmed.
Operation and supply
The shutter rolls by hand or on the opener line, which serves the whole garage range, so the same drive and control set can move a roller shutter as it moves a sectional leaf. The curtain rolls into a head box above the opening, and the box size and the guide set are quoted against the opening. The slats are 6063-T5 primary aluminium, extruded in-house on the same lines as the window and door ranges. Shutters go out on the standard OEM terms: private-label packing, project documentation and export-standard containers, with the dimensional pack for the opening sent with the quotation. A slat sample in the chosen finish is available before the order is placed, and the box size and the guide set are confirmed against the opening.
Factory-direct
Who is behind the profile
Documentation
Brochure & spec sheetThe full brochure (section drawings, panel layouts, finish cards) is sent with the quotation, in PDF and CAD on request.
Request the brochureFAQ
Asked on every garage door project
What is the shutter made of?
It is a curtain of aluminium slats that interlock and roll into a head box above the opening.
What are the slat sizes?
The slat carries a 1.0 mm wall and stands 80 mm high, and the door leaf thickness is 20 mm.
Which finishes does the roller shutter take?
Antique bronze, oak wood grain, obsidian black, milky white and deep grey.
Can the shutter be motorised?
Yes. It rolls by hand or on the opener line, which serves the whole garage range.
Does it need space in front of the garage?
No. Because the curtain rolls up, it needs no swing space in front and no leaf standing beside the wall.
Do you supply the roller shutter under OEM terms?
Yes. Private-label packing, project documentation and export container packing are available on the shutter line.
