Aluminium Raised Panel Garage Door
A raised relief panel face on a sectional leaf, in a cooper-style design.
ALUMINIUM RAISED PANEL GARAGE DOOR
Depth across the face
The raised panel garage door carries a relief face on a sectional leaf. The panels stand proud of the frame, so the front holds depth rather than sitting flat, and the light across the leaf picks out shadow under each panel edge. That relief is what gives the door its presence on a rendered or masonry frontage, where a plain face would read as a blank. The face is laid out in a cooper-style panel design, and the leaf is built as a sectional door on the standard running gear.

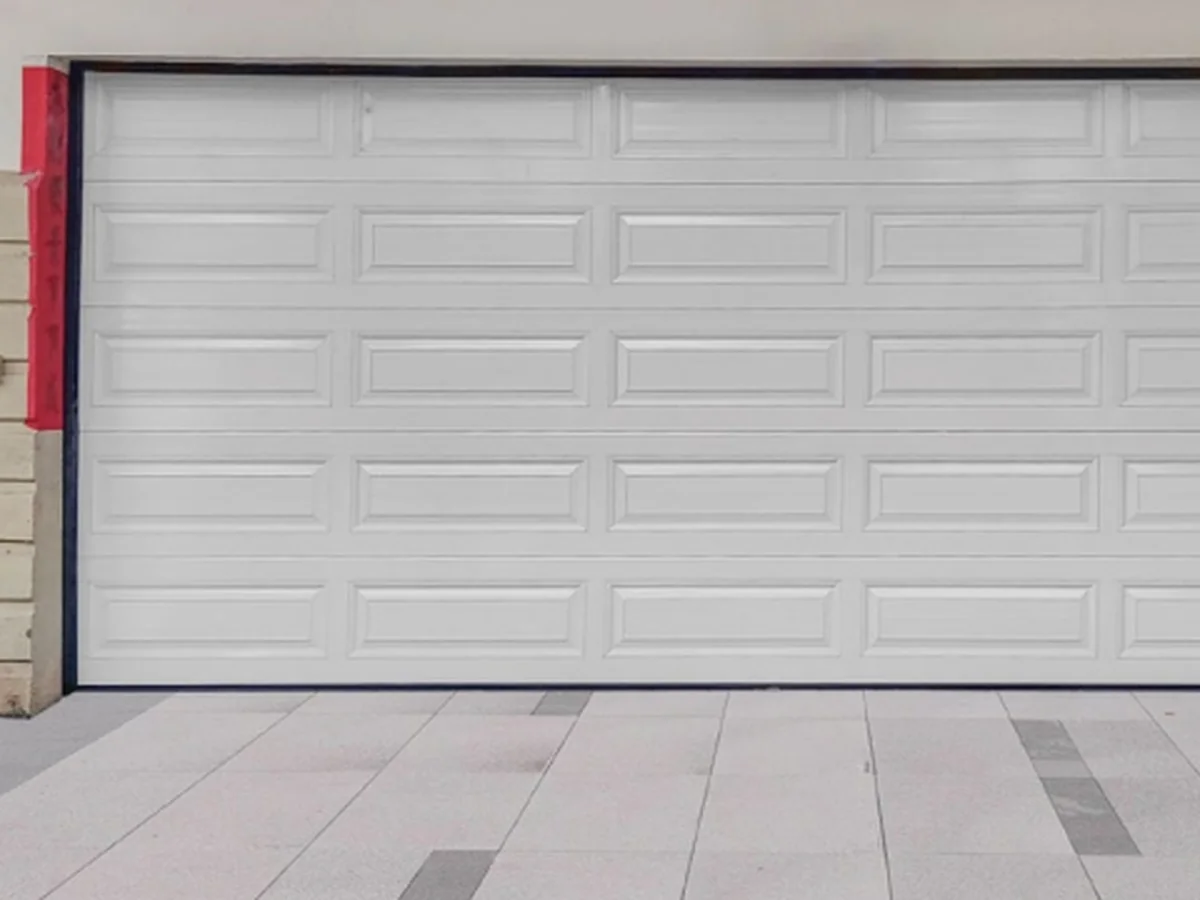

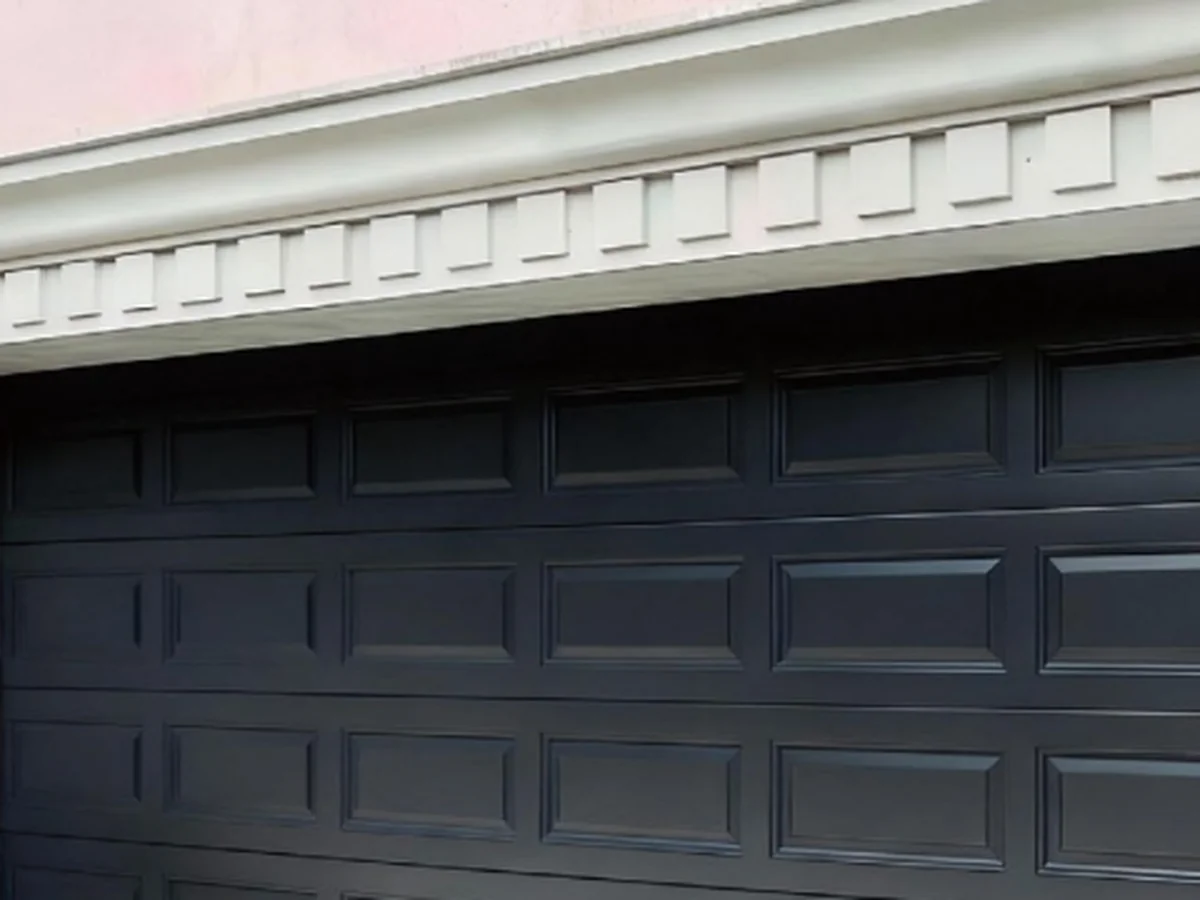

The images on this page are catalogue design renderings. They show the relief and the panel rhythm; the section drawings carry the member sizes.
Key features
Four things it brings to the opening
Specification
The numbers, as published.
Values below are the published specification of the Aluminium Raised Panel Garage Door. The complete dimensional pack and model list is supplied with the quotation.
- Door type
- Sectional garage door
- Face
- Raised relief panel
- Panel design
- Cooper-style panel
- Aluminium
- 6063-T5 primary aluminium
- Face finish
- Quoted per project
- Dimensional pack
- Supplied with quotation

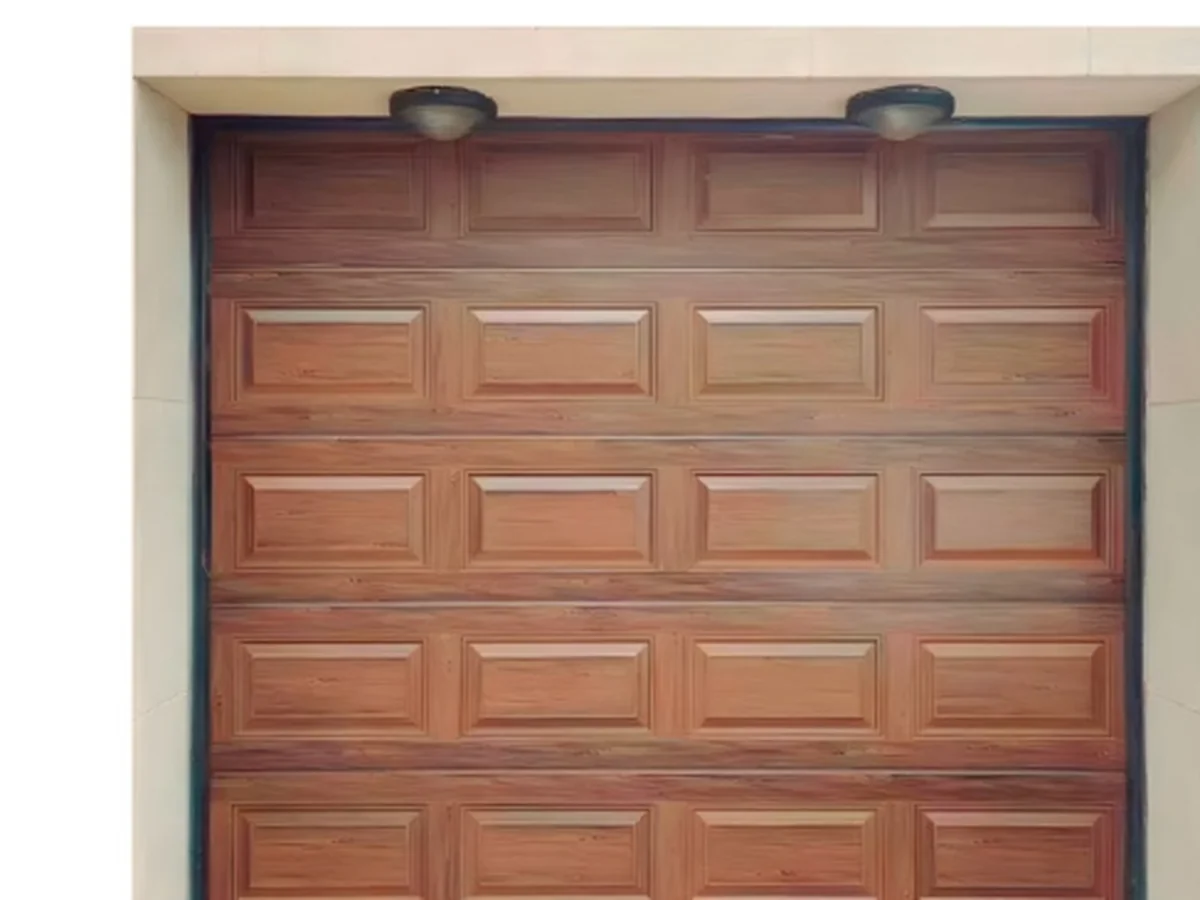

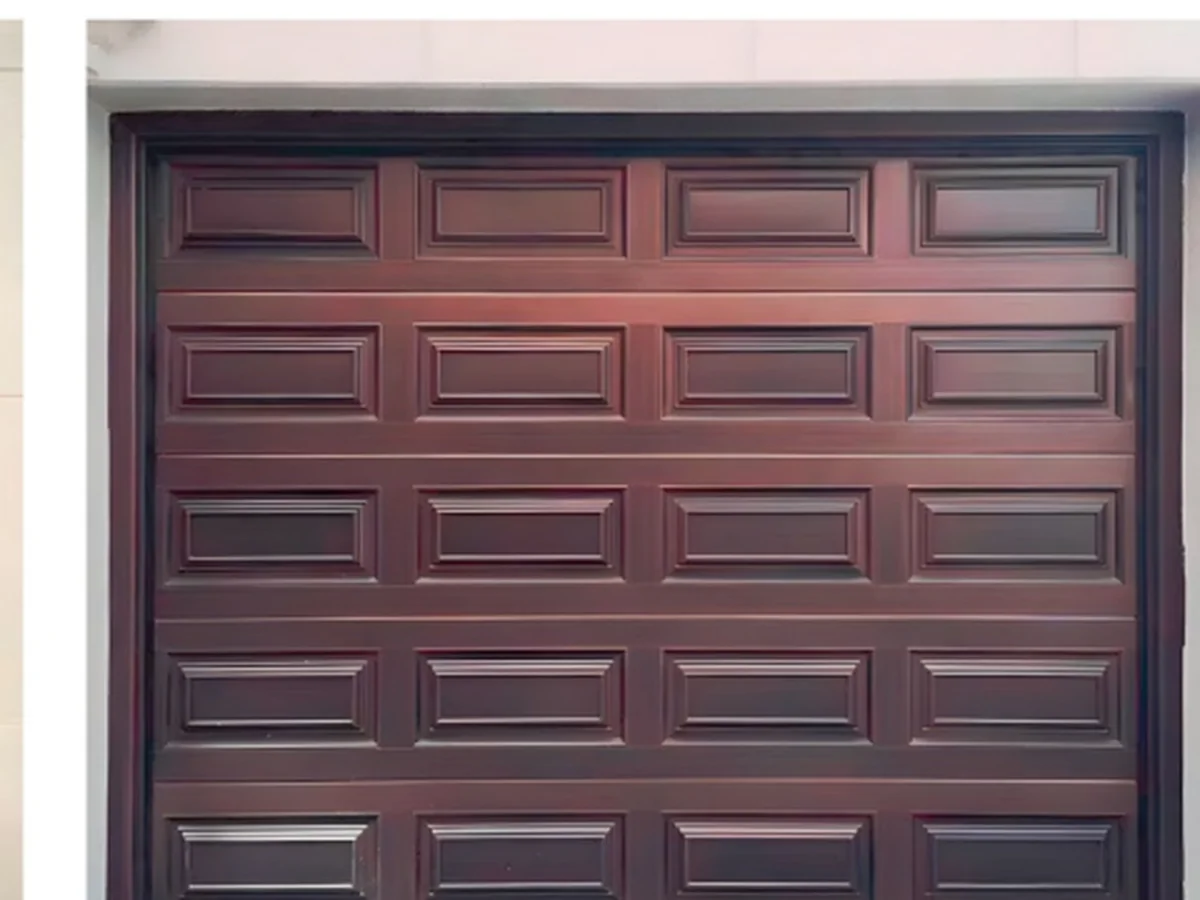

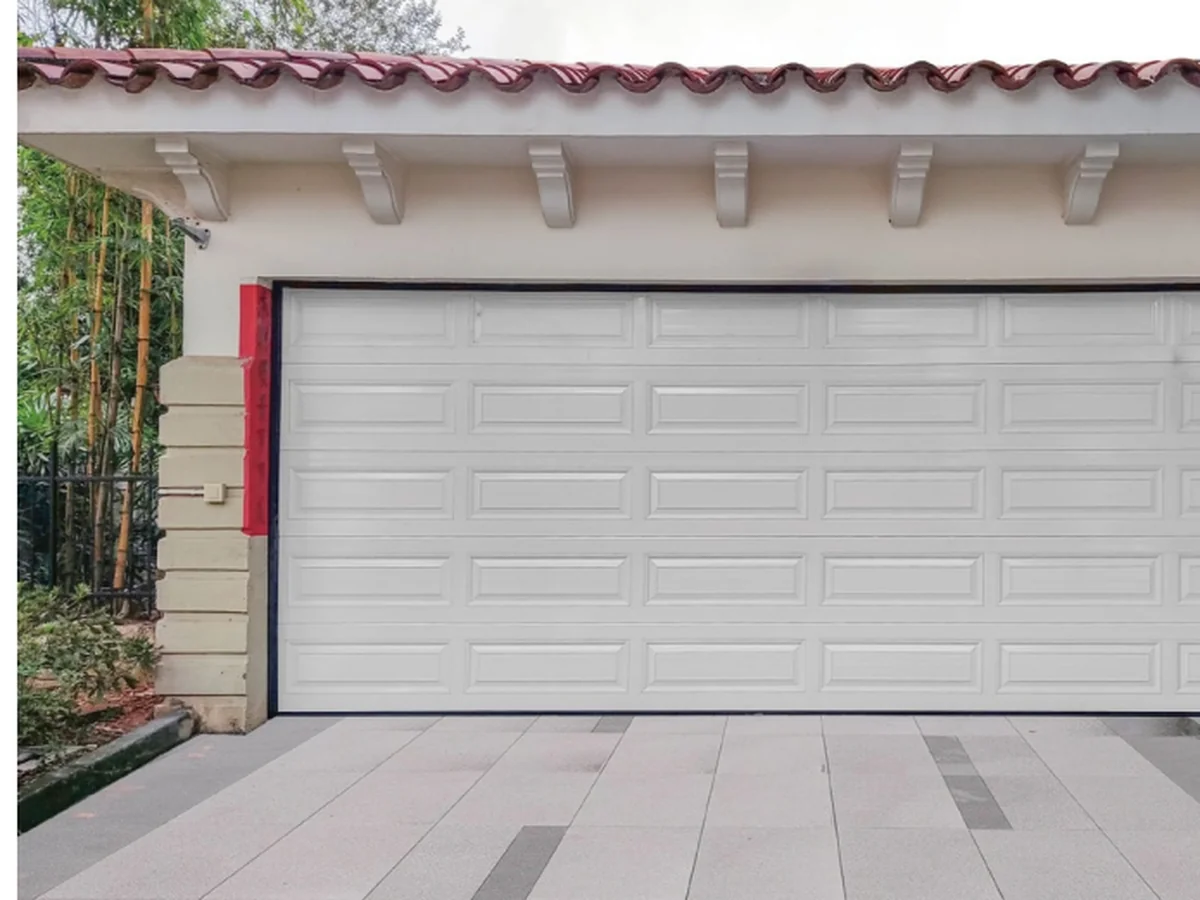

Gallery
More views of the series
Configurations
Three ways to build the opening
Details
Close-up views
Relief and styling
Cooper-style panel design sets the face as a series of framed, raised sections. The relief runs across the whole leaf, so the door reads as a set of moulded panels rather than one sheet. That face separates this door from the flush range, which stays in one plane, and from the grille range, which opens the face with battens. The panel split follows the opening size, so a single-width and a double-width garage can both take the same relief layout without the framing losing its line.
Build and running gear
The leaf frame is 6063-T5 primary aluminium, run on the same in-house line as the window and door ranges, and it holds the strength and crack resistance the alloy is chosen for. Because the leaf is sectional, it runs on the standard sectional set and lifts to stow above the opening in the normal way. The face finish is confirmed with the project, so the raised panels can be matched to the tone of the facade, and the running gear is quoted against the opening rather than fixed in advance.
OEM and project supply
Raised panel doors follow the standard OEM terms: private-label packing, project documentation and export-standard containers. The leaf comes off our own extrusion and the relief is formed on our own line, so a bespoke panel layout can be quoted from a drawing. Send the opening size, the panel design you want and the destination market. The reply sets the panel split and the relief depth, so the face reads the same from end to end. A profile sample and a full size panel sample are available before the order is placed. The leaf is packed to protect the relief in transit. The panel split is kept on file, which lets a repeat order or a matching door on the same site carry the same relief and the same framing line.
Factory-direct
Who is behind the profile
Documentation
Brochure & spec sheetThe full brochure (section drawings, panel layouts, finish cards) is sent with the quotation, in PDF and CAD on request.
Request the brochureFAQ
Asked on every garage door project
What does a raised panel face look like?
The panels stand proud of the frame in a cooper-style design, so the front holds depth and catches shadow.
Is the raised leaf a sectional door?
Yes. It is built as a sectional leaf and runs on the standard sectional set.
Which alloy forms the raised leaf frame?
The leaf frame is 6063-T5 primary aluminium, drawn on our in-house extrusion line alongside the window range.
Can the panel split be changed?
Yes. The panel split is set from the opening and can be quoted from a drawing.
Which finish does the face take?
The face finish is confirmed with the project so the panels can be matched to the facade.
Can this door be ordered under OEM terms?
Yes. Private-label packing, project documentation and export container packing are offered on the raised panel line.
The rest of the range
More from the garage range
Insulated steel garage door
Insulated Steel Garage Door
Garage door openers and accessories
Aluminium Garage Door Opener Accessories
Roller shutter garage door
Aluminium Roller Shutter Garage DoorThe full range spans ten garage series, grouped by opening type in the garage hub.
Ready to specify the Aluminium Raised Panel Garage Door?
Send your opening size, panel layout and destination market, and we reply with a quotation, the dimensional pack and sample options.
