Door Systems · Fire-rated
Four fire-rated lines.
One tested build.

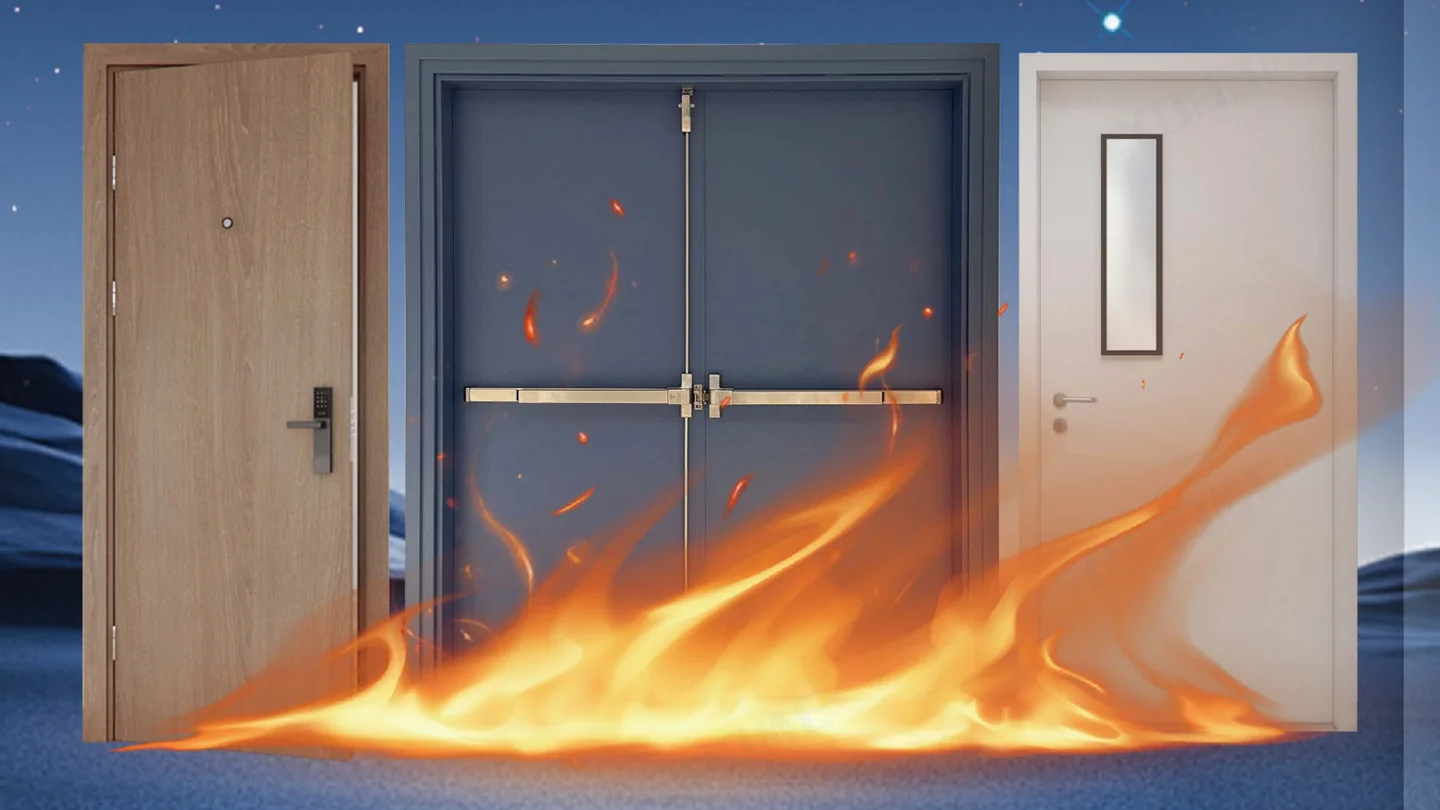

The fire-rated range runs four application lines from the hotel lobby to the school corridor: single-leaf timber leaves, the unequal double leaf, and steel faces with a panic bar. Every leaf is built on a B1 flame-retardant board over a honeycomb core and is published at 20, 45, 60 and 90 minutes across the AS, EN and UL standards the catalogue lists. Each application ships as a tested build, with the frame and the ironmongery matched.
The lines in their settings
Values from the production catalogue
Four ways the fire-rated line holds up.
Tested build
The leaf, the frame and the ironmongery arrive matched to one tested build, so the published rating applies to the assembly as it is installed, not to the leaf on its own.
B1 board, honeycomb core
Every timber leaf carries a B1 flame-retardant board over a honeycomb core. The metal line adds a steel face with a panic bar, or a steel frame with a timber leaf.
Four ratings
The catalogue marks the range at 20, 45, 60 and 90 minutes. The standards listed are AS 1905.1, AS 1530.4, EN 1634-1, CAN/ULCS104 and UL.
Four applications
Hotel lobbies take the single-leaf timber door, flats take the entry leaf, schools and hospitals take the SDS and HPS lines with the unequal double leaf, and steel faces cover the industrial openings.
The four lines
One build, four applications.
Each line is drawn for a setting: the hotel lobby, the flat entry, the school and hospital corridor, and the steel-faced industrial opening. The cards carry the catalogue-verified facts; each page adds the full specification, gallery and FAQ.
Fire-rated door
Hotel Fire-Rated Door
The hotel series is a single-leaf fire door built for guest floors, tested and marked at 20, 45, 60 and 90 minutes.
Fire-rated door
Apartment Fire-Rated Door
The apartment line is the flat entry door: a single wooden leaf, closed rather than glazed, marked at 20, 45, 60 and 90 minutes.
Fire-rated door
Institutional Fire-Rated Door
One range for school and hospital openings: a single leaf and an unequal double leaf, marked at 20, 45, 60 and 90 minutes.
Metal fire-rated door
Metal Fire-Rated Door
The metal line pairs a steel leaf and panic bar with knock-down or welded frames, marked at 20, 45, 60 and 90 minutes.
Compare the lines
Four lines, one reference table.
Application, leaf arrangement and the published rating range for each line. The tested build, frame and ironmongery are supplied with the quotation for the application you specify.
| Line | Application | Leaf arrangement | Ratings (catalogue) |
|---|---|---|---|
| Hotel (HDS) | Hotel lobbies | Single-leaf timber | 20 / 45 / 60 / 90 min |
| Apartment (ADS) | Flat entries | Single-leaf timber | 20 / 45 / 60 / 90 min |
| Institutional (SDS / HPS) | Schools and hospitals | Single + unequal double leaf | 20 / 45 / 60 / 90 min |
| Metal (MFR) | Industrial openings | Steel leaf, panic bar | 20 / 45 / 60 / 90 min |
Ratings are catalogue values per standard; the tested build, frame and ironmongery ship with the quotation.
Certification
CE attestation, EN 14351-1.
The aluminium doors and windows in this range carry an attestation of conformity under Regulation (EU) No 305/2011, the Construction Products Regulation, tested to EN 14351-1:2006+A2:2016. Certificate M.2024.206.C101817 was issued by UDEM in June 2024 and runs to June 2029. It covers model numbers 93 through 204, including the 110 and 126 window lines.
Tell us the opening and the application.
Opening size, application and the rating you are specifying against are enough to start. We reply with the matching line, a quotation and the dimensional pack.
