Market · Australia
112 Thermal-Break Casement for Australia
The 112 Series Thermal-Break Casement Window is configured here for Australia. The figures below are the published catalogue specification of the series; the market section covers what projects in Australia add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
112 Series Thermal-Break Casement Window · Australia
112 Series Thermal-Break Casement Window
The 112 mm module · five-chamber body, flat profile line. The complete configuration, glass options and finish list are on the window series page.
- Opening

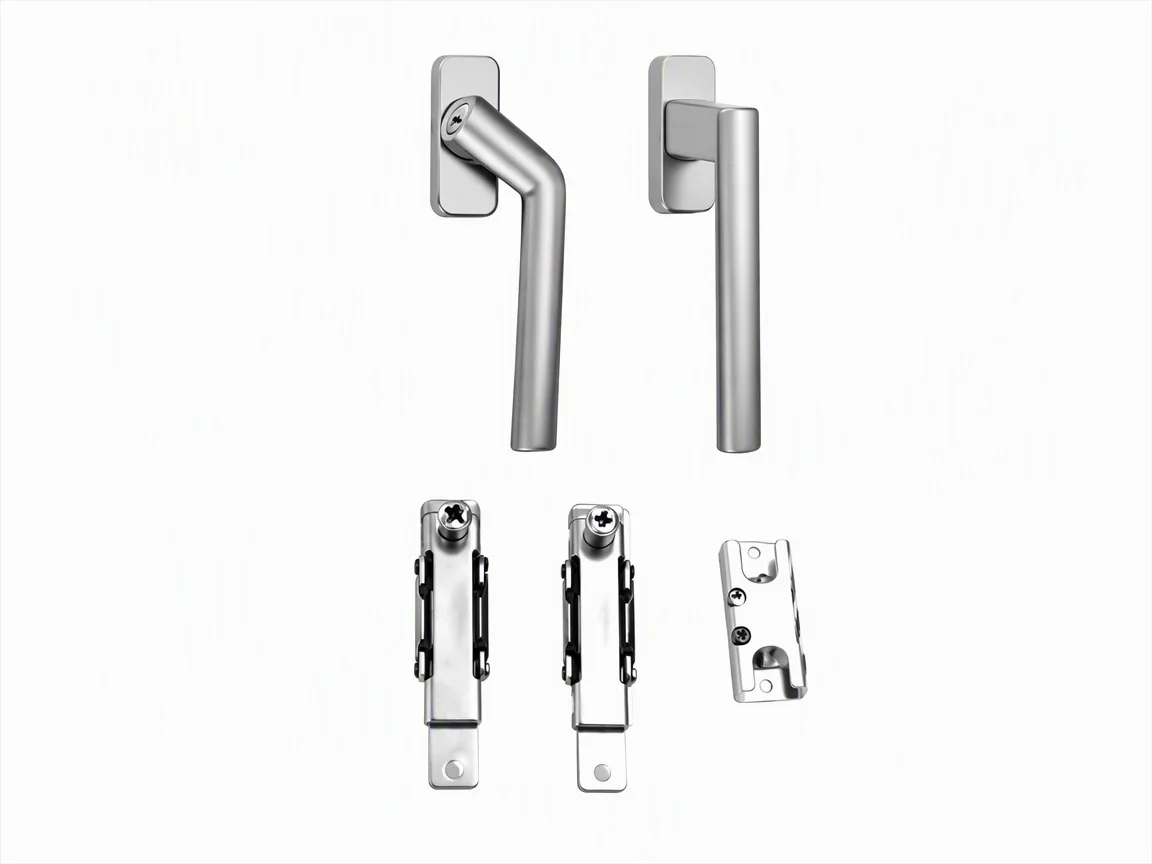

- Hinged sash, multi-point lock
- Profile depth
- 112 mm

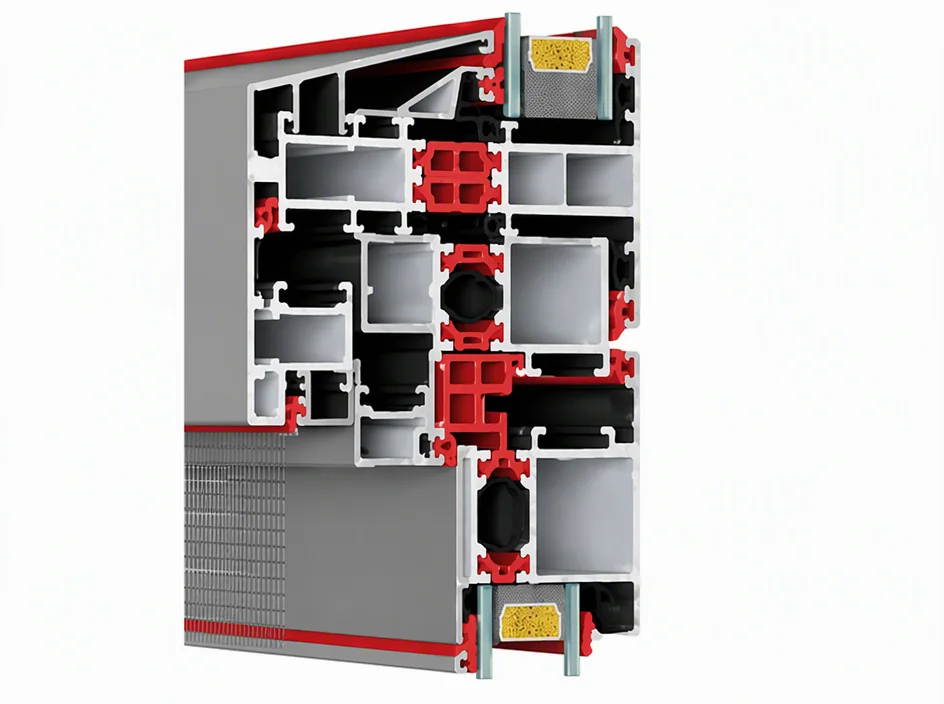

- Chamber structure
- 5 chambers, polyamide thermal-break bridge
- Wall thickness
- 2.0 mm
- Insulating glass
- 5 mm - 20 A - 5 mm · single / double / triple
- Sealing
- EPDM foam gaskets, open drainage
- Insect screen
- High-transparency mesh, standard
- Standard finishes
- Thermal transfer: sand grey, coffee (ext.) · metallic grey, sand grey (int.) · RAL and two-tone on request
- Dimensional pack
- Supplied with quotation
Engineering
6063-T5 A-grade primary aluminium · high strength, high crack resistance
Multi-chamber profile body: layered sound insulation, thermal blocking, higher pressure resistance
5 mm insulating glass with integrated bent spacer bars
Thermal-break design forming an effective cold/hot bridge barrier, cutting overall energy use
High-transparency, rust- and corrosion-resistant insect screen · better daylight, stronger insect protection
EPDM foam gaskets, aging-resistant, raising the sealing and water-tightness grades
Drainage design for fast water discharge and easy cleaning
Low-profile glazing bead resists dust build-up, widens the sightline and lifts the wind-load index
What Australian spec writers check
The Australian regime is built on testing, not on brand claims. AS/NZS 1170.2 sets the regional wind-load classification, AS 2047 defines how window and door assemblies are tested against wind load, and AS 1288 classifies the glazing itself. A cyclone-rated specification must therefore state the zone class, the tested configuration and the glazing classification for the exact module size.
Adam Alux does not hold AS 2047 test certificates. Engineering against your zone and module schedule is confirmed at quotation, and a finished test window or door can be produced before the production run.
Shipping to Australia
Modules travel to the major Australian ports in export-standard containers, packed upright with edge protection. The container count for your schedule depends on frame depth and glass build-up, so the loading plan comes with the quotation.
Transit and port handling are confirmed per shipment. For coastal projects, the fluorocarbon and anodised finish lines are the standard shortlist against salt-air exposure.
Projects in Australia
commercial · day scene
Commercial hall, dark timber
Commercial hall frontage in dark timber with a deep cantilevered canopy.
villa · day scene
Two-storey villa, two-tone cladding
Wide two-storey villa in white and graphite with a full glass frontage.
villa · day scene
House with deep eave, timber screens
A wide overhanging roof shades sliding doors that open the living area onto a timber deck.
FAQ
Frequently asked
Do your aluminium windows and doors ship to Australia?
Yes. Modules ship to the major Australian ports in export-standard containers, with the loading plan for your schedule included in the quotation.
How do you handle cyclone zone specifications?
The zone class and the module schedule drive the specification. Engineering and glazing classification are confirmed at quotation against the AS 2047 and AS 1288 requirements, with a test unit available before production.
What insulating glass is standard on the 112 series?
5 mm-20 A-5 mm insulating glass, the same build-up as the 110 line · with single, double and triple glazing configurations available.
How does the 112 differ from the 110 series 2.0?
The 112 adds 2 mm of profile depth and a flat profile line to the 110 module, at the same 2.0 mm wall and the same standard 20 A glass build-up; the 110 2.0 keeps the 110 mm module for projects that must hold the existing layout.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for Australia, with the full dimensional pack on PDF and CAD on request.
