40 Heavy-Duty Sliding Door for Australia
The 40 Ultra-Sealed Heavy-Duty Sliding Door is configured here for Australia. The figures below are the published catalogue specification of the series; the market section covers what projects in Australia add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
40 Ultra-Sealed Heavy-Duty Sliding Door · Australia
40 Ultra-Sealed Heavy-Duty Sliding Door
The ultra-sealed heavy line of the sliding range: a compact 40 mm frame, a stainless-steel rail and five catalogue finishes. The complete configuration, glass options and finish list are on the door series page.
- Opening
- Horizontal slide, heavy-duty sash
- Profile series
- 40 ultra-sealed system, per catalogue section drawings
- Profile section
- 40 mm frame width · 63 / 88 / 100 mm section depths
- Aluminium
- 6063-T5 primary aluminium
- Corner joinery
- 45° mitered joints
- Glass (standard)
- Automotive-grade tempered, sound and thermal rated
- Track
- Stainless-steel rail, wear- and corrosion-resistant
- Sash insert options

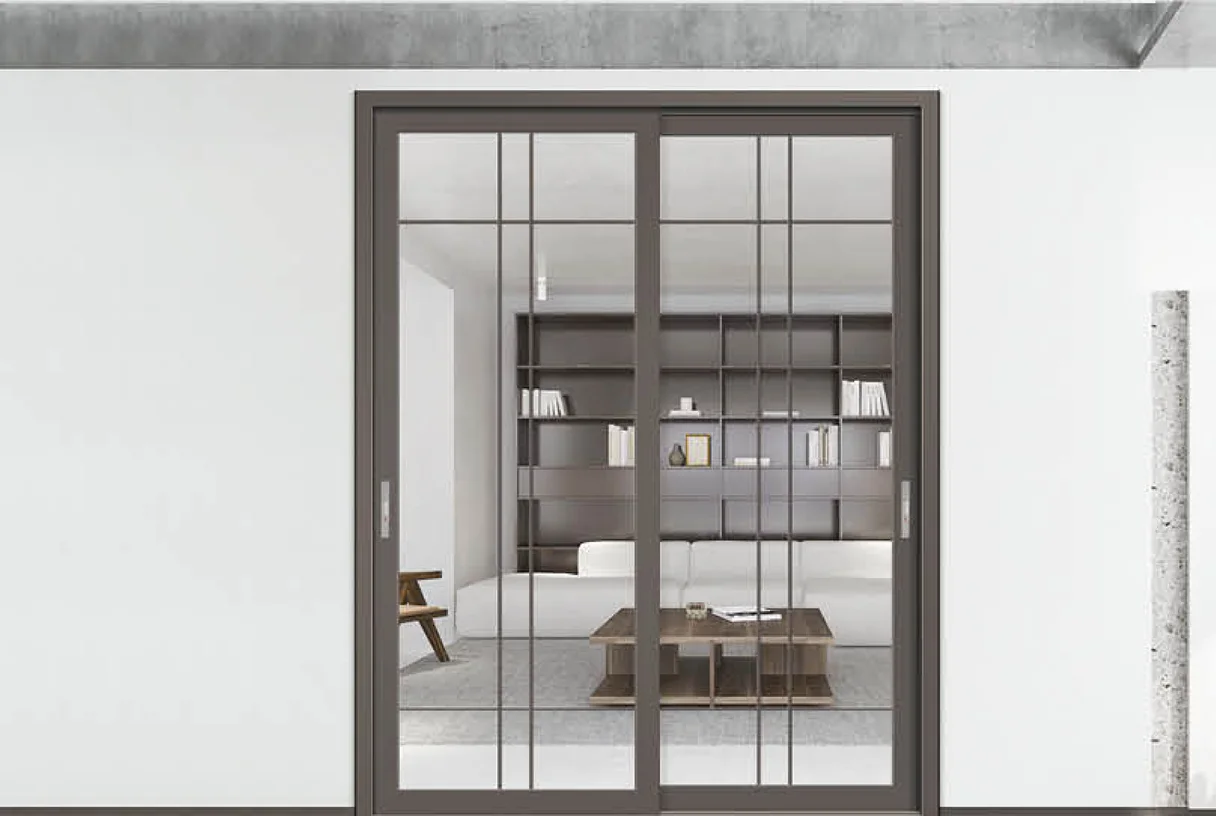

- Clear glass · grille bars · decorative inlays
- Standard finishes
- Jazz black · jazz moonlight grey · fluorocarbon grey · fluorocarbon metal coffee · Brazilian pear wood
Engineering
6063-T5 primary aluminiumThe catalogue builds the frame from 6063-T5 national-standard primary aluminium, chosen for toughness, high strength and resistance to cracking.
Compact frame, broader viewThe catalogue draws the frame and sash compact, so each opening carries more glass and the sight-line stays low-profile across the room.
Automotive-grade tempered glassEvery sash leaves the factory with automotive-grade tempered glass, which the catalogue lists for sound insulation, thermal comfort and safety.
Stainless-steel guide railThe sash rides a stainless-steel guide rail. The catalogue cites it for wear and corrosion resistance, a long service life, strong load capacity and no derailment.
What Australian spec writers check
The Australian regime is built on testing, not on brand claims. AS/NZS 1170.2 sets the regional wind-load classification, AS 2047 defines how window and door assemblies are tested against wind load, and AS 1288 classifies the glazing itself. A cyclone-rated specification must therefore state the zone class, the tested configuration and the glazing classification for the exact module size.
Adam Alux does not hold AS 2047 test certificates. Engineering against your zone and module schedule is confirmed at quotation, and a finished test window or door can be produced before the production run.
Shipping to Australia
Modules travel to the major Australian ports in export-standard containers, packed upright with edge protection. The container count for your schedule depends on frame depth and glass build-up, so the loading plan comes with the quotation.
Transit and port handling are confirmed per shipment. For coastal projects, the fluorocarbon and anodised finish lines are the standard shortlist against salt-air exposure.
Projects in Australia
villa · day scene
Coastal house, full-height glazing
A raised concrete deck and full-height glazing turn the elevation toward the water, under a deep shaded veranda.
apartment · day scene
Apartments, angled sunshades
Pale render with dark metal balcony bands and angled sunshades over floor-to-ceiling framed windows.
villa · day scene
Terrace house, glass rear extension
The original brick frontage stays intact, with a slim-profile aluminium and glass extension reading as a separate volume.
FAQ
Frequently asked
Do your aluminium windows and doors ship to Australia?
Yes. Modules ship to the major Australian ports in export-standard containers, with the loading plan for your schedule included in the quotation.
How do you handle cyclone zone specifications?
The zone class and the module schedule drive the specification. Engineering and glazing classification are confirmed at quotation against the AS 2047 and AS 1288 requirements, with a test unit available before production.
What is the 40 ultra-sealed heavy-duty sliding door?
It is the heavy line of our sliding range: a horizontal slide on 6063-T5 primary aluminium, with a 40 mm frame, a stainless-steel guide rail and five catalogue finishes.
What section sizes does the 40 use?
The catalogue section drawings show a 40 mm frame width with 63, 88 and 100 mm section depths, plus the head track and sash groups in the assembly drawing.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for Australia, with the full dimensional pack on PDF and CAD on request.
