Market · Southeast Asia
Dingrui Entrance Door for Southeast Asia
The Dingrui High-End Art Entrance Door is configured here for Southeast Asia. The figures below are the published catalogue specification of the series; the market section covers what projects in Southeast Asia add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
Dingrui High-End Art Entrance Door · Southeast Asia
Dingrui High-End Art Entrance Door
The high-end art line of the entrance range: a faceted or carved art leaf on a sealed thermal-break frame. The complete configuration, glass options and finish list are on the door series page.
- Opening
- Single-leaf swing, with or without a fixed sidelight
- Door style
- High-end art leaf: faceted geometric face or carved cast texture
- Structural build
- Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · thermal-break profile · automotive-grade sealing strip · PA66 insulation strip · aluminium or wooden backboard
- Leaf face
- Faceted geometric panel · carved cast texture · vermilion copper-cast face
- Frame
- Aluminium with thermal-break profiles
- Glazing
- Tempered glass sidelight where the catalogue draws it
- Performance (catalogue ratings)
- Sound 5 · thermal 8 · water 8 · air 8 · wind 9
- Hardware
- L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks with motor linkage · H3 horizontal handle
- Finishes
- No catalogue colour card · confirmed against samples on request
Engineering

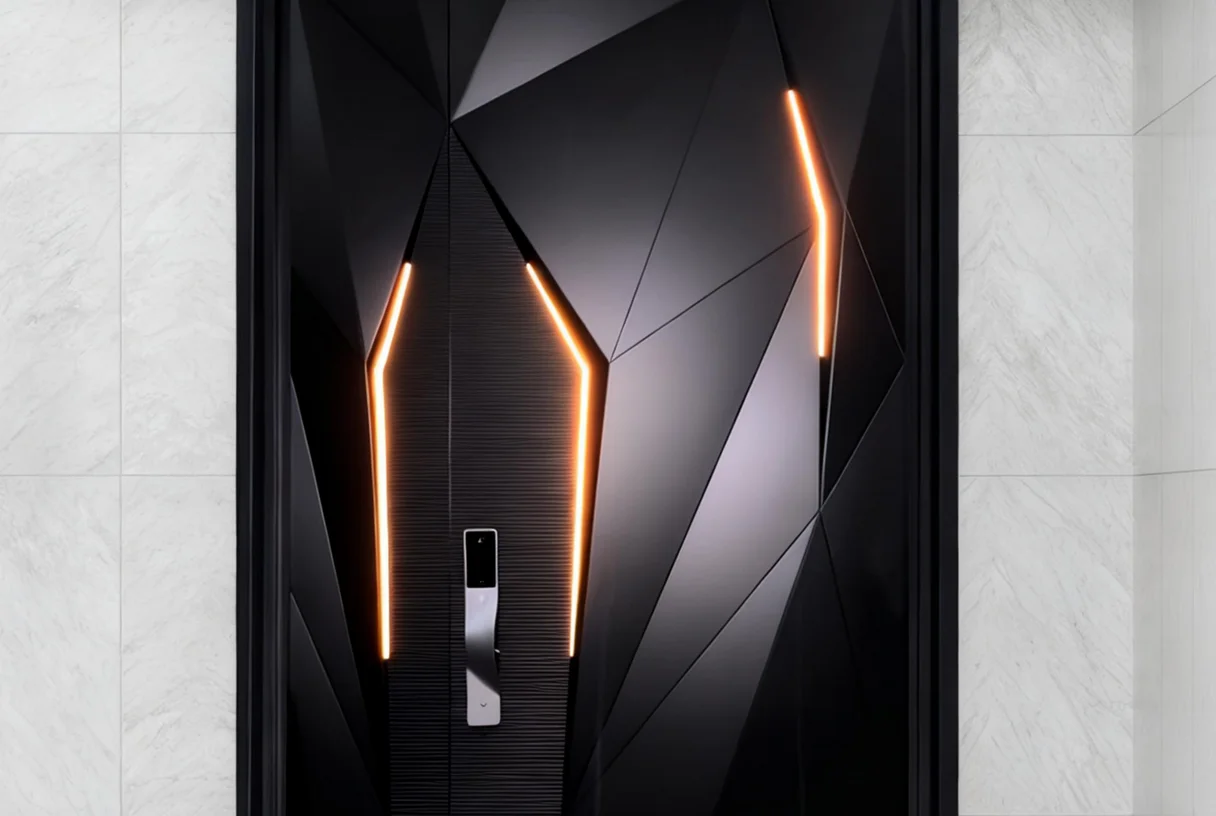

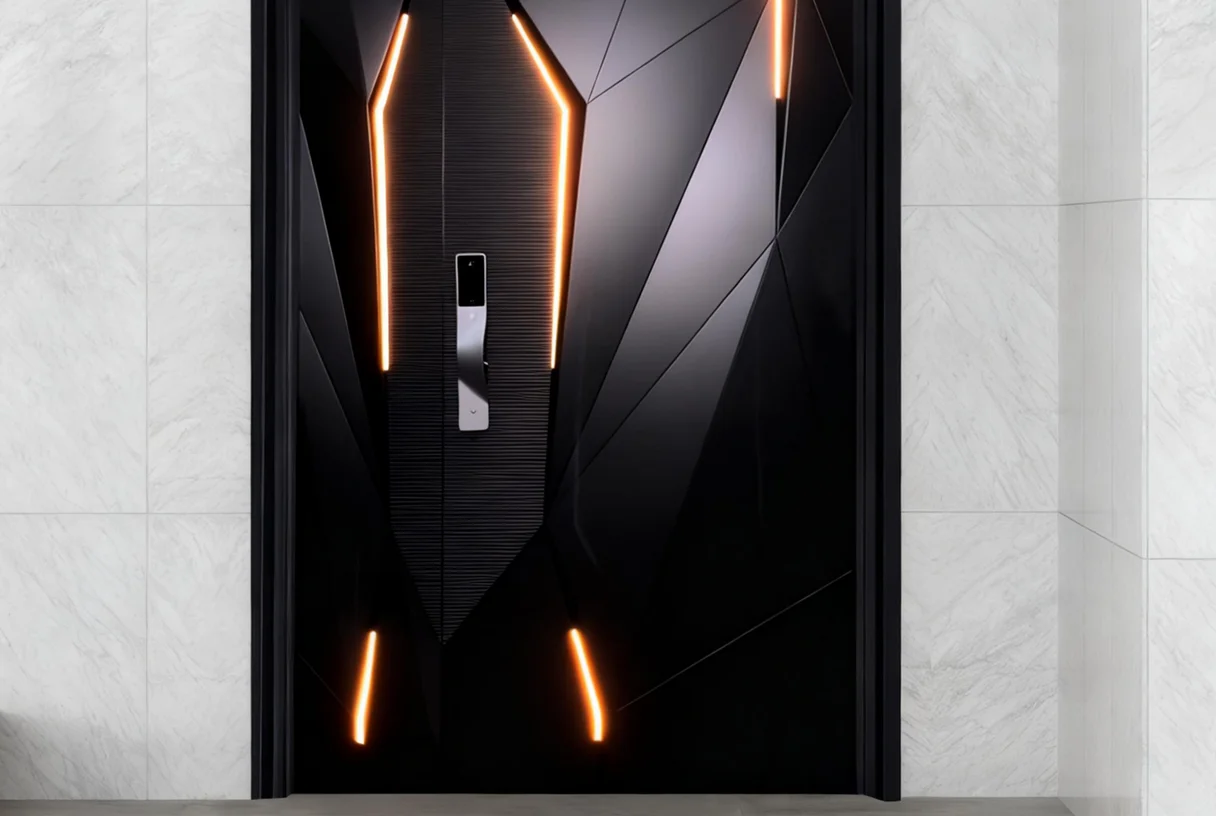

High-end art leafThe catalogue draws the series as an art leaf, a faceted geometric face or a carved cast texture, lit by recessed light strips in the M-001 and M-002 pieces.
Vermilion copper-cast faceThe catalogue shows a vermilion copper-cast leaf with carved detail, the piece it ties to the dignity of noble lineages and the auspiciousness of the East.
Sealed entrance buildThe leaf is built on a thermal-break aluminium frame with an automotive-grade sealing strip and PA66 insulation strips, the build the catalogue names across the entrance range.
Smart-lock readyThe hardware pages list the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks with motor linkage, plus the H3 horizontal handle.
Heat, humidity and salt air
Southeast Asian sites push three things at aluminium: sustained heat, high humidity and, on the coast, salt spray. The finish carries the corrosion load, which is why fluorocarbon and powder lines are the standard shortlist for coastal work, with EPDM sealing and open self-cleaning drainage handling the moisture inside the section.
Glazing is specified per project: single glass where cooling load is the driver, insulating units where comfort is. The build-up comes back on the quotation against your climate and the budget line for the envelope.
Ports and logistics for the region
The main ports in the region are covered by standard export packing: modules travel upright, edge-protected, in 20 ft or 40 ft containers, and the loading plan for your opening mix ships with the quotation.
Transit times vary by origin port and destination, so they are confirmed per shipment rather than quoted from a fixed table.
Reference projects in comparable climates
hotel · day scene
Resort hotel, pool frontage
Low-rise blocks set behind an infinity pool, with framed glazing opening the ground floor to the deck.
apartment · day scene
Apartments, recessed balconies
White volumes with deep recessed balconies and vertical sunshades cut the direct sun before it reaches the glass.
villa · day scene
Townhouse, timber screens
A compact two-storey volume around a planted courtyard, with timber screens filtering the street side.
FAQ
Frequently asked
Which finishes hold up in coastal Southeast Asia?
Fluorocarbon and anodised lines are the standard shortlist against salt spray. RAL matching and two-tone exterior/interior combinations are available on request.
Do you ship to the Philippines and Malaysia?
Yes. Modules ship to ports across the region in export-standard containers, and the loading plan with the transit confirmation comes with the quotation.
What is the Dingrui high-end art entrance door?
It is the high-end art line of the AURORA entrance range, printed from catalogue page 007 as section 007P, with six pieces from M-001 to M-006 drawn as a faceted or carved art leaf on a sealed thermal-break frame.
What is the art leaf made of?
The leaf face is a faceted geometric panel or a carved cast texture, and the M-006 piece is a vermilion copper-cast leaf with carved detail. It sits on a thermal-break aluminium frame.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for Southeast Asia, with the full dimensional pack on PDF and CAD on request.
